Quick Details
-
Power:
-
110-440KW
-
Dimension(L*W*H):
-
depends on the model
-
Weight:
-
200 kg
-
Product name:
-
VSI sand making machine
-
Installation:
-
Engineer Guide
-
Use:
-
Mining machinery, construction machinery
-
Applicaton:
-
Stone Process
-
COLOR:
-
Customizable
-
certificate:
-
CE ISO
-
After Warranty Service:
-
Video technical support
-
After sale Service:
-
Technology Support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GMG
-
Voltage:
-
380V
-
Power:
-
110-440KW
-
Dimension(L*W*H):
-
depends on the model
-
Weight:
-
200 kg
-
Product name:
-
VSI sand making machine
-
Installation:
-
Engineer Guide
-
Use:
-
Mining machinery, construction machinery
-
Applicaton:
-
Stone Process
-
COLOR:
-
Customizable
-
certificate:
-
CE ISO
-
After Warranty Service:
-
Video technical support
-
After sale Service:
-
Technology Support

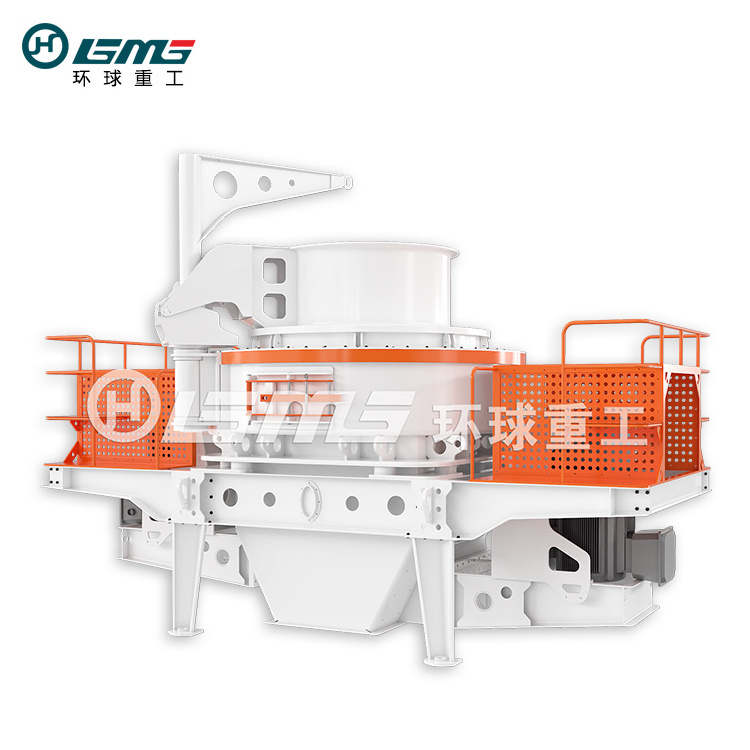

New impact sand making plant crushing machine ore sand maker for sale
VSI sand-making machine is a new type of sand-making equipment at present. Its structure has been upgraded, its working performance has been further improved, and its sand-making function is also equipped with shaping function. Both the output of sand-forming and the quality of sand and stone have been greatly improved, is the current sand and gravel equipment in the rising star. Can Be used for metal non-metallic ore materials, building materials, artificial sand as well as a variety of metallurgical slag crushing, sand making, shaping.
|
Model |
VSI-7611 |
VSI-8518 |
VSI-9526 |
VSI-1140 |
|
|
Capacity(t/h) |
Cascade and Center Feeding |
120-180 |
200-260 |
300-380 |
450-520 |
|
|
Center Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
|
Feeder Opening Size (mm) |
Soft Material |
≤35 |
≤40 |
≤45 |
≤50 |
|
|
Hard Material |
≤30 |
≤35 |
≤40 |
≤45 |
|
Rotation Speed |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
|
|
Power of the Double Motors(kw) |
110-150 |
180-220 |
264-320 |
400-440 |
|
|
Overall Dimension(mm) |
3700x2150x2100 |
4140x2280x2425 |
4560x2447x2778 |
5000X2700X3300 |
|
