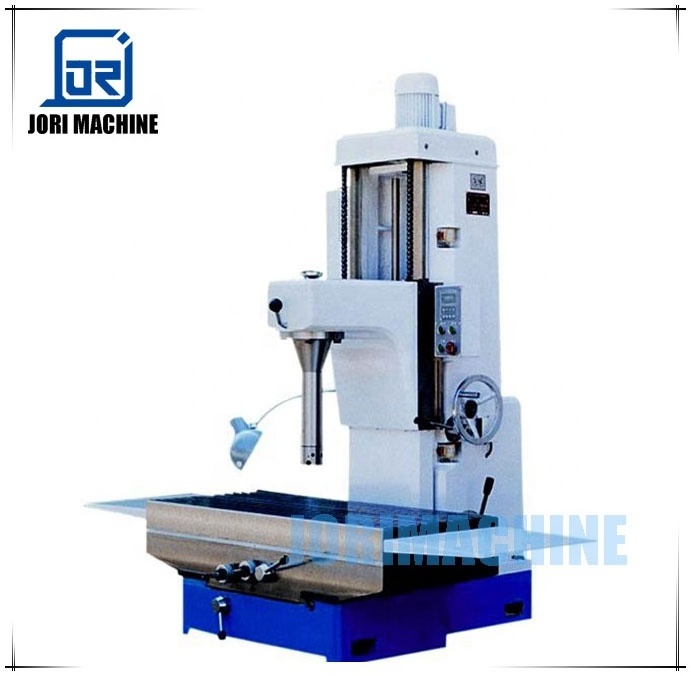

T8018A china low price engine block boring cylinder head boring machine

T8018A china low price engine block boring cylinder head boring machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $7800

≥5 Pieces

US $7000

≥20 Pieces

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

G.W::: 2000kg

Range of boring diameter:: 30-180mm

Color:: White

Max boring depth:: 450mm

Spindle of travel:: 500mm

Name:: china low price engine block boring cylinder head boring machine

Quick Details

Place of Origin:: China

Product type:: Cylinder head boring

Packaging Details:: wooden cases

G.W::: 2000kg

Range of boring diameter:: 30-180mm

Color:: White

Max boring depth:: 450mm

Spindle of travel:: 500mm

Name:: china low price engine block boring cylinder head boring machine

Product Description

Product Application

The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
T8018A: mechanical-electronic drive and spindle speed frequency changed speed variation.
T8018B: mechanical drive.
T8018C: used for processing special heavy motor cylinders.

Model	T8018A	T8018B	T8018C
Range of boring diameter	Φ30mm~Φ180mm			Φ42mm~Φ180mm
Max boring depth	450mm			650mm
The max.travel of spindle	500mm			800mm
The distance from the central line of the spindle to the body	320mm			315mm
The Rotational speed of spindle	140-610r/min	175,230,300,350,460,600
Spindle feed	0.05, 0.10, 0.20
The high speed of spindle	2.65m/min
Table size	1200x500mm
Table travel	Crosswise 100mm Lengthwise 800mm			Crosswise 150mm Lengthwise 1500mm
Machine power	3.75KW			3.75kw
