Quick Details
-
Model Number:
-
WJ41H-16C WJ41H-25C WJ41W-16P WJ41W-25P
-
Brand Name:
-
Shangdian
-
Product name:
-
Cast Steel Flange Bellows Dn25 40 50 80 Heavy Type Globe Valve
-
Material:
-
Cast Steel/carbon steel
-
Connection:
-
Flange
-
Size:
-
DN15-DN250
-
Medium:
-
Oil Water Gas Steam
-
Pressure:
-
1.6MPa 2.5MPa 4.0MPa
-
Standard or Nonstandard:
-
Standad
-
Function:
-
Commercial Appliance
-
Work Temperature:
-
≤425℃
-
Body material:
-
Cast Steel/carbon steel
Quick Details
-
Port Size:
-
DN15-DN250
-
Warranty:
-
1 Years
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
WJ41H-16C WJ41H-25C WJ41W-16P WJ41W-25P
-
Brand Name:
-
Shangdian
-
Product name:
-
Cast Steel Flange Bellows Dn25 40 50 80 Heavy Type Globe Valve
-
Material:
-
Cast Steel/carbon steel
-
Connection:
-
Flange
-
Size:
-
DN15-DN250
-
Medium:
-
Oil Water Gas Steam
-
Pressure:
-
1.6MPa 2.5MPa 4.0MPa
-
Standard or Nonstandard:
-
Standad
-
Function:
-
Commercial Appliance
-
Work Temperature:
-
≤425℃
-
Body material:
-
Cast Steel/carbon steel
Product Information
Bellows sealed valve is the valve with bellows as stem sealing components, often used where need strict requirements for stem sealing such as the occasion for high vacuum or nuclear industry. The bellows can eliminate the impact of back pressure fluctuations on the valve and protect springs and other internals from corrosion and leakage by flow media. Instead of stuffing box or worked with stuffing box, the bellows are welded with a cover or other parts by rolling
welding or argon arc welding. Our mainly supply bellows sealed globe valves and bellows gate valves. Our bellow sealed valve is available from ANSI 1500 class up to 2500 pressure.
welding or argon arc welding. Our mainly supply bellows sealed globe valves and bellows gate valves. Our bellow sealed valve is available from ANSI 1500 class up to 2500 pressure.
|
Model
|
|
WJ41H-16C
|
WJ41H-25C
|
WJ41W-16P
|
WJ41W-25P
|
|||
|
Working Pressure(MPa)
|
|
1.6
|
2.5
|
1.6
|
2.5
|
|||
|
Applicable Temperature(℃)
|
|
≤425
|
|
≤150
|
|
|||
|
Applicable Medium
|
|
Non-corrosive media
|
|
Corrosive media
|
|
|||
|
Material |
Valve body/cover/gate plate
|
carbon steel
|
|
Chromium nickel titanium stainless steel
|
|
|||
|
|
valve stem
|
chromium stainless steel
|
|
Chromium nickel titanium stainless steel
|
|
|||
|
|
Sealing surface
|
Chromium stainless steel or carbon steel hardfacing alloy
|
|
Chromium nickel titanium stainless steel
|
|
|||
|
|
Filling
|
Flexible graphite or stainless steel wire clip flexible graphite
|
|
Flexible graphite or stainless steel wire clip flexible graphite
|
|
|||
|
|
Bellow
|
Austenitic stainless steel
|
|
Austenitic stainless steel
|
|
|||

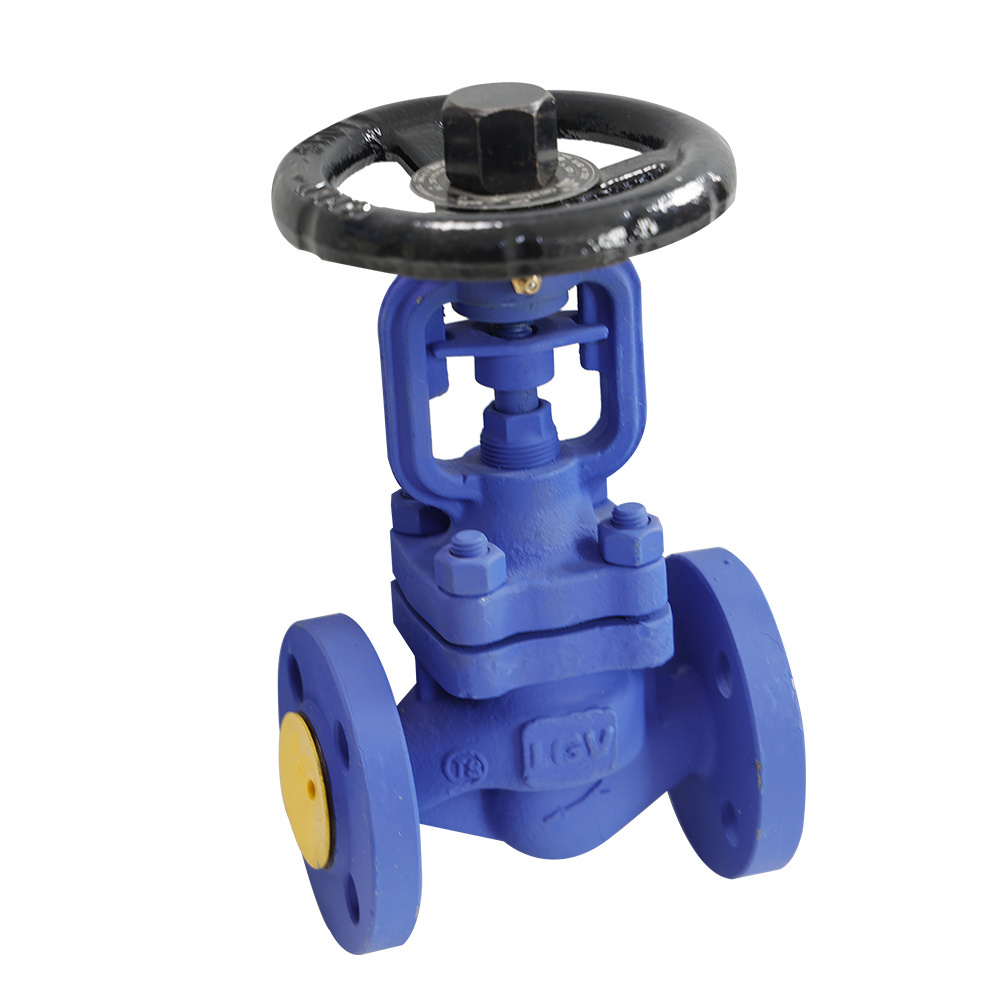

Product Show
Product Feature
1. Bellows seal design offers reasonable structure, excellent performance and long service life;
2. Sealing surface welding Co hard alloy, good wear resistance, corrosion resistance and abrasion resistance;
3. Double seal design (bellows + packing) to prevent leakage of media, even if the bellows fail, stem packing will be avoided;
4.Bellows seal stem completely eliminates the common valve stem packing seal aging quickly leak shortcomings to ensure zero stem leakage.
2. Sealing surface welding Co hard alloy, good wear resistance, corrosion resistance and abrasion resistance;
3. Double seal design (bellows + packing) to prevent leakage of media, even if the bellows fail, stem packing will be avoided;
4.Bellows seal stem completely eliminates the common valve stem packing seal aging quickly leak shortcomings to ensure zero stem leakage.
Product Application
Widely applicable in various fields, such as chemical industry, power plants, water management groups, etc.
