Quick Details
-
Voltage:
-
380V, 380V/50HZ
-
Dimension(L*W*H):
-
1870*800*1700 (L*W*H)
-
Weight:
-
550KG, 550kg
-
Working Pressure:
-
1.5 Mpa
-
Marketing Type:
-
Hot Product 2024
-
Model:
-
ZV-15
-
Motor power:
-
15KW
-
Pressure:
-
1.5 Mpa
-
Air delivery:
-
1.5(m³/min)
-
Cooling way:
-
Air Cooling
-
Size:
-
1870*800*1700
-
Outlet Pipe Diameter:
-
DN20
-
Keywords:
-
integrated air compressor
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SZbaofeng
-
Model Number:
-
ZV-15
-
Voltage:
-
380V, 380V/50HZ
-
Dimension(L*W*H):
-
1870*800*1700 (L*W*H)
-
Weight:
-
550KG, 550kg
-
Working Pressure:
-
1.5 Mpa
-
Marketing Type:
-
Hot Product 2024
-
Model:
-
ZV-15
-
Motor power:
-
15KW
-
Pressure:
-
1.5 Mpa
-
Air delivery:
-
1.5(m³/min)
-
Cooling way:
-
Air Cooling
-
Size:
-
1870*800*1700
-
Outlet Pipe Diameter:
-
DN20
-
Keywords:
-
integrated air compressor

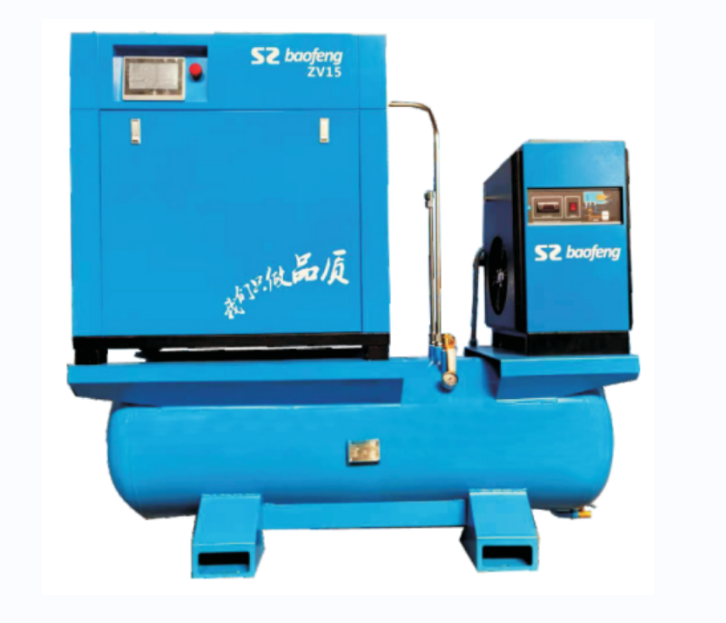

High-pressure laser cutting special integrated air compressor
Baofeng series of integrated air compressor for laser cutting is designed for customer convenience and space saving.
The unit has beautiful appearance and compact structure.It has the features of pipeless installation, easy to move, high efficiency and energy saving, no water and no oil, ready to use.
Baofeng ZV series adopts high efficiency screw mainframe and fully enclosed permanent magnet motor with German technology. Better reliability, higher efficiency, longer life and lower noise.On average, it can reduce the compressor's energy consumption by 50% and life cycle cost by 37%.
Baofeng ZV Series Laser Cutting Machines
Special neodymium-iron-boron rare-earth permanent magnets with high temperature resistance up to 180°C. 50 percent higher than similar products in China.50% higher than similar products in China. Wider adjustment range and higher efficiency.
Baofeng series of integrated unit for laser cutting is designed for customer convenience and space saving.
Beautiful appearance, compact structure of the unit.With no pipeline installation, easy to move, high efficiency and energy saving, no water, no oil and ready to use the characteristics.
Baofeng ZV series adopts German technology of high-efficiency screw mainframe and fully enclosed permanent magnet motor. Better reliability, higher efficiency, longer life, lower noise, and can reduce energy consumption by 50% on average.Average 50% reduction in energy consumption and 37% reduction in compressor life cycle costs.
Baofeng ZV Series Laser Cutting Machines
Selection of special neodymium-iron-boron rare-earth permanent magnet material, high temperature resistance up to 180 ℃, compared with similar products in China to improve 50%.Compared with similar products in China, it is 50% higher, with a wider adjustment range and higher temperature.Wider adjustment range and higher efficiency.
|
NO
|
ITEM
|
DATA
|
|
|
|
|||
|
1
|
Model
|
ZV-15
|
|
|
|
|||
|
2
|
Power
|
15kw
|
|
|
|
|||
|
3
|
Pressure
|
0.8Mpa
|
1.0Mpa
|
1.3Mpa
|
1.5Mpa
|
|||
|
4
|
Air delivery
|
2.3 (m³/min)
|
2.0(m³/min)
|
1.7 (m³/min)
|
1.5 (m³/min)
|
|||
|
5
|
Dimensions
|
1870*800*1700L*W*H(mm)
|
|
|
|
|||
|
6
|
Cooling method
|
air cooled
|
|
|
|
|||
|
7
|
Outlet pipe diameter
|
DN20
|
|
|
|
|||
|
8
|
Weight
|
550kg
|
|
|
|
|||
Why choose SZbaofeng
Certifications and Patents
FAQ
Q1: Are you factory or Trade Company?
A1: We are factory of Suzhou, Jiangsu.
Q2:Warranty terms of your machine?
A2: 1 year warranty for the machine,technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes.We provide spare parts for daily maintenance.
Q4: How long will you take to arrange production?
A4: Deliver standard goods within 3-15days, Other customized goods need to be decided.
Q5: How to pay?
A5: We support T/T or LC. Or delivery pay by Alibaba.
