Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Caijing
-
Product name:
-
SPI I2C 16x2 Alphanumeric lcd displays module
-
Color:
-
Yellow green
-
Voltage:
-
3V
-
Backlight:
-
LED backlight
-
Interface:
-
Serial
-
Viewing area:
-
99X24mm
-
LCD type:
-
STN yellow green
-
LED backlight color:
-
yellow green
-
Display mode:
-
positive
Quick Details
-
Type:
-
STN
-
Display Size:
-
16x2
-
Supplier Type:
-
manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Caijing
-
Product name:
-
SPI I2C 16x2 Alphanumeric lcd displays module
-
Color:
-
Yellow green
-
Voltage:
-
3V
-
Backlight:
-
LED backlight
-
Interface:
-
Serial
-
Viewing area:
-
99X24mm
-
LCD type:
-
STN yellow green
-
LED backlight color:
-
yellow green
-
Display mode:
-
positive
sunlight readable big size SPI I2C 16x2 Alphanumeric lcd displays module with LED backlight STN COB for instrument meters
Number of characters: 16 characters x 2 lines
Display types: COB STN/FSTN, blue/gray/yellow green and negative/positive
Duty: 1/16
Bias: 1/5
Input voltages: 5.0/3.3V DC
Controller: AIP31068
Connector: zebra
LED backlight colors: white, blue and yellow green
Operating temperature: 0 to 50/-20 to 70°C
Storage temperatures: -10 to 60/-30 to 80°C
Module dimensions: 122.0 x 44.0 x 13.2mm
VA: 99.0 x 24.0mm
AA: 94.84 x 20.0mm
Character dimensions: 4.84 x 9.66mm
Dot dimensions: 0.92 x 1.1mm
Dot pitch: 0.06 x 0.06mm

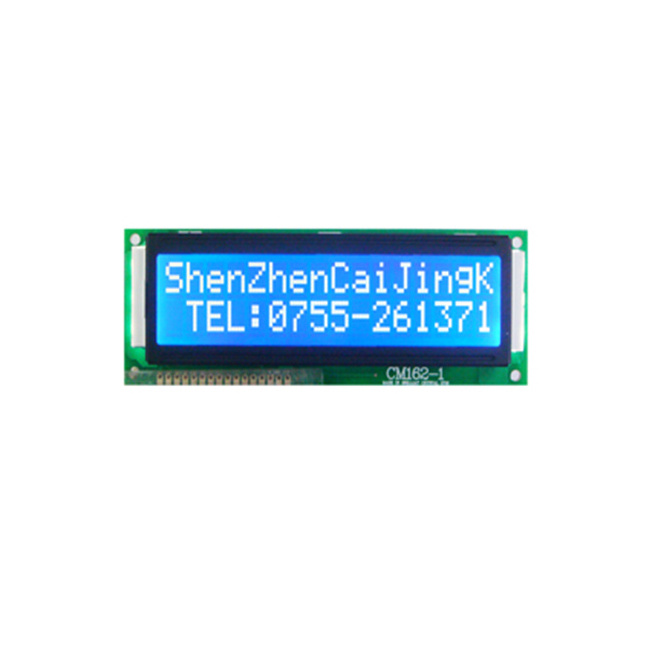

SPI I2C 16x2 Alphanumeric lcd displays module
SPI I2C 16x2 Alphanumeric lcd displays module
SPI I2C 16x2 Alphanumeric lcd displays module
Our advantage and service
15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free sample for some styles
Shenzhen Brilliant Crystal Technologic Co.,ltd
Bella Zou
Skype:cjsz2002
QQ:2829642402
cjsz2002#hotmail.com
Celand whatsapp:+86-15889302786
Tel:+86-0755-29485608
Website:www.cjlcd.com & www.cj86.com
https://szcmlcd.1688.com/
Related Product for 16x1 character lcd module
About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.
| Display Content | Model No. | Outline Size(mm) | V.A(mm) | Dots Size | Controller | Voltage | Interface |
| 8x2 | CM802-1 | 40×35×7 | 28×14 | 0.5×0.5 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-2 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 8x2 | CM802-6 | 58×32×13.5 | 38×16 | 0.56×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 12x1 | CM121-1 | 103×35×11 | 76×25 | 1×1.4 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-1 | 80×36×12 | 64×13.8 | 0.55×0.7 | SPLC780 | 5V/3V | serial/parallel |
| 16x1 | CM161-2 | 122×33×14 | 99×13 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-1 | 122×44×13.4 | 99×24 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-3 | 84×44×13.7 | 62×18 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-4 | 80×36×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-10 | 84×44×12 | 64×13.8 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-11 | 80×36×12.5 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-12 | 85×36×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-13 | 80×36×12.5 | 64.6×13.8 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-15 | 85×29×11.3 | 64.9×15.9 | 0.54×0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-17 | 85×36×14 | 62×16 | 0.55×0.65 | SPLC780 | 5V/3V | serial/parallel |
| 16x2 | CM162-36 | 80x36x11.3 | 64.9x15.9 | 0.54x0.62 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-1 | 87×60×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 16x4 | CM164-2 | 87×55×12.5 | 61.5×25 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-1 | 116×37×12.5 | 83×18.5 | 0.61×0.66 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-2 | 180×40×14.3 | 148×23 | 1.1×1.12 | SPLC780 | 5V/3V | serial/parallel |
| 20x2 | CM202-3 | 116×32.5×7.9 | 87.8×17.5 | 0.553×0.569 | SPLC780 | 5V | serial/parallel |
| 20x2 | CM9079 | 123×25×12.7 | 85×12.9 | 0.55×0.65 | SPLC780 | 5V | serial/parallel |
| 20x4 | CM204-1 | 98×60×14 | 76×26 | 0.55×0.55 | SPLC780 | 5V/3V | serial/parallel |
| 20x4 | CM204-2 | 146×62.5×13 | 123×42.5 | 0.92×1.1 | SPLC780 | 5V/3V | serial/parallel |
| 40x2 | CM402-1 | 182×33×11.5 | 154×15.8 | 0.6×0.65 | SPLC780 | 5V | serial/parallel |
| 40x4 | CM404-1 | 190×54×13.6 | 147×29.5 | 0.5×0.55 | SPLC780x2 | 5V/3V | serial/parallel |
