Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HZC
-
Input Voltage:
-
AC 220-240V
-
Output Voltage:
-
AC 220-240V
-
Output Current:
-
1.6A max.
-
Operating temperature:
-
0 to 40°C
-
Relative humidity:
-
8% to 80%
-
smart module:
-
ZigBee
-
control way:
-
multi way
-
Control:
-
ZigBee remote
-
Dimensions:
-
84*84* 57mm
Quick Details
-
Warranty(Year):
-
3-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
300W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HZC
-
Input Voltage:
-
AC 220-240V
-
Output Voltage:
-
AC 220-240V
-
Output Current:
-
1.6A max.
-
Operating temperature:
-
0 to 40°C
-
Relative humidity:
-
8% to 80%
-
smart module:
-
ZigBee
-
control way:
-
multi way
-
Control:
-
ZigBee remote
-
Dimensions:
-
84*84* 57mm
WhatsApp & Wechat :13600185897 E-mail:cindy@shyusc.com
Products Description

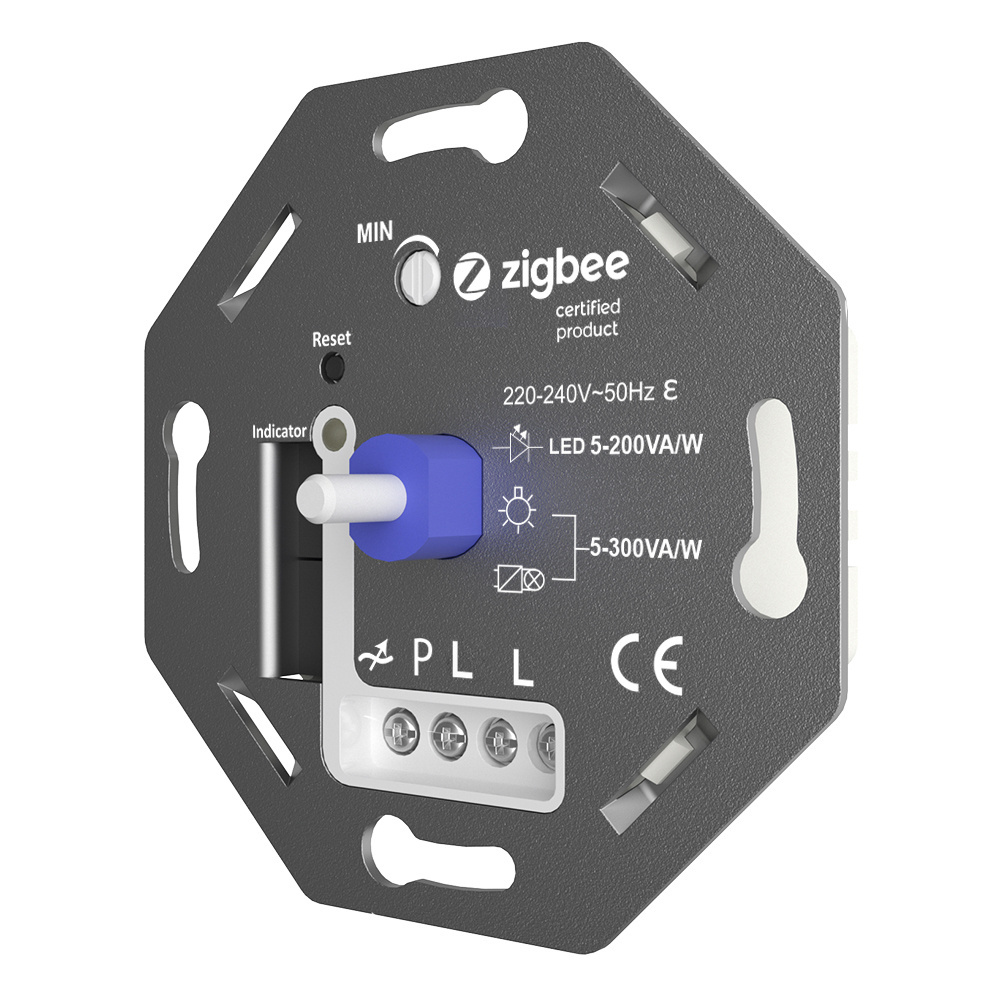

ZIGBEE LED DIMMER SWITCH
Item NO.D684E2-ZG ZIGGBE LED dimmer
• No neutral required, easy for installation.
• Smooth dimming, no flickers, no noise.
• Over-temperature, over current protection
• Soft start function to protect the lamp.
• With Min. brightness adjustment, to achieve the optimum dimming range for a particular load.
• Zigbee 3.0, can be controlled by cellphone, Google home, Amazon Alexa and multiple gateways such as Philips hue, Smartthings, etc.
• Support to restore the factory setting.
|
Rated input voltage
|
|
220-240 Vac, 50Hz
|
|
|
|||
|
Power range
|
|
5-200W @220-240V LED
|
|
|
|||
|
|
|
5-300W @220-240V INC, HAL
|
|
|
|||
|
Type of load
|
|
LED Retrofit | Incandescent-halogen
|
|
|
|||
|
Dimming
|
|
Rotary
|
|
|
|||
|
Ambient temperature (Ta)
|
|
35 °C
|
|
|
|||
|
Dimension
|
|
70.5mm*70.5mm*45.5mm
|
|
|
|||
|
Item weight
|
|
76g
|
|
|
|||
