Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOFON
-
Model Number:
-
TILES600
-
Material:
-
glasswool, rock wool.Mineral wool
-
Surface:
-
Emulsion paint sprayed
-
Size:
-
600*600mm 1200*600mm
-
Color:
-
Smooth white, snowy mountain white
-
Thickness:
-
12mm 15mm 20mm
-
NRC:
-
0.85
-
Fireproof:
-
A2
-
Edge:
-
Square A24 E15 D24
-
Density:
-
100Kg/m3
-
Installation:
-
Ceiling grid
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEGOFON
-
Model Number:
-
TILES600
-
Material:
-
glasswool, rock wool.Mineral wool
-
Surface:
-
Emulsion paint sprayed
-
Size:
-
600*600mm 1200*600mm
-
Color:
-
Smooth white, snowy mountain white
-
Thickness:
-
12mm 15mm 20mm
-
NRC:
-
0.85
-
Fireproof:
-
A2
-
Edge:
-
Square A24 E15 D24
-
Density:
-
100Kg/m3
-
Installation:
-
Ceiling grid
Degofon
Suspended Modular Ceiling tiles
High performance system for 60x600 (2x2) grid ceilings
DEGO Manufacturing
Direct
Provide
:
- 600X600mm 600X1200mm
Square and rectangular modular tiles suitable for metal T grid suspension system
- High sound absorption (NRC = 0.85 - 0.95), Reduces noise and echoes in optimized rooms
- High fire performance (A2), Eu CE13964 certified products
- High light reflectance (LR = 0.85) Smooth and bright surface color
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- 7.2m2/ cartons , 3888m2/ 540box/40GP Thick 15mm 600X600)
- High sound absorption (NRC = 0.85 - 0.95), Reduces noise and echoes in optimized rooms
- High fire performance (A2), Eu CE13964 certified products
- High light reflectance (LR = 0.85) Smooth and bright surface color
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- 7.2m2/ cartons , 3888m2/ 540box/40GP Thick 15mm 600X600)
Product description

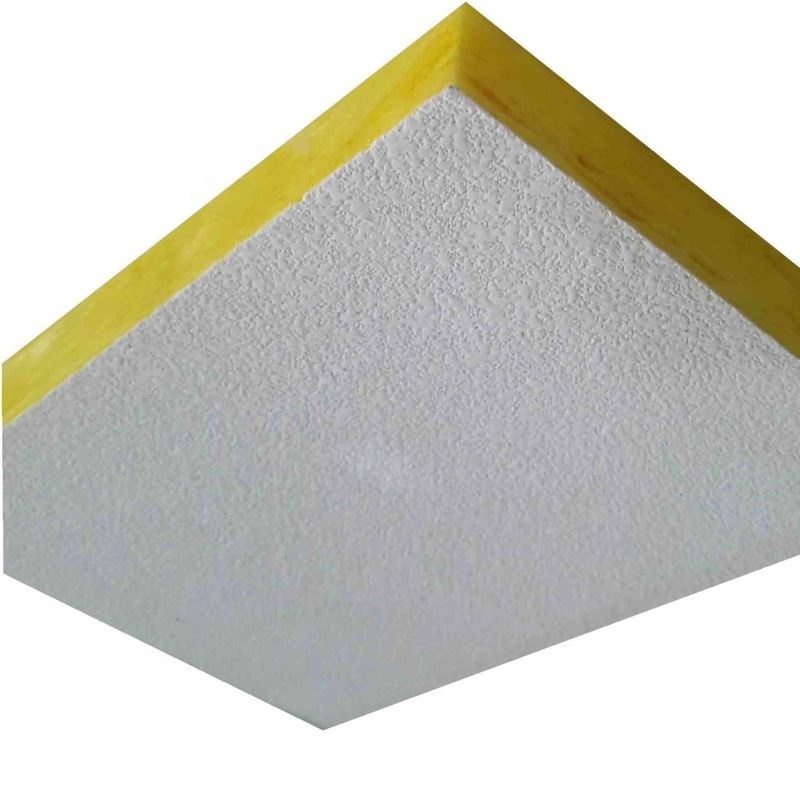

Degofon A24 is a very good quality ceiling. The glass fiber wool core material, good absorption, meets the basic requirements of a ceiling. Installed in the visual support system T-24. The panels are removable
Material.
Degofon A24
consists of glass wool core, backing, strong sealing and white surface, NCS S 0500 - N.
Application areas.
Lined system ceilings, acoustic conditioning and noise reduction in various types of buildings such as offices, schools, kindergartens, stores, etc.
Product description
Size: 595X595mm 595X1195mm
Surface: Smooth white, elegant popcorn dots
Thick:15/20/25/40mm
Edge: Closed spray
Install system: Ceiling grid (T bar )
Features & Benefits:
·Elegant lightly-textured white surface
·High sound absorption (NRC = 0.85 - 0.95)
·High fire performance
·Low light reflectance (LR = 0.4)
·Optimal design freedom thanks to a large selection of
edges (lay-in, tegular, concealed)
·Available in a variety of sizes and formats, including planks
|
MATERIAL
|
Fiberglass with acoustically transparent membrane
|
|
|
|
|||
|
SYSTEMS
|
Degofon ceiling tile, Degoacoustic buffle ceilings , acoustic clound shapes, wall panels
|
|
|
|
|||
|
SURFACE FINISHE
D
|
DEGOfactory applied acrylic latex paint,
|
|
|
|
|||
|
COLOR
|
White .black ，Custom
|
|
|
|
|||
|
SOUND ABSORPTION
|
NRC：0.85-0.9
|
|
|
|
|||
|
SIZE(s）
|
600mm×600mm×15m , 1200mm×600mm×15mm
|
|
|
|
|||
|
|
600mm×600mm×15m , 1200mm×600mm×15mm
|
|
|
|
|||
|
|
600mm×600mm×25m , 1200mm×600mm×25mm
|
|
|
|
|||
|
|
600mm×600mm×40m , 1200mm×600mm×40mm
|
|
|
|
|||
|
EDGE
|
·A15/24 Square Lay-in
|
·E 15/24 Tegular
|
|
·D24 Concealed
|
|||
|
WEIGHT
|
2.25kgs/m2Items6015
|
·3.2kgs/m2
|
|
3.5kgs/m2(THICK40)
|
|||
|
LIGHT REFLECTANCE
|
LR 0.85
|
|
|
|
|||
|
MOISTURERESISTANCE:
|
RH99
|
|
|
|
|||
|
FIRE CLASS
|
A2 -s1d0
|
|
|
|
|||
|
MILDEW RESISTANC
|
Fiberglass substrate is inherently resistantto the growth of mold and mildew.
|
|
|
|
|||
|
RECOVERABLE
|
71%
|
|
|
|
|||
|
WARRANTY
|
15Year ，
|
Useful life 50Y
|
|
|
|||
|
CERTIFICATION
|
CE Fireproof A2 ,NRC 0.95
|
|
|
|
|||
DEGOCEILING FACTORY
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
