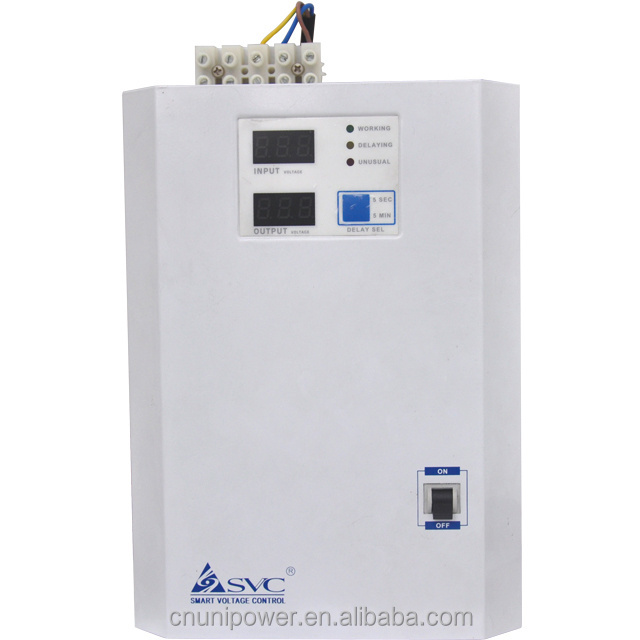

220V 5KVA Electric Home AVR Servo Generator Automatic Voltage Stabilizer

220V 5KVA Electric Home AVR Servo Generator Automatic Voltage Stabilizer

FOB Reference Price: Get Latest Price

≥100 Pieces

US $58

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SVC

Model Number:: AVR-BG4500

Item name:: Automatic Voltage Stabilizer

Protector:: High/Low Voltage, Overload, High Temperature,Short Circuit

Field of application:: computer network, household electrical appliances, medical equipment

Rated power:: 5000VA

Input voltage range & frequency:: 140~280 Vac

Output voltage range:: 220VAC±10%

Environment of performance:: Temperature 0℃~40℃, Humidity 20%~90%

Noise level:: Less than 40dB

Unit dimention (mm):: 274*222*128mm

Technology:: CPU based digital circuit+Transformer+Relays

Quick Details

Phase:: Single Phase

Current Type:: AC

Place of Origin:: Guangdong, China

Brand Name:: SVC

Model Number:: AVR-BG4500

Item name:: Automatic Voltage Stabilizer

Protector:: High/Low Voltage, Overload, High Temperature,Short Circuit

Field of application:: computer network, household electrical appliances, medical equipment

Rated power:: 5000VA

Input voltage range & frequency:: 140~280 Vac

Output voltage range:: 220VAC±10%

Environment of performance:: Temperature 0℃~40℃, Humidity 20%~90%

Noise level:: Less than 40dB

Unit dimention (mm):: 274*222*128mm

Technology:: CPU based digital circuit+Transformer+Relays

220V 5KVA Electric Home AVR Servo Generator Automatic Voltage Stabilizer

Product Description

Feature

1. Microprocessor control guarantees high reliability

2. Short Circuit, Overload, Over temperature protections provides safe and reliable performance

3. Delay function can protect the refrigerator, air conditioner and other household electrical appliances when

the AC switch frequently.

4. High voltage cut-off.

Field of Application

Applicable for equipment of computer network, household electrical appliances, medical equipment, scientific

research institutions, measuring and test equipment,calibration stand in factory, etc.

MODEL	AVR-BG4060	AVR-BG4100	AVR-BG4150	AVR-BG4200	AVR-BG4300	AVR-BG4500
Rated Power	600VA	1000VA	1500VA	2000VA	3000VA	5000VA
TECHNOLOGY
Technology	CPU based digital circuit+Transformer+Relays
Efficiency	98%
Phase	Single
INPUT
Input voltage	140~280 Vac
Input Frequency	Same As AC
OUTPUT
Output voltage	220Vac±10%
DISPLAY
Led Digital Display Status	Input Voltage, Output Voltage
Led Display Status	Normal, Display,Fault
PROTECTION
Protections	High/Low Voltage, Overload, High Temperature,Short Circuit
PHYSICAL
Unit dimention (mm)	180174104		220184104		274222128
Net weight (kg)	2.5	3.2	3.8	6.2	7.4	8.8
ENVIRONMENT
Environment of performance	Temperature 0℃~40℃, Humidity 20%~90%
Noise level	<40dB(lm)
Product specification are subject to change without notice

1. Wide range of input voltage

The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)

In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).

Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function

In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection

In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection

When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch

This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging

There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output

Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.

Our Services

Our Service

1. Samples

Samples are Available for Testing and Market Test.

2. Warranty of Unipower Products

Unipower provides warranty against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“ Product ” ).

3. Guides and After-service Consultancy

Unipower Power Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24 Hours After-service consultancy just for you and to make your problems to solve easily.

4. OEM Service

OEM service of Unipower is strictly based on the ISO9001 ISO14001 quality assurance system. The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, purchasing, production & QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 13 years.

We have 33 set of fully automatic SMT lines , 10 sets of automatic insertion equipments, ICT PCB testing equipments, ATE automatic testing center and aging workshop for all products. Monthly output of UPS series exceeds 200,000. We have been offering OEM service for over 13 years.

Certifications
