Quick Details
-
Color:
-
Black, Gray & Customize
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FD55P01
-
Brightness:
-
3000nits
-
Display Ratio:
-
16:9
-
Response Time:
-
8ms
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
24/7
-
IP Rating:
-
IP55
-
Installation Type:
-
Floor Standing
-
Resolution:
-
1920x1080
-
View Angle（H/V）:
-
178°/178°
-
Product name:
-

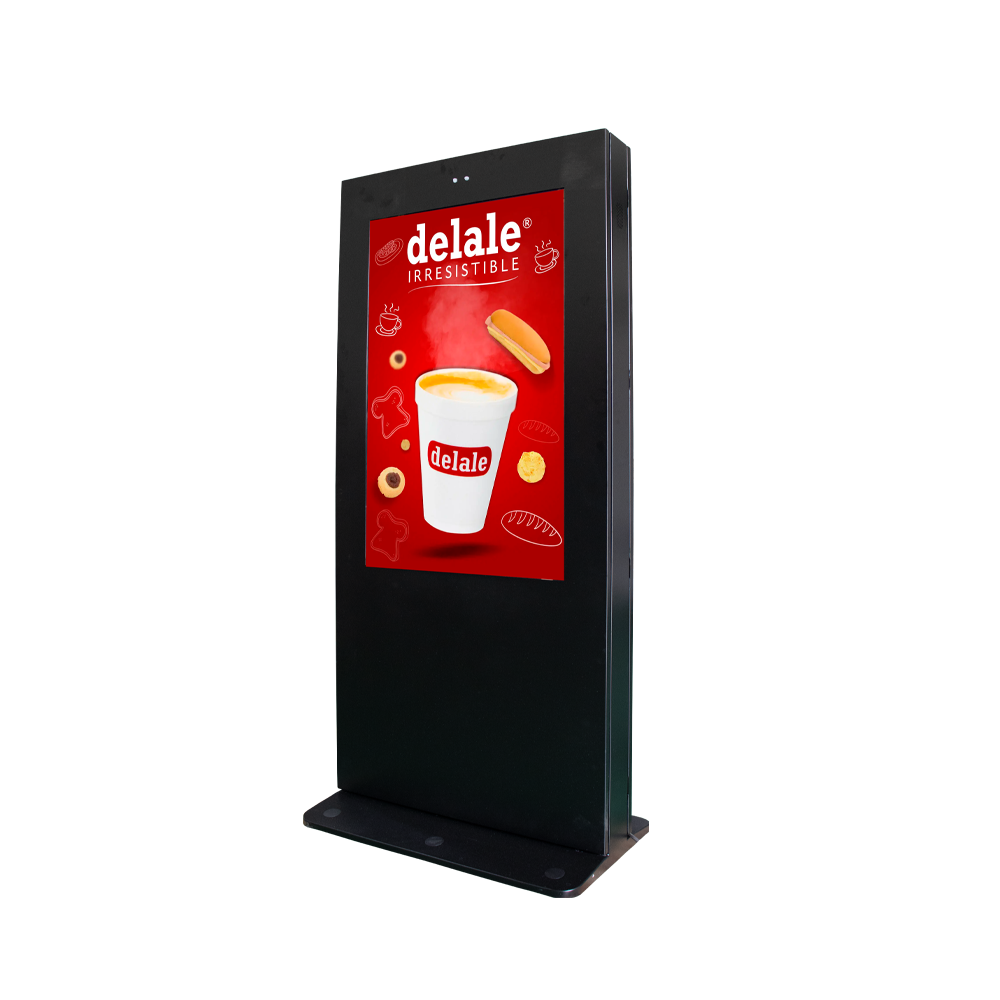

LCD Digital Signage
-
Warranty:
-
1 Years
-
Certificate:
-
CE ROHS FCC
-
Usage:
-
Commercial Advertising
-
OS:
-
Android/Windows 7/8/10(optional)
-
Display Function:
-
Video Picture Graphic Text Message
-
Keyword:
-
Advertising Equipment
-
Life span:
-
50000 Hours
-
Material:
-
Metal Case + Toughened Glass Panel
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LCD
-
Brand Name:
-
Senpal
-
Color:
-
Black, Gray & Customize
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FD55P01
-
Brightness:
-
3000nits
-
Display Ratio:
-
16:9
-
Response Time:
-
8ms
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
24/7
-
IP Rating:
-
IP55
-
Installation Type:
-
Floor Standing
-
Resolution:
-
1920x1080
-
View Angle（H/V）:
-
178°/178°
-
Product name:
-
LCD Digital Signage
-
Warranty:
-
1 Years
-
Certificate:
-
CE ROHS FCC
-
Usage:
-
Commercial Advertising
-
OS:
-
Android/Windows 7/8/10(optional)
-
Display Function:
-
Video Picture Graphic Text Message
-
Keyword:
-
Advertising Equipment
-
Life span:
-
50000 Hours
-
Material:
-
Metal Case + Toughened Glass Panel
Product Description
Specification
|
General
|
Screen Size
|
55"
|
|
|
Screen Active Area(mm)
|
1210x820
|
|
|
Resolution
|
FHD(1920*1080)
|
|
|
Aspect Ratio
|
16:9
|
|
|
Brightness(nit)
|
3000nits
|
|
|
Constrast Ratio
|
1200:1
|
|
|
Viewing Anagle(H/V)
|
178°/178°
|
|
|
Backlight Life Cycle
|
50,000 Hrs
|
|
|
Operation Hours
|
24/7
|
|
|
Response Time
|
8ms
|
|
|
Screen Orientation
|
Landscape
|
|
|
Touch Screen（optional）
|
P-CAP Touch
|
|
System
|
OS
|
Android 4.4/5.1/Windows
|
|
|
CPU
|
RK3288 Quad-core Cortex-A55 up to 1.9GHz
|
|
|
GPU
|
Mali-G31
|
|
|
DDR
|
2G DDR3
|
|
|
ROM
|
8G EMMC (support expanded memory card up to 128G )
|
|
|
Language
|
Chinese/English
|
|
Connectivity
|
Input
|
HDMI IN,USB2.0*2,LAN, SD card slot，AV IN
|
|
|
Output
|
AV OUT
|
|
Network connection
|
Wifi or LAN
|
Yes
|
|
|
3G/4G connection
|
optional
|
|
Speaker
|
Build in speaker
|
Yes
|
|
Thermal management
|
Build in fan
|
Airflow
|
|
|
Overheating protection
|
Yes
|
|
Physical
|
IP rating
|
IP55
|
|
|
Glass
|
6.8 mm (AR, Tempered & Laminated Glass)
|
|
|
Metal
|
Galvanized steel with powder coated
|
|
|
Standard Color
|
Black & Gray
|
|
|
Product Dimensions
|
2100(H)*900(W)*150(D) mm
|
|
|
Net Weight
|
Apprx.168kg
|
|
|
Gross Weight
|
187kg
|
|
|
Packing Dimensions
|
2280(H)x1050(W)x500(D)mm
|
|
|
20GP container capacity (pcs)
|
TBC
|
|
Environment
|
Environment Protection
|
Full-Outdoor IP55
|
|
|
Operation Temperature Range
|
-20℃ to 45℃
|
|
|
Operation Humidity Range
|
5% to 100%
|
|
Operation
|
Working envrionment
|
Full outdoor
|
|
|
Auto Brightness control
|
Light sensor
|
|
|
Operation Temperature (ambient temp.)
|
-20℃ to 45℃
|
|
|
Operation Humidity
|
5% to 90%
|
|
Power
|
Power Supply
|
AC 110 /220V, 50/60Hz
|
|
|
Power Type
|
AC Power
|
|
|
Power Consumption
|
450W(Max.)
|
