Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
VS-1~6
-
Input Voltage:
-
154-264VAC±3V
-
Output Voltage:
-
220VAC±10%
-
Output Current:
-
Dependent on connected load and conditions
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
434*310*122mm
-
Certificate:
-
CE/ROHS/ISO
-
Warranty:
-
1 year
-
Weight:
-
17kgs
-
Product name:
-
Off-grid Low frequency solar Inverter
-
Maximum PV Array Power:
-
3200W
-
Waveform:
-
Pure sine Wave
-
ODM:
-
Accept
-
Maximum PV Voltage:
-
150VDC
-
Controller type:
-
PWM \ MPPT Solar Controller
-
Battery type:
-
Lead Acid/GEL/AGM/LiFePO4
-
Operating Temperature Range:
-
0℃~40℃
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
>98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
VS-1~6
-
Input Voltage:
-
154-264VAC±3V
-
Output Voltage:
-
220VAC±10%
-
Output Current:
-
Dependent on connected load and conditions
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
434*310*122mm
-
Certificate:
-
CE/ROHS/ISO
-
Warranty:
-
1 year
-
Weight:
-
17kgs
-
Product name:
-
Off-grid Low frequency solar Inverter
-
Maximum PV Array Power:
-
3200W
-
Waveform:
-
Pure sine Wave
-
ODM:
-
Accept
-
Maximum PV Voltage:
-
150VDC
-
Controller type:
-
PWM \ MPPT Solar Controller
-
Battery type:
-
Lead Acid/GEL/AGM/LiFePO4
-
Operating Temperature Range:
-
0℃~40℃
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)
Source

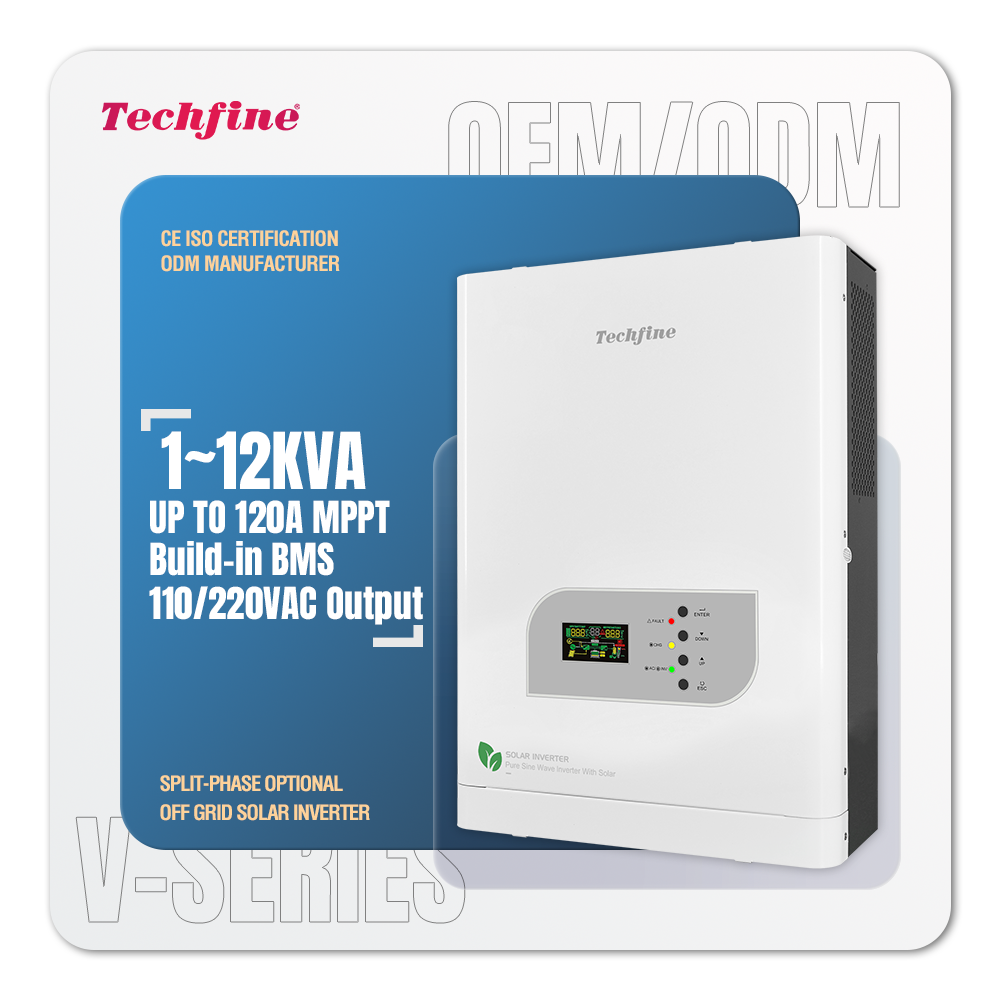

Factory 3KVA 4KVA 5KVA 6KVA 10KVA 12KVA
2400W 3200W 4000W 4800W 6400W 8000W 10000W
24/48VDC 110VAC 220VAC 230VAC
Off Grid Solar Hybrid Inverter
Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
Product Overview
The VS series
multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterrupted power support.
At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
According to your needs
, please feel free to
contact us
and know about other possible system architectures.
This inverter can power various electrical appliances in home or office environments, including light tubes, fans, refrigerators, air conditioners, and other motor-type appliances.
Product Parameter
|
Model
|
VS3024/48 M6
|
VS4024/48 M6
|
VS5024/48 M6
|
VS6048 M8
|
VS8048 M8
|
VS10048 M8
|
VS12548 M8
|
||||||
|
AC Input voltage
|
220VAC(standard)
|
|
|
|
|
|
|
||||||
|
Input voltage range
|
154-264VAC±3V(Nor Model)185-264VAC±3V(UPS model)
175-285VAC±3V(AVR Type)
|
|
|
|
|
|
|
||||||
|
Input frequency
|
50/60Hz±5%
|
|
|
|
|
|
|
||||||
|
Out put power
|
3000VA
2400W
|
4000VA
3200W
|
5000VA
4000W
|
6000VA
4800W
|
8000VA
6400W
|
10000VA
8000W
|
12500VA
10000W
|
||||||
|
AC model output Voltage
|
The output voltage under the mains is the same as the input voltage(with AVR function 220V±10%)
|
|
|
|
|
|
|
||||||
|
Battery model output frequency
|
The output frequency under the mains is the same as the input frequency
|
|
|
|
|
|
|
||||||
|
Battery model output voltage
|
220VAC±10%
|
|
|
|
|
|
|
||||||
|
Battery model output frequency
|
50HZ or 60HZ±1%
|
|
|
|
|
|
|
||||||
|
Battery model output wave
|
Pure sine wave
|
|
|
|
|
|
|
||||||
|
Battery type
|
External lead-acid battery,Gel battery, water battery or Lithium battery
|
|
|
|
|
|
|
||||||
|
Battery voltage
|
24/48VDC
|
|
|
48VDC
|
|
|
|
||||||
|
Battery charging voltage
|
27/54VDC
|
|
|
54VDC
|
|
|
|
||||||
|
Maximum PV array power
|
24V:1600W 48V:3200W
|
|
|
6400W
|
|
|
|
||||||
|
Solar input voltage range
|
24V: MPPT 30V-150VDC
48V: MPPT 60V-150VDC
|
|
|
48V: MPPT 60V-150VDC
|
|
|
|
||||||
|
Maximum PV Display Open Circuit Voltage
|
150VDC
|
|
|
150VDC
|
|
|
|
||||||
|
Maximum solar charging current
|
60A
|
|
|
120A
|
|
|
|
||||||
|
Maximum AC Charge Current
|
29A/15A
|
35A/20A
|
48A/24A
|
29A
|
38A
|
48A
|
60A
|
||||||
|
Battery charging voltage range
|
154-280VAC
|
|
|
|
|
|
|
||||||
|
Transfer time
|
≤10ms(UPS) / ≤20ms(INV)
|
|
|
|
|
|
|
||||||
|
load peak ratio
|
(MAX)3:1
|
|
|
|
|
|
|
||||||
|
Protective function
|
Under the mains∶input overcurrent fuse
Under inverter: overload protection,short circuit protection, Iow voltage protection, (with battery anti-reverse connection,board).
|
|
|
|
|
|
|
||||||
|
Status Display
|
You can view parameters such as AC voltage, AC frequency, PVvoltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys.
|
|
|
|
|
|
|
||||||
|
Voice prompt
|
Low battery protection buzzer long beep
Low battery buzzer beeps every second
Machine fault buzzer beeps
Overload buzzer beeps
When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30S. When theover load is greater than 150%,the output will be turned off after 300mS.
|
|
|
|
|
|
|
||||||
|
Operating temperature
|
0℃~40℃
|
|
|
|
|
|
|
||||||
|
Storage temperature
|
-15℃~45℃
|
|
|
|
|
|
|
||||||
|
Relative temperature
|
-10℃~90℃ no condensation
|
|
|
|
|
|
|
||||||
|
Noise
|
＜45dB
|
|
|
|
|
|
|
||||||
Products Description
Toroidal
Transformer-Less Interference-High Efficiency
Multifunction Control Panel-Ease of Operation
You can enjoy the WIFI function
of this Hybrid Inverter by purchasing the WIFI module separately and connecting it to the APP. This will allow you to monitor the inverter's performance.
Remind:
To ensure the appropriate matching of the battery capacity for the system, it is crucial to consider the specific usage requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
For more information, please consult the manual recommendation or reach out to our online
customer service.
