Quick Details
-
Model Number:
-
JD-S4Vi03A-7
-
Installation:
-
Wall Mounting
-
Display Size:
-
7
-
Technology:
-
ANALOG
-
Power:
-
DC12V
-
Material:
-
Metal
-
LCD:
-
7 Inch TFT
-
Working temperature:
-
-20°C ~+70°C
-
Application:
-
Home Security System
Quick Details
-
Resolution:
-
720P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIDEW
-
Model Number:
-
JD-S4Vi03A-7
-
Installation:
-
Wall Mounting
-
Display Size:
-
7
-
Technology:
-
ANALOG
-
Power:
-
DC12V
-
Material:
-
Metal
-
LCD:
-
7 Inch TFT
-
Working temperature:
-
-20°C ~+70°C
-
Application:
-
Home Security System
Product Description

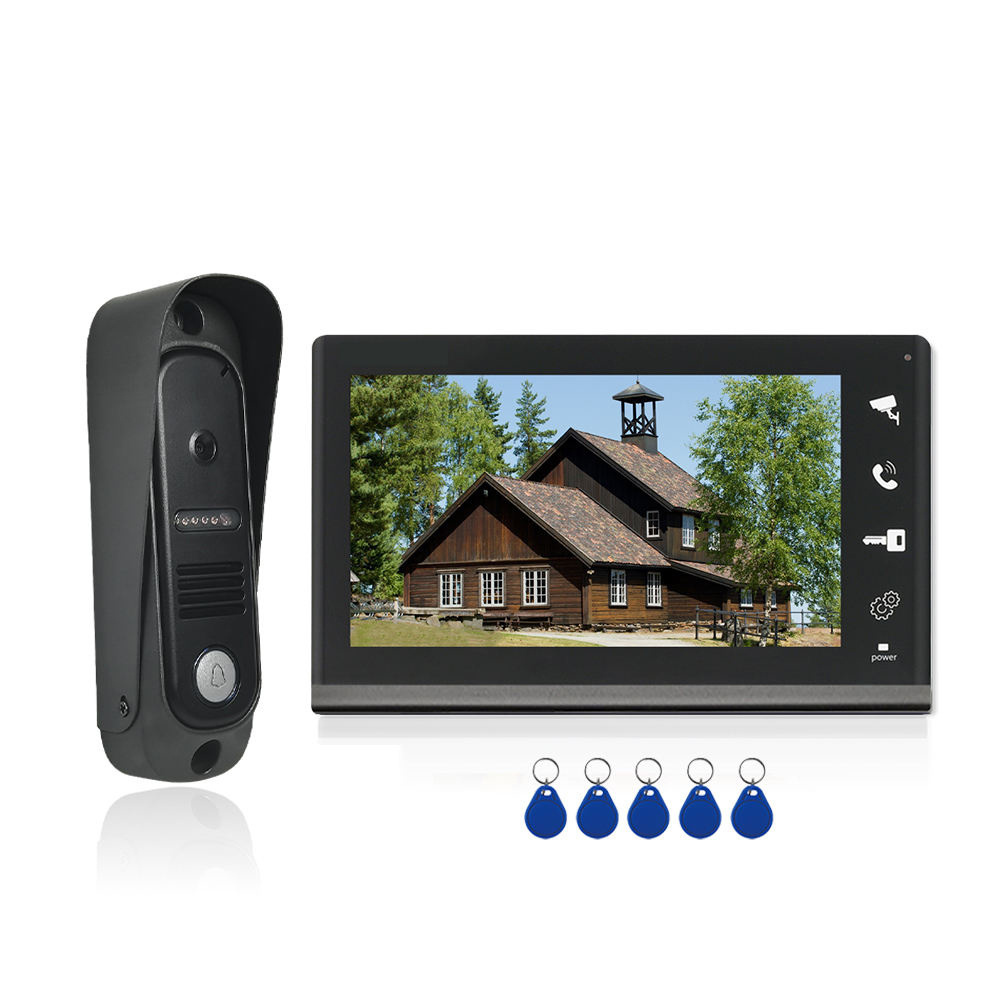

7 Inch Home Intercom System 4 Wired
Telephone Style Video Door Phone
The 4-wire villa intercom system is a video intercom system developed for villa users. The system has call intercom, monitoring, RFID card access control and other functions. It is well designed with easy operation, such as ringtone replacement, volume adjustment and other intuitive operations.
Indoor Monitor:
MCU: MA82G5B16
LCD:7 inch TFT
Camera: 480*272
Rintones：15
Voltage: DC13.5V
Working Temp. : -40ºC ~+70ºC Dimension: 140.5×42.8×28.5(mm) /5.5x1.7x1.1 inch
Installation: Wall Mounting
LCD:7 inch TFT
Camera: 480*272
Rintones：15
Voltage: DC13.5V
Working Temp. : -40ºC ~+70ºC Dimension: 140.5×42.8×28.5(mm) /5.5x1.7x1.1 inch
Installation: Wall Mounting
Outdoor Doorbell:
MCU:MAT630A
Camera: 700TVL
Power: Powered by indoor monitor
Working Temp.:-40ºC ~+70ºC
Dimension:142*45*50(mm) / 5.5x1.8x2 inch
Installation:Wall Mounting
Material: Metal Cover
Camera: 700TVL
Power: Powered by indoor monitor
Working Temp.:-40ºC ~+70ºC
Dimension:142*45*50(mm) / 5.5x1.8x2 inch
Installation:Wall Mounting
Material: Metal Cover
Wiring Diagram with 2 Camera Doorbells 1 Monitor for 2 Gates
One Monitor Can be Connected to 2 Outdoor Doorbell Camera, controlling up to 2 electric gate and home door locks, it is convenient for you to open the outgate lock with the indoor monitor and do not need go outside to the gate away from your house.
Wiring Diagram with Electric Lock
For installing the electric magnetic lock, strike lock or bolt lock to the camera doorbell, you need to buy a DC12V power supply. (locks, door exit button, power supply for electric lock are not included in the package).
Two Way Intercom
With intercom system, you can speak to the people outside and check the visitor identify at home, secure the home safe.
One Key to Monitor and Unlock
* You can view the outside environment through the indoor monitor at any time.
* While you approve the visitor entry, you can use the unlock function to unlock the door instead of manually open.
RAINPROOF
Rainproof outdoor camera can improve the life of the product, and avoid internal structure damage caused by rain.
With waterproof shell, it can revent rainwater from eroding the product and damaging the internal circuit.
With waterproof shell, it can revent rainwater from eroding the product and damaging the internal circuit.
IR Night Vision
When the night is coming, smart intercom system will detcet the Light changes and activate the IR LED light.
With IR night vision effect, you can watch the outside situation clearly and easy to Distinguish the visitors Identity.
With IR night vision effect, you can watch the outside situation clearly and easy to Distinguish the visitors Identity.
15 RINGTONES
The doorbell ringtone volume has 4 options, 15 ringtones to choose from.
If it is set to mute, someone calls the outdoor camera, the indoor machine will display but there will be no ringtone.
If it is set to mute, someone calls the outdoor camera, the indoor machine will display but there will be no ringtone.
Basic Wiring Diagram
Very easy cable connection. Connect outdoor doorbell to indoor monitor with the 4 wires cable.
After connecting the electronic lock, you can unlock it through the RFIC card.
After connecting the electronic lock, you can unlock it through the RFIC card.
Package includes
1 x Camera Doorbell
1 x Indoor Monitor
5 x Access Key Fobs
1 x 12V Power Adapter
1 x 4-Wire Cable (for testing)
1 x Set of 4-pin Connector
1 x User Manual
1 x Indoor Monitor
5 x Access Key Fobs
1 x 12V Power Adapter
1 x 4-Wire Cable (for testing)
1 x Set of 4-pin Connector
1 x User Manual
