Quick Details
-
Optical Resolution:
-
4 mil
-
Scan Speed:
-
280scan/s
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Black
-
CPU:
-
ARM 32 Bit
-
Light Source:
-
led , light source 660nm±10nm)
-
Print Contrast:
-
15% minimum
-
Indicator:
-
buzzar and led indicator
-
Bar code:
-
1D bar code
-
Scanning Angle:
-
Rotor angel ±55°, Inclination ±25°, Elevation ±75°
-
IP level:
-
IP 54
-
Key word:
-
bar code scanner handheld
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CCD
-
Max Paper Size:
-
40cm
-
Optical Resolution:
-
4 mil
-
Scan Speed:
-
280scan/s
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Black
-
CPU:
-
ARM 32 Bit
-
Light Source:
-
led , light source 660nm±10nm)
-
Print Contrast:
-
15% minimum
-
Indicator:
-
buzzar and led indicator
-
Bar code:
-
1D bar code
-
Scanning Angle:
-
Rotor angel ±55°, Inclination ±25°, Elevation ±75°
-
IP level:
-
IP 54
-
Key word:
-
bar code scanner handheld

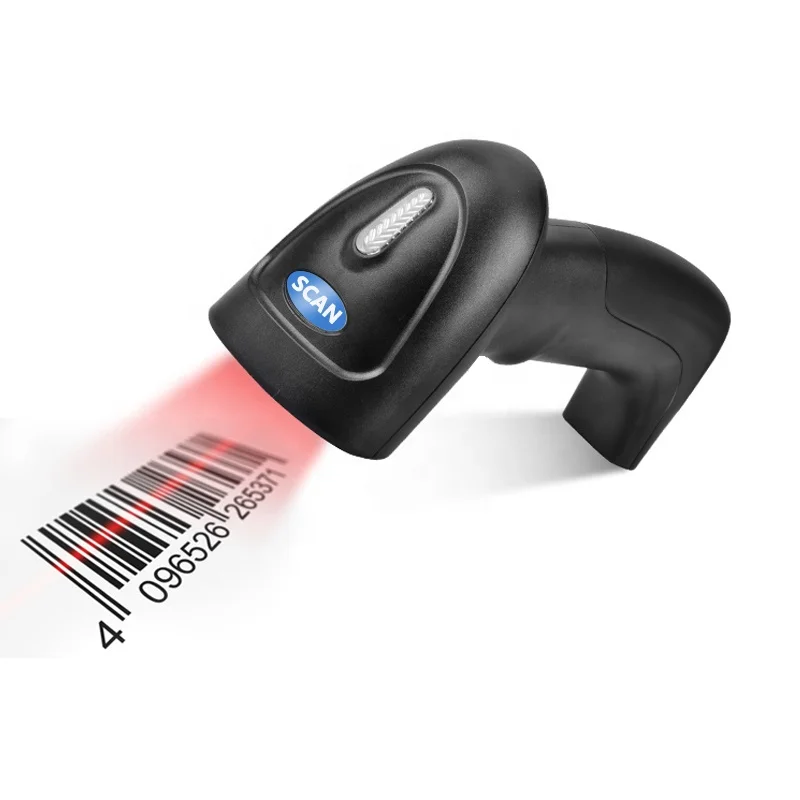

Supermarket 1D CCD Bar Code Scanner Handheld USB Wired BS-127
Product Description
Pos Barcode Reader 's Features:
1. 1D CCD led light bar code scanner
2. high-speed recognition of 1D barcodes 280 scan /per second. Support 4mil high precision 1D barcode.
3. Supports scanning of digital LCD screens such as mobile phone tablets to prevent film and low-brightness screen interference.
4. Its built-in linear imaging technology gives it
excellent decoding performance when scanning all linear barcodes, even when scanning damaged or poorly printed barcodes.
|
Processor |
32-bit ARM processor |
|
|
Sensor |
2500 pixel CCD sensor |
|
|
Light Source |
LED (wavelength 660nm ± 10nm) |
|
|
Scan Speed |
280 scans per second |
|
|
Scan Angle |
Skew ±55 ° roll ±25 ° pitch ±75 ° |
|
|
Scanning Distance |
(60%Contrast) (25mil)40cm,(15mil)32cm,(10mil)22cm,(5mil)11cm,(3mil)3cm |
|
|
Scanning Width |
≤ 110mm |
|
|
Resolution |
≥0.1mm(4mil) |
|
|
Minimum Contrast |
15% |
|
|
Decoding Capability |
Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412 |
|
|
Voltage |
4.5 ~ 5.5V DC V1 ± 5% |
|
|
Current |
Operating |
100 ~ 110mA |
|
Standby |
30 ~ 40mA |
|
|
Dimensions |
180mm(L)×65mm(W)×105mm(H) |
|
|
Weight |
185g (Include battery) |
|
|
Case Material |
ABS |
|
|
Interfaces |
USB |
|
|
Operating Temperature |
-200 ℃ ~ 50 ℃ |
|
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
|
|
Humidity |
0% ~ 98% |
|
|
Illumination |
0 ~ 70,000 lux |
|
|
5mil UPC |
40mm - 160mm |
|
|
10mil Code93 |
20mm - 240mm |
|
|
15mil EAN13 |
40mm - 250mm |
|
|
20mil code128 |
40mm - 380mm |
|
|
40mil code128 |
80mm -520mm |
|
Provides a wide range of solutions for your business
Complete line of POS Hardware solutions
- Catering: hotel, restaurant, fast-food restaurant, coffee shop, bakery and cake shop;
- Retailer: Business Street, boutique, department store, cosmetics shop and high-class barbershop;
- Recreation: sauna, spa, night club, theme park, casino and point of sales for lottery ticket;
- Commercial: information management terminals for parking lot, inn, aviation, subway, station and wharf.
BS-127
also has some other excellent performance, 100% curing technology, no moving parts, not easy to damage, there will be no unattainable situation.
It is Ideal for small retailers and logistics sites. It provides the functionality, features, and reliability needed to increase the efficiency of operations from the checkout team to the warehouse.
Supports up to 3mil high-precision scanning , supporting fine bar code scanning in the jewelry industry and electronics industry
Quickly identify LCD digital screen barcodes to actively avoid low brightness and film interference.
Alipay mobile payment code): 5.5 Inch display - 40mm ~ 260mm; 3.7 Inch display - 50mm ~ 170mm
