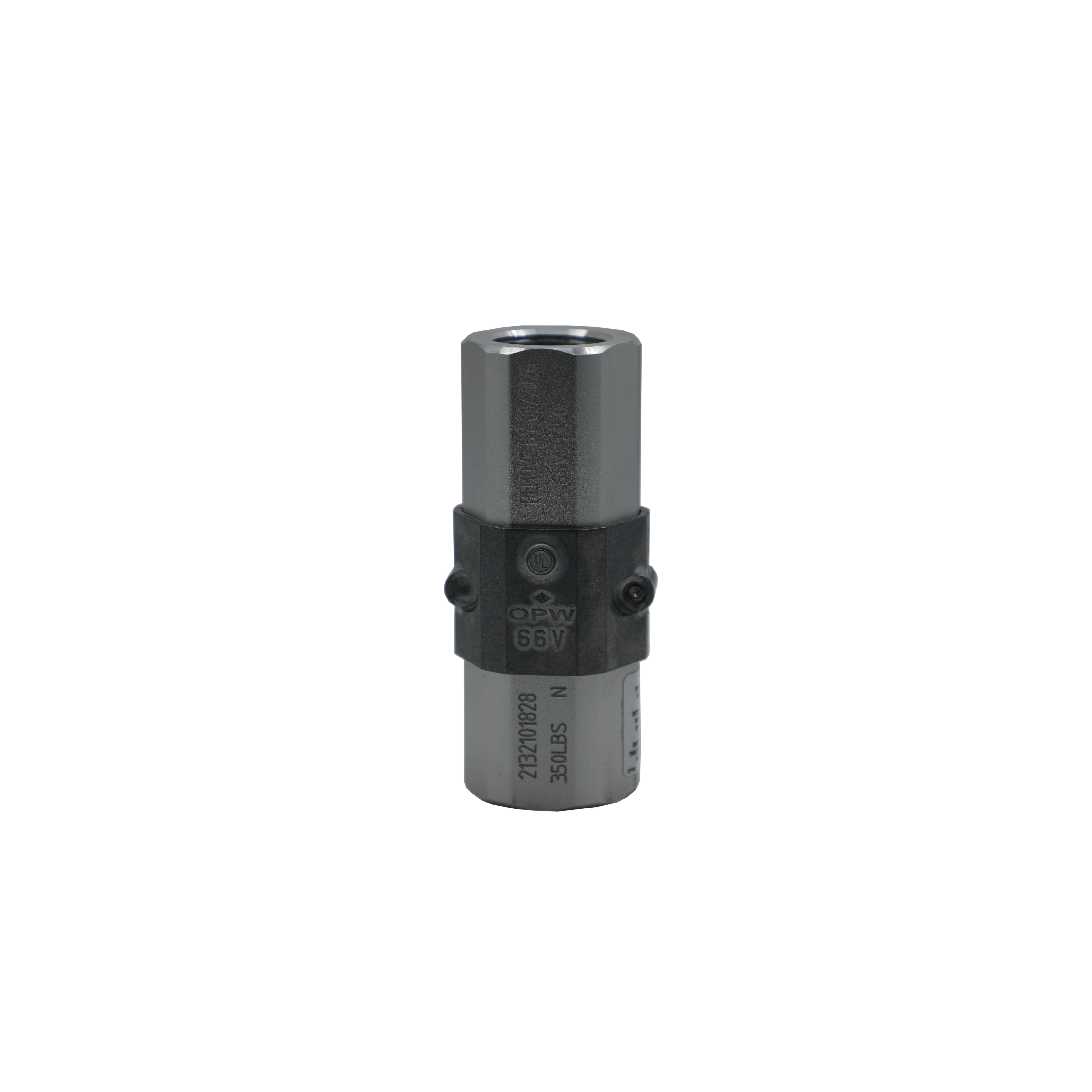

OPW Original 3/4 Inch Emergency Breakaway Valve 66V-0300 Breakaway Valve For Fuel Dispenser

OPW Original 3/4 Inch Emergency Breakaway Valve 66V-0300 Breakaway Valve For Fuel Dispenser

FOB Reference Price: Get Latest Price

≥10 Pieces

US $19.9

≥100 Pieces

US $17.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Keywords:: OPW Breakaway Valve

Material:: Aluminum alloy

Port size:: 3/4"

Thread:: 3/4" F*3/4" F(NPT)

Color:: Silver

Breaking force:: 300lb

Pressure:: Low Pressure

Quick Details

Place of Origin:: China, Original

Model Number:: 66V-0300

Brand Name:: OPW

Keywords:: OPW Breakaway Valve

Material:: Aluminum alloy

Port size:: 3/4"

Thread:: 3/4" F*3/4" F(NPT)

Color:: Silver

Breaking force:: 300lb

Pressure:: Low Pressure

OPW Original 3/4 Inch Emergency Breakaway Valve 66V-0300 Breakaway Valve For Fuel Dispenser

Product Description

* It must be installed on a rubber hose not shorter than 9". When subjected to a certain tension, the breakaway valve will separate, and the two valves will automatically return to cut off the oil flow to prevent fuel overflow and protect the refueling equipment.

* Used with 11A, 11B series oil guns

* Suitable for gasoline, diesel, 10% ethanol gasoline, etc.

* One-time breaking, 300lb breaking force valve body separation

Details Images

Design working pressure:

The maximum working pressure of OPW product design is: 50PSI.

Pulling force:

When the pulling force is lower than the design, the pull-off valve automatically separates and cuts off the oil flow to protect the refueling equipment. 66V-0300 will disengage with no more than 300 lbs of pull.
