Quick Details
-
Products Description:
-

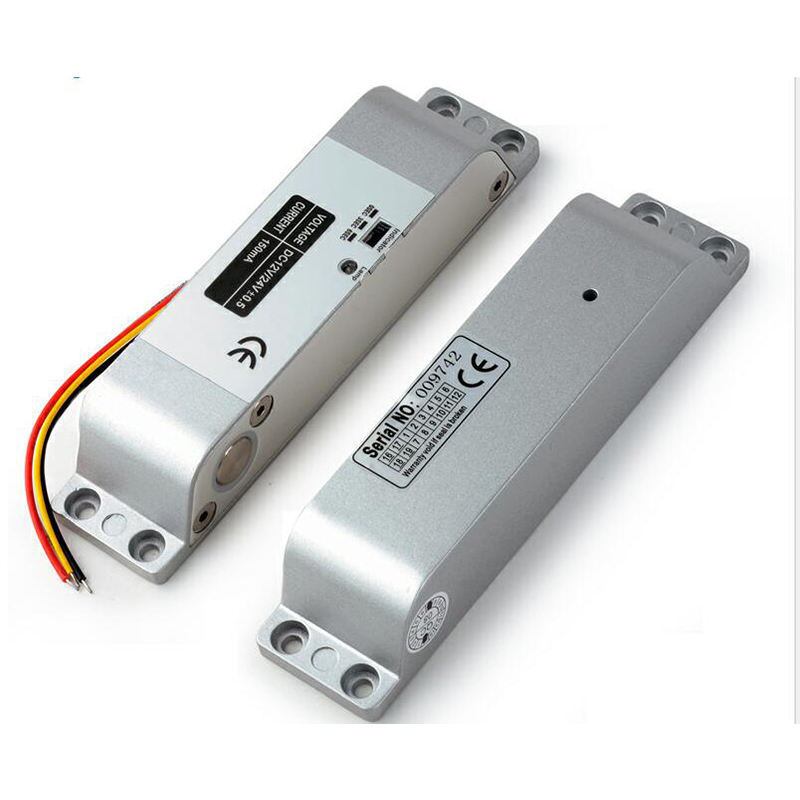

Low Temperature Electric Drop Bolt Lock
-
Product material:
-
Aluminum alloy
-
Working Current:
-
Start-up: 1.2A, operating: 0.20A
-
Input Voltage:
-
DC12V/24V
-
Opening Type:
-
Fail-Safe or Fail-Secure
-
Working Temperature:
-
-10~+55℃
-
Working Humidity:
-
0%-90%
-
Holding force:
-
1,000kg
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door
-
Opening Mode:
-
180 degree swinging door
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VANSHUI
-
Model Number:
-
GL-DB200M
-
Products Description:
-
Low Temperature Electric Drop Bolt Lock
-
Product material:
-
Aluminum alloy
-
Working Current:
-
Start-up: 1.2A, operating: 0.20A
-
Input Voltage:
-
DC12V/24V
-
Opening Type:
-
Fail-Safe or Fail-Secure
-
Working Temperature:
-
-10~+55℃
-
Working Humidity:
-
0%-90%
-
Holding force:
-
1,000kg
-
Suitable For:
-
Wooden Door,Glass Door,Metal Door
-
Opening Mode:
-
180 degree swinging door
Products Description
Access
Control System Low Temperature Electric Drop Bolt Lock
With Time Delay Fail-Safe/ Fail-Secure
Specification
|
Product Parameter
|
Parameter Description
|
|
Model Name
|
GL-DB200M
|
|
Material
|
Aluminium Alloy
|
|
Products Description
|
Low Temperature Electric Drop Bolt Lock
|
|
Feature
|
Fail Safe or Fail-Secure
|
|
Size
|
150*34*27.5 mm
|
|
Input Voltage
|
DC12V/24V
|
|
Working Current
|
Start-up: 1.2A, operating: 0.20A
|
|
Suitable For
|
Wooden Door,Glass Door,Metal Door
|
|
Lock Mode
|
Magnetic induction
|
|
Time Delay Adjustable
|
0, 3, 6 seconds
|
|
Holding Force
|
1000kg
|
|
Operating Temperature
|
-10～+55℃(14~131F)
|
|
Operating Humidity
|
0～90%(non-condensing)
|
|
Suitable For
|
Wooden Door,Metal Door,Aluminum door
|
|
Weight
|
1kg
|
Product Show
Working Application
