Quick Details
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AIWEIYA
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3200 kg
-
Max Digging Radius:
-
5480mm
-
Rated Speed:
-
3km/h
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
1 year
-
Model Number:
-
AWY35 crawler excavator
-
Working Wieght:
-
3500kg,2.5T
-
Engine Power:
-
26HP /2200rpm
-
Bucket Capacity:
-
0.12m³
-
Swing Speed(rmp):
-
0-11
-
Max. Bucket Digging Force(KN):
-
30.4
-
Max. Arm Digging Force(KN):
-
18.2
-
Mini Ground clearance(mm):
-
295
-
Max. vertical digging depth(mm):
-
3208
Quick Details
-
Operating Weight:
-
3500kgs, 3.5ton
-
Bucket capacity:
-
0.12m³
-
Engine Brand:
-
Kubota
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AIWEIYA
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3200 kg
-
Max Digging Radius:
-
5480mm
-
Rated Speed:
-
3km/h
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
1 year
-
Model Number:
-
AWY35 crawler excavator
-
Working Wieght:
-
3500kg,2.5T
-
Engine Power:
-
26HP /2200rpm
-
Bucket Capacity:
-
0.12m³
-
Swing Speed(rmp):
-
0-11
-
Max. Bucket Digging Force(KN):
-
30.4
-
Max. Arm Digging Force(KN):
-
18.2
-
Mini Ground clearance(mm):
-
295
-
Max. vertical digging depth(mm):
-
3208
Product Description

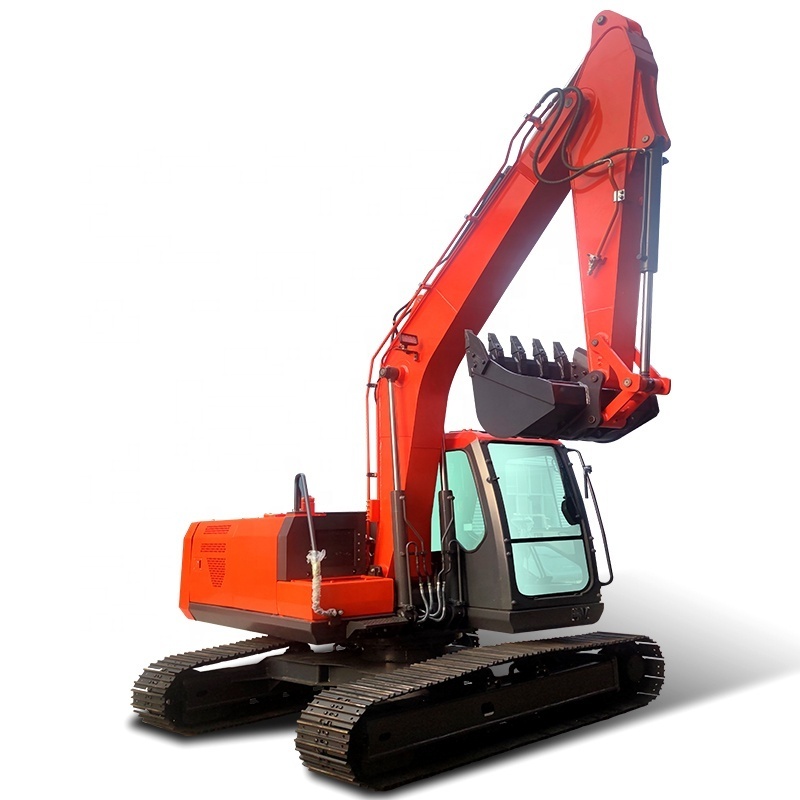

AWY Minibagger Kubota Engine 3.5 ton Mini Crawler Excavator
1. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine.
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful.
7. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower, the machine is powerful and can meet EPA,EURO V,CE certificates.
1. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine.
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful.
7. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower, the machine is powerful and can meet EPA,EURO V,CE certificates.
Specification
|
ENGINE
|
|
|
|
Model
|
Kubota D1703 18.5KW/2200rpm
|
|
|
Max. Turque
|
97.4N.m/1500RPM
|
|
|
Type
|
In-line, water cooled, Mechanical pump, normally aspirated
|
|
|
Displacement
|
1.647L
|
|
|
No. of cylinder
|
4
|
|
|
MAIN PERFORMANCE
|
|
|
|
Swing Speed(r/min)
|
0-11
|
|
|
Traveling Speed(high/low)(km/H)
|
4.4/2.4
|
|
|
Grade ability(°)
|
0.58
|
|
|
Max. Bucket Digging Force(kN)
|
30.4
|
|
|
Arm Digging Force(kN)
|
18.2
|
|
|
Ground Pressure(Kpa)
|
32
|
|
|
Hydraulic system pressure(Mpa)
|
22.5
|
|
|
Machine Weight(KG)
|
3810
|
|
|
Boom Length(Mm)
|
2535
|
|
|
Arm Length(Mm)
|
1400
|
|
|
Fuel Tank capacity(L)
|
42
|
|
|
Hydraulic Tank capacity(L)
|
48.5
|
|
|
Engine oil capacity(L)
|
7
|
|
|
Carrier roller(each side)
|
1
|
|
|
Supporting roller(each side)
|
4
|
|
|
OVERALL DIMENSIONS
|
|
|
|
Overall Length(mm)
|
4915
|
|
|
Overall Width(mm)
|
1720
|
|
|
Overall Height(mm)
|
2525
|
|
|
Mini Ground clearance(mm)
|
295
|
|
|
Track width(mm)
|
300
|
|
|
Axle base(Track length on ground)(mm)
|
1670
|
|
|
Length of track(mm)
|
2154
|
|
|
Track Gauge(mm)
|
1420
|
|
|
Swing radius at tail(mm)
|
860
|
|
|
Swing radius at front(mm)
|
2538
|
|
|
Height of blade(mm)
|
350
|
|
|
OPERATION PARAMETERS
|
|
|
|
Bucket Capacity(M³)
|
0.12
|
|
|
Max. Digging Radius(mm)
|
5480
|
|
|
Max. Digging Depth(mm)
|
3208
|
|
|
Max. Digging Height(mm)
|
4800
|
|
|
Max. Dumping Height(mm)
|
3406
|
|
|
Max. vertical digging depth(mm)
|
3208
|
|
