Quick Details
-
Brand Name:
-
CHINCAN
-
Model Number:
-
SYD-265C
-
Power supply:
-
AC(220±10%)V/ 50 Hz±5%
-
Maximum power:
-
1600W
-
Stirring motor:
-
Power is 6W,rotating speed 1200RPM
-
Temperature control range:
-
Room temperature~100℃
-
Temperature control accuracy:
-
±0.1℃
-
Constant temperature bath:
-
20L,double shell structure
-
Temperature sensor:
-
RTD, Pt100
-
Net weight:
-
about 33Kg
-
Dimensions:
-
530mm*400mm*670mm
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHINCAN
-
Model Number:
-
SYD-265C
-
Power supply:
-
AC(220±10%)V/ 50 Hz±5%
-
Maximum power:
-
1600W
-
Stirring motor:
-
Power is 6W,rotating speed 1200RPM
-
Temperature control range:
-
Room temperature~100℃
-
Temperature control accuracy:
-
±0.1℃
-
Constant temperature bath:
-
20L,double shell structure
-
Temperature sensor:
-
RTD, Pt100
-
Net weight:
-
about 33Kg
-
Dimensions:
-
530mm*400mm*670mm
Product Description

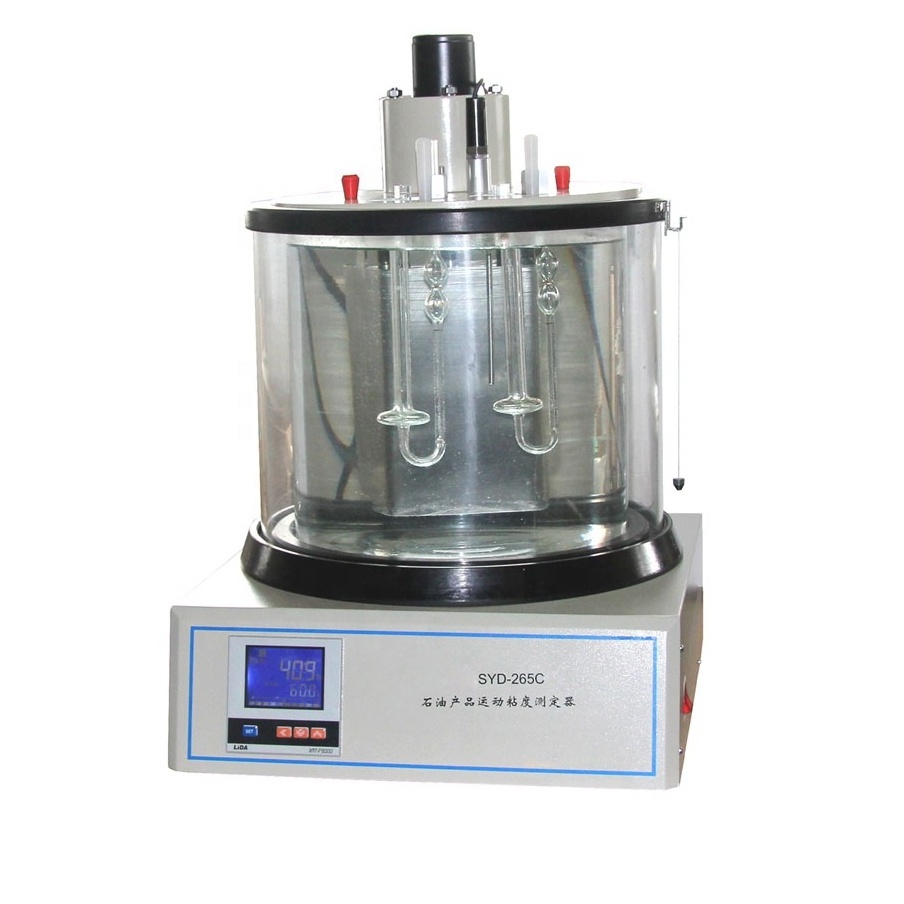

SYD-265C
Kinematic Viscometer
Summary
This instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian liquids) at a constant temperature as per the stipulation in the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity.
I. Main technical features
1. This instrument adopts LCD temperature controller,having features of rapid temperature control,fast response,small overshoot.The temperature control accuracy can reach ±0.1℃.
2. The instrument adopts hard glass bath and heat preservation shell(double shell structure).The heat preservation property is good. Easy to observe the sample.
3. The instrument adopts desktop and all-in-one design.The integrality is good.Convenient to operate.
4. The instrument adopts electric stirring device.The temperature in water bath is uniform.
II.Main technical specifications
| Power supply | AC(220±10%)V,50Hz±5% |
| Heating power | 1600W |
| Stirring motor | Power is 6W,rotating speed 1200RPM |
| Temperature control range | Room temperature~100℃ |
| Temperature control accuracy | ±0.1℃ |
| Constant temperature bath | 20L,double shell structure |
| Working environment | Ambient temperature: room temperature~35℃ |
| Relative humidity | ≤85% |
| Temperature sensor | RTD, Pt100 |
| Maximum power consumption | 1800W |
| Capillary viscometer tubes(Pinkevitch viscometer) |
7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm |
| Dimension | 530mm×400mm×670mm |
| Net weight | about 33Kg |
SYD-265C-3
Automatic Capillary Viscometer Washer
I. Summary
The instrument is designed and made specially for washing the capillary viscometers, which are used for testing petroleum products. It can be used to wash glass capillary viscometer of various types, such as Pinkevitch viscometer, Ubbelohde viscometer, Cannon-Fenske routine viscometer, Cannon-Fenske opaque viscometer.It can clean as many as three viscometer tubes at a time.It is high-efficient and time saving especially for the capillary viscometers, which are used for testing heavy oil with high viscosity.
It adopts micro-controller control technology, program control, automatic washing. It needs less solvent oil and it is convenient, efficient. It can be widely used in the enterprises producing and using petroleum products, colleges and universities, and scientific research institutes and so on, where capillary viscometer are used.
II. Main technical specifications
| Power supply | AC 220V±10%, 50 Hz |
| Maximum power consumption | 700 W |
| Water bath temperature controlling range | Room temperature~80 ℃ |
| Ambient temperature | Room temperature~35℃ |
| Relative humidity | ≤85% |
| Dimension of washer |
320mm×300mm×500mm
( excluding the aspirator ) |
| Net weight of washer | 10Kg (excluding the aspirator) |
