Quick Details
-
Power:
-
6KW
-
Weight:
-
97 KG
-
Dimension(L*W*H):
-
800*750*1230mm
-
Material:
-
Stainless Steel
-
Capacity:
-
10-100kg/h
-
Compressor power:
-
2.5P
-
Refrigerating liquid:
-
R22
-
Application:
-
Milk fresh
-
Speed:
-
36r/min
-
Liner:
-
2mm
-
Thermal insulation layer:
-
5cm
-
Shroud:
-
1.2mm
-
Cooling plate:
-
0.9mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Newest
-
Voltage:
-
220V380 V/ 50 Hz
-
Power:
-
6KW
-
Weight:
-
97 KG
-
Dimension(L*W*H):
-
800*750*1230mm
-
Material:
-
Stainless Steel
-
Capacity:
-
10-100kg/h
-
Compressor power:
-
2.5P
-
Refrigerating liquid:
-
R22
-
Application:
-
Milk fresh
-
Speed:
-
36r/min
-
Liner:
-
2mm
-
Thermal insulation layer:
-
5cm
-
Shroud:
-
1.2mm
-
Cooling plate:
-
0.9mm
Product Description
It is suitable for community stores or start-up stores, family farms, and pastures with small stores and no 380v power supply. It is suitable for milk, goat milk, and camel milk. It is very suitable for individuals who are not suitable for other auxiliary equipment.
Specification
|
Name
|
Milk pasteurization machine
|
|
Model
|
100/150/200
|
|
Capacity
|
10-150L/batch
|
|
Power
|
380V 9kw/220V 6kw
|
|
Drum inner diameter
|
630 mm
|
|
Drum outer diameter
|
740 mm
|
|
Height of drum
|
400/600/670mm
|
|
Dimension
|
800*750*1230/1430/1530mm
|
|
Material
|
Stainless steel 304
|
|
Weight
|
97KG
|
|
Sterilization time
|
10-30min
|
|
Sterilization temperature
|
60-99℃
|

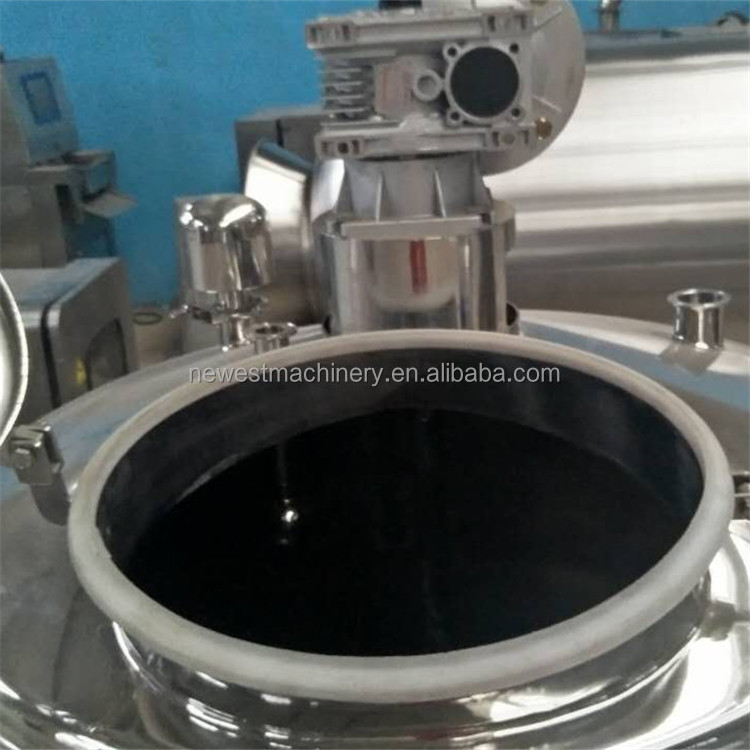

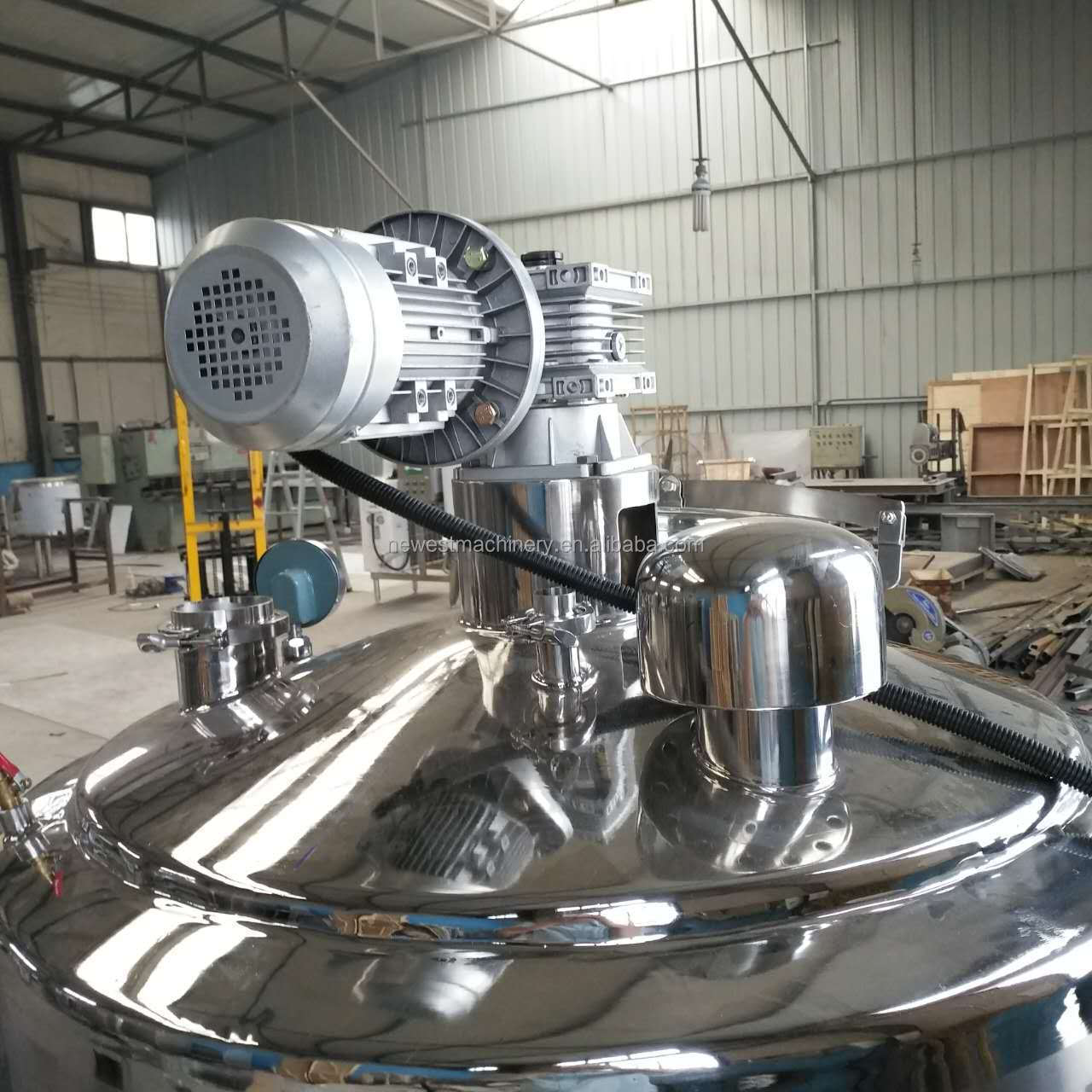

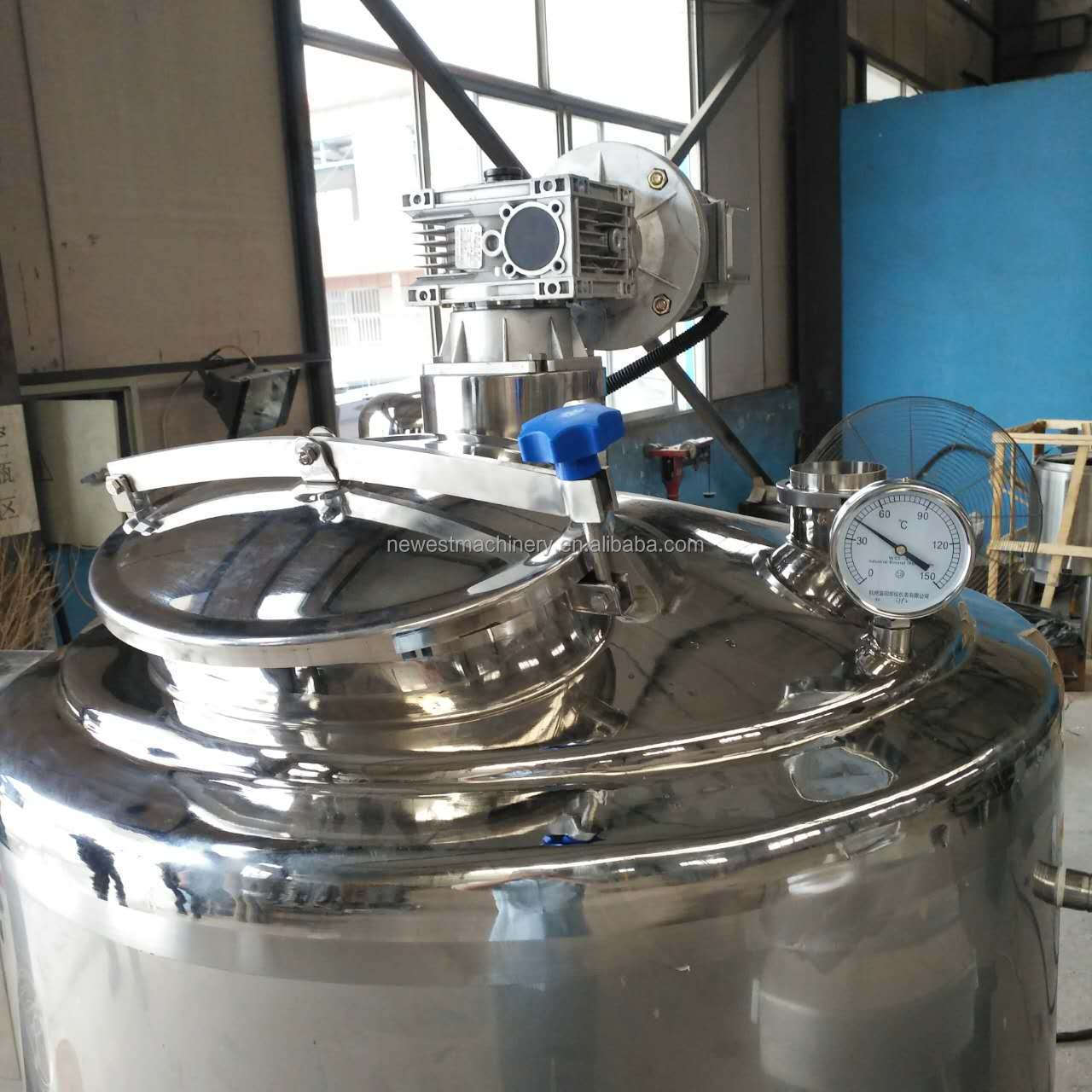

Detailed Images
1. Tap water to cool down
2. Heating the bottom of the tank
3. A circulating water pump can be installed at the bottom of the tank to reduce the upper and lower temperature difference during the sterilization process.
4. Refrigeration equipment can be added.
2. Heating the bottom of the tank
3. A circulating water pump can be installed at the bottom of the tank to reduce the upper and lower temperature difference during the sterilization process.
4. Refrigeration equipment can be added.
Application
Operation process：
Single tank pasteurization is small, there is a small tank at the bottom, sterilization tank hot water tank heating to about 85
degrees, sterilization process, cooling cold water access to the tank, the hot water in the tank will flow out with cold water,
the next sterilization cold water reheating to 85 degrees sterilization.
degrees, sterilization process, cooling cold water access to the tank, the hot water in the tank will flow out with cold water,
the next sterilization cold water reheating to 85 degrees sterilization.

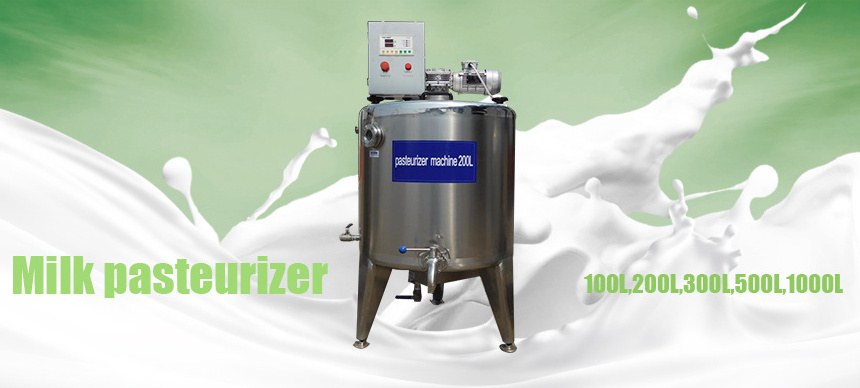

Product Images
There are many others model, like single drum,water cooling and ice cooling way for your choose.
