Quick Details
-
Brand Name:
-
Okay Energy
-
Model Number:
-
OKNY-2
-
Material:
-
stainless steel
-
Standard Accessories:
-
a torch, four copper nozzles, a needle rotary joint, a needle
-
Optional Nozzles:
-
Big copper nozzle (0.8mm),Big copper nozzle (1.0mm)
-
Optional Needles:
-
Single needle and double needle
Quick Details
-
Type:
-
Welding Torch
-
Warranty:
-
1 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Okay Energy
-
Model Number:
-
OKNY-2
-
Material:
-
stainless steel
-
Standard Accessories:
-
a torch, four copper nozzles, a needle rotary joint, a needle
-
Optional Nozzles:
-
Big copper nozzle (0.8mm),Big copper nozzle (1.0mm)
-
Optional Needles:
-
Single needle and double needle

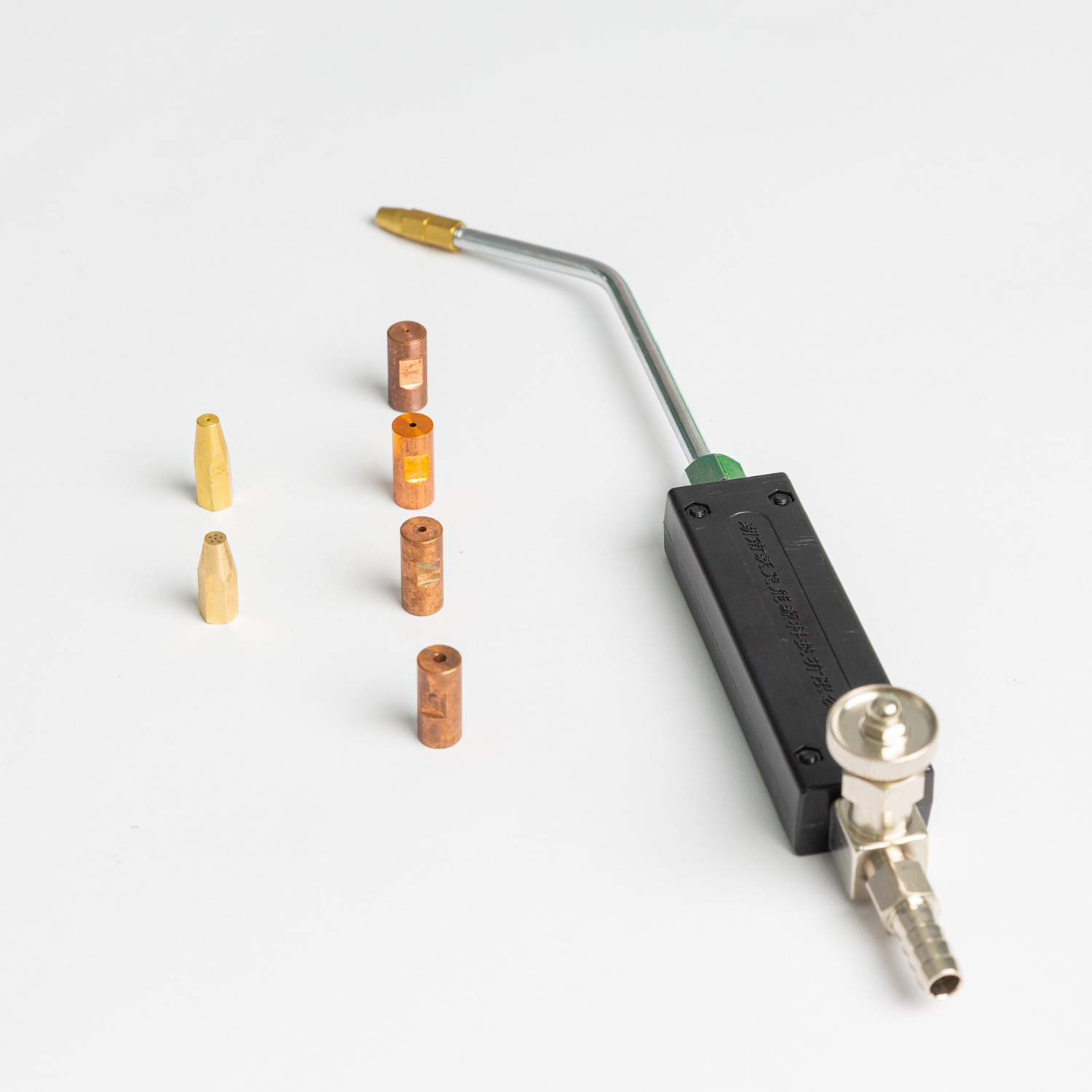

Mini Oxyhydrogen Anti-backfire Flashback Arrestor Brown Gas Flame Torch
We have many type, Optional by customer:
|
Model |
ID(mm) |
OD(mm) |
Model |
ID(mm) |
OD(mm) |
|
12G |
1.82 |
2.26 |
20G |
0.6 |
0.9 |
|
13G |
1.65 |
2.1 |
21G |
0.52 |
0.81 |
|
14G |
1.54 |
1.96 |
22G |
0.41 |
0.71 |
|
15G |
1.43 |
1.83 |
23G |
0.33 |
0.64 |
|
16G |
1.25 |
1.65 |
25G |
0.26 |
0.51 |
|
17G |
1.07 |
1.48 |
26G |
0.23 |
0.45 |
|
18G |
0.84 |
1.25 |
27G |
0.21 |
0.41 |
|
19G |
0.67 |
1.06 |
2.Operation Manual of brown gas torch
1) Connect the gas source to the flame torch by soft pipe.
2) Install the flame nozzle by Pliers
a.Grip the flame nozzle by Pliers
b. Squeeze the flame nozzle to the torch ,then the nozzle is install on the torch tightly
3) When the output pressure of gas is high than 0.05Mpa,open the switch of the flame torch, Ignition with a lighter.
4) Put out the fire by any one of the two ways:
a. Close the valve quickly
b. Blow out by compressed air
