Gangyuan Electronics was established
in 1994
and has
28 years
of manufacturing experience. For 28 years, it has been focusing on the reasearch and development and manufacture of
tact switch, micro switchs and other electronic switches
. More than
2000 products
. The company's registered capital is
34.48 million RMB
,and it has
3 modern standard workshops
. Covers a total area of
63148㎡
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gangyuan
-
Model Number:
-
PB22E09071-0406
-
Type:
-
Self Lock Push Button Switch
-
Contact Resistance:
-
≤100mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Operating Force:
-
230±70gf
-
Product Height:
-
22.25±0.2mm
-
Travel:
-
2.5±0.2mm
-
Return Force:
-
20gf Min
-
Operation life:
-
5,000 cycles
-
Button color::
-
White
-
Packing:
-
Bulk
-
Certification:
-
ISO9001,ISO14001,CQC,CCC,ENEC,ROHS
Quick Details
-
Protection Level:
-
Safe
-
Max. Current:
-
0.1A
-
Max. Voltage:
-
DC 30V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gangyuan
-
Model Number:
-
PB22E09071-0406
-
Type:
-
Self Lock Push Button Switch
-
Contact Resistance:
-
≤100mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Operating Force:
-
230±70gf
-
Product Height:
-
22.25±0.2mm
-
Travel:
-
2.5±0.2mm
-
Return Force:
-
20gf Min
-
Operation life:
-
5,000 cycles
-
Button color::
-
White
-
Packing:
-
Bulk
-
Certification:
-
ISO9001,ISO14001,CQC,CCC,ENEC,ROHS
Product Description
|
Product Name
|

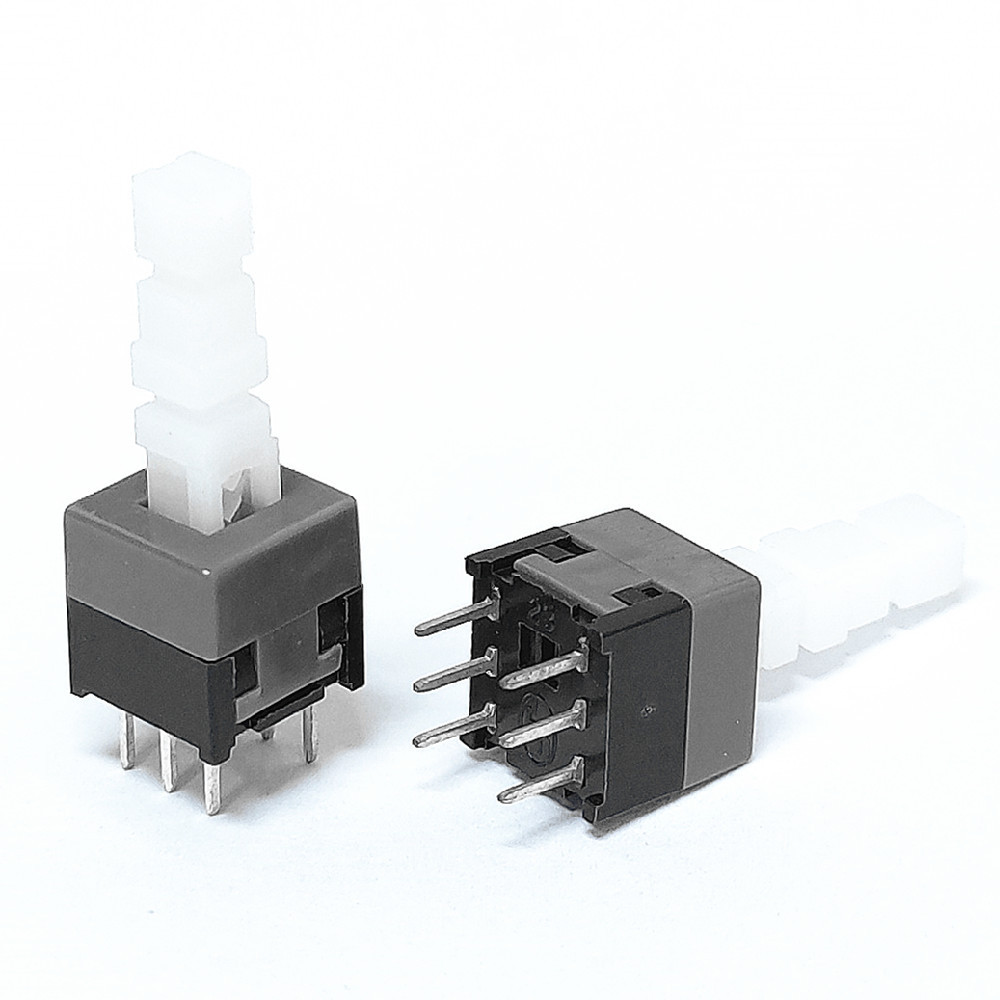

Self Lock Push Button Switch DPDT
|
|
Product height
|
22.25±0.2mm
|
|
Operating force
|
230±70gf
|
|
Package
|
Bulk
|
|
What is a self locking push button ?
|
Self-lock switch normally means switch with built-in mechanical lock function. Press down the switch and then release, it will not fully bounce up because it is locked.
|
