1000L foldable collapsible ibc tank

FOB Reference Price: Get Latest Price

≥1 Sets

US $80

≥10 Sets

US $70

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: WYD

Weight:: 68

Product Name:: Flexible IBC

Material:: PE Film+PP Fabric+Stainless steel

Usage:: Liquid storage and transportation

Certificate:: ISO9001:2015, Halal, KOSHER, etc.

Insurance:: 5 Million Product Liability Insurance

Loading and Discharging Type:: TLBD TLTD

Shape:: Square

Application:: Food liquid, non-food liquid, non-hazardous chemicals transport

Quick Details

Capacity:: 1000L, 500L 900L 1000L or customized

Max Working Pressure(MPa):: 0.4 MPa

Marketing Type:: New Product 2021

Place of Origin:: Shandong, China

Brand Name:: WYD

Weight:: 68

Product Name:: Flexible IBC

Material:: PE Film+PP Fabric+Stainless steel

Usage:: Liquid storage and transportation

Certificate:: ISO9001:2015, Halal, KOSHER, etc.

Insurance:: 5 Million Product Liability Insurance

Loading and Discharging Type:: TLBD TLTD

Shape:: Square

Application:: Food liquid, non-food liquid, non-hazardous chemicals transport

Product Description

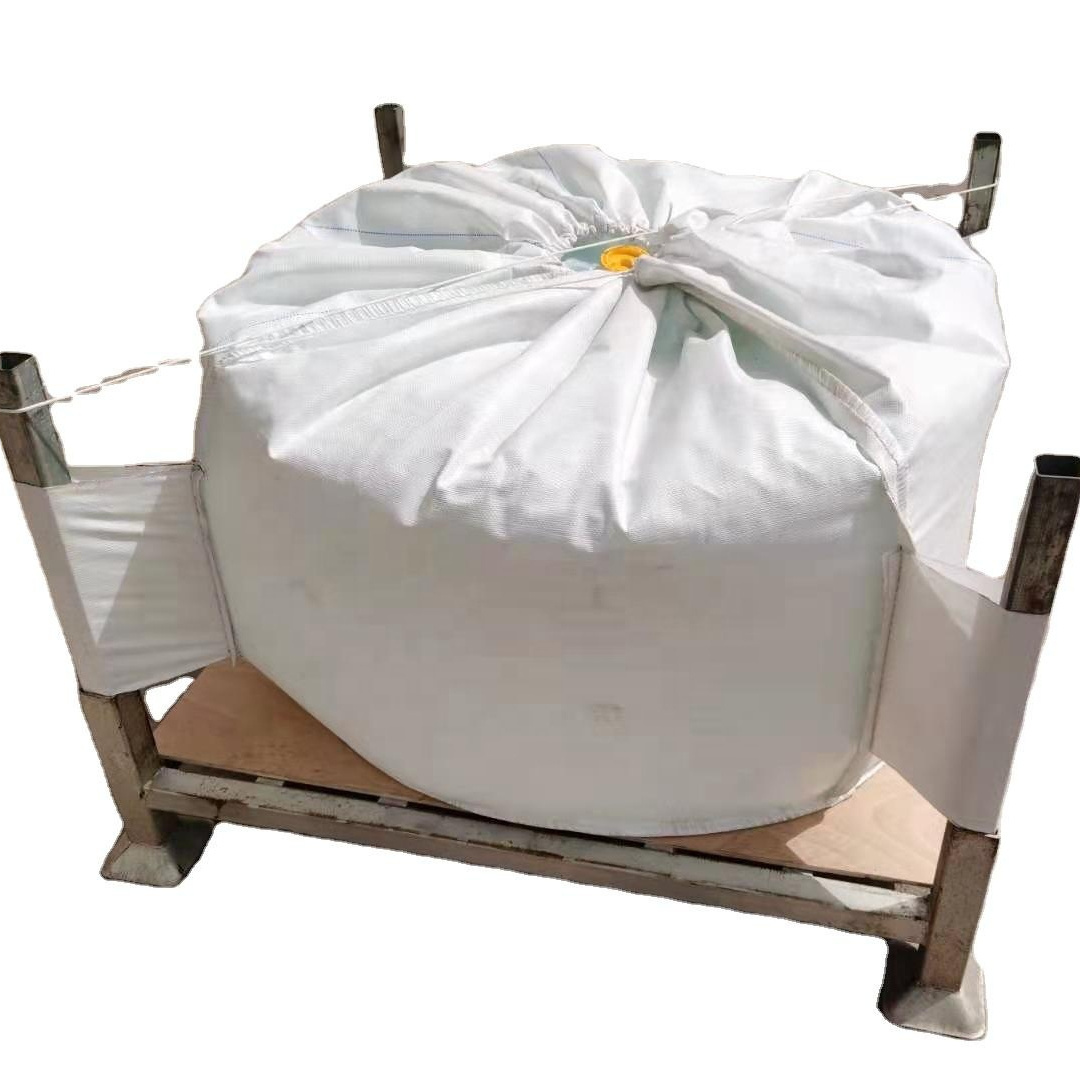

WYD foldable IBC tank is a new kind of square or oval liquid container which is composed of external metal pallet frame and internal liquid bag. The materials of the liquid bag are PE and PP.

The volume of each liquid bag is 500L~1000L.

It can also be customized according to customers' needs.

It's a patent protected product especially used for intermediate bulk liquid transport and its an economic substitute of plastic tote, steel board IBC and carton board IBC.

Material: imported food grade PE+high density woven PP fabric Accessories included:

1 PE bag

1 PP bag

one wooden board

one stainless steel Pallet

4 vertical stainless steel pipes

4 stainless steel transverse pipes

one inner reinforced wall between the PE bag and PP bag

2 valves

one lead seal.

WYD new type FIBC is widely used in food (wine, red wine, yellow rice wine, edible oil, coconut oil, castor oil, palm oil,
concentrated fruit juice, egg juice, milk and diary products, drinks, drinking water, sorbitol, syrup, soy sauce and other liquid
condiments),
industrial oil (grease, lubricant oil, additives, glycerin, transformer oil, high oil fatty acid, etc.)
Non-hazardous chemicals: liquid fertilizer, surfactant, plasticizer, synthetic resin, food additive, detergent, synthetic latex,
polyol, rubber, polyether, liquid chemicals, etc.)

Specification

Product name	Material	Loading method	Valve diameter	Capacity	Gross weight
Flexible IBC	Imported PE+PP	TLTD/TLBD	4 inches/2.5 inches	500L-1000L	45kg

Standard accessories:

1 piece of PP outer bag

1 piece of inner PE bag

1 pallet

4 pieces of steel pipe

1 piece of wooden pad

1 piece of lead seal

1 piece of foam board

Optional accessories:

1 piece of baffle plate

4 piece of steel pipe

8 pieces of screws

Applications

a. Food grade product	b. Industrial liquid	c. Non-hazardous chemicals
Palm oil	Base oil	Plasticizer
Sunflower oil	Machine oil	Synthetic resin
Soybean oil	Lubricant	Cleaner
Olive oil	Transformer fluid	Eradicator shampoo
Rapeseed oil	Drilling mud oil	Disinfector
Fish oil	Bunker oil	Surfactant
Wine	While oil	Polybasic alcohol
Water	Softeners	Feed additives
Juice	Hydraulic fluid	Sorbitol
Milk	Industrial gear oil	Polyol
Concentrates	High oil fatty acid	Glycerin
Egg white	Mineral oil	Adhesives
Lard	Printing oil	Ethanediol glycol
Beverage	Detergent	Sweeteners
Soy sauce	Paraffine	Water based paint
Syrup	Wax	Fatty acid
Fruit jam	Inks	Paper pulp
Glucose	Latex	Fertilizers
