Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX/OEM
-
Model Number:
-
YC-W716GACHZ35A
-
Warranty:
-
2 Years
-
Type:
-
LPR Camera
-
Image Sensor:
-
1/2.8" CMOS Sensor
-
Pixel:
-
25fps@5MP(2592*1944);25fps@6MP(3072*2048)
-
IR Leds:
-
4PCS Array White Leds
-
IR Distance:
-
70-80M
-
Lens:
-
7-22mm Motorized Lens
-
Solution:
-
SSC30KQ+IMX335
-
Feature:
-
P2P/POE/Waterproof/Mobile Viewing/LPR CCTV Camera
-
APP:
-
VideoLink
-
Certificates:
-
CE, FCC, RoHS, ISO9001
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, Waterproof / Weatherproof
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX/OEM
-
Model Number:
-
YC-W716GACHZ35A
-
Warranty:
-
2 Years
-
Type:
-
LPR Camera
-
Image Sensor:
-
1/2.8" CMOS Sensor
-
Pixel:
-
25fps@5MP(2592*1944);25fps@6MP(3072*2048)
-
IR Leds:
-
4PCS Array White Leds
-
IR Distance:
-
70-80M
-
Lens:
-
7-22mm Motorized Lens
-
Solution:
-
SSC30KQ+IMX335
-
Feature:
-
P2P/POE/Waterproof/Mobile Viewing/LPR CCTV Camera
-
APP:
-
VideoLink
-
Certificates:
-
CE, FCC, RoHS, ISO9001

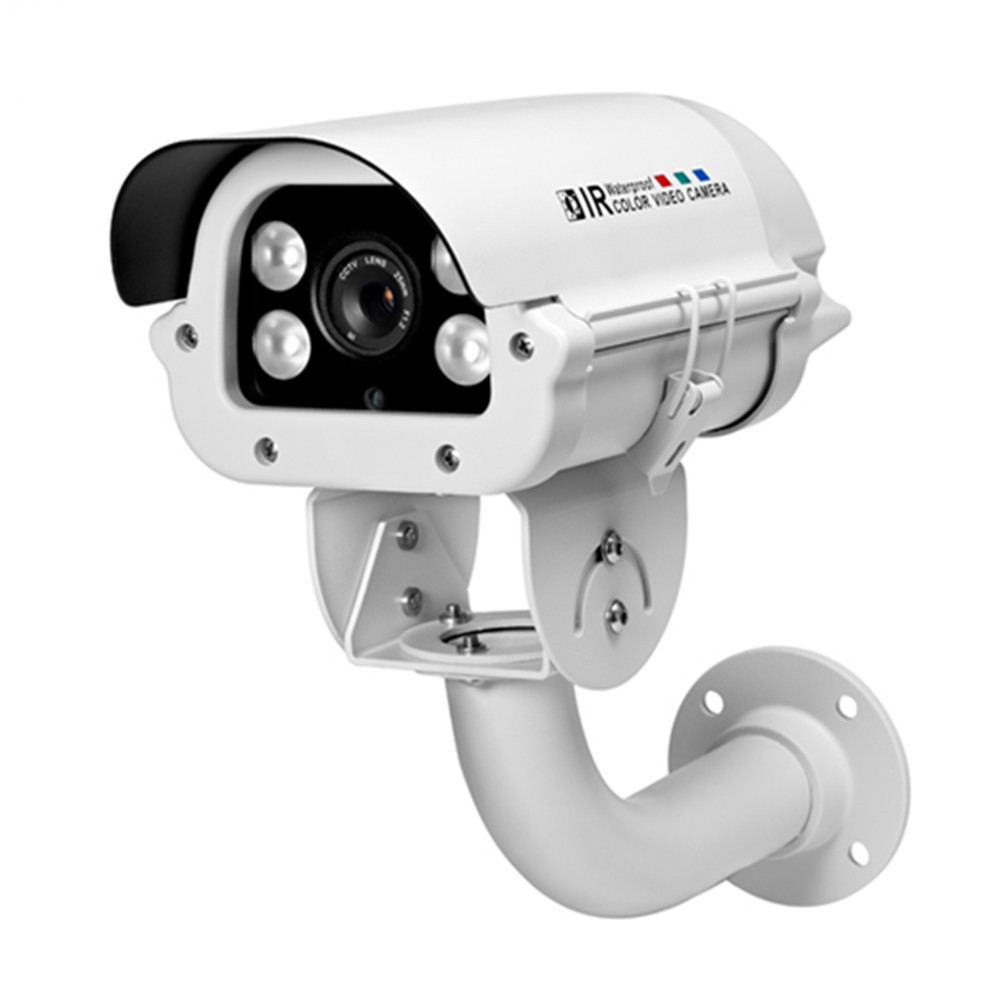

Hot Selling 5MP 6MP Night Vision Motorized Lens PoE LPR CCTV IP Camera 4PCS Array White Leds Car Licence Plate Capture
Motorized Varifocal Lens Model
7-22mm 3X AF Zoom
Features:
Ø 1/2.8" CMOS S ensor
Ø 5MP resolution 2560x1944P
Ø Low illumination 0.01Lux
Ø Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
Ø D-WDR,Mirror, rotate, Defogging
Ø Multiply Style OSD Overlay,Motion Detection, Privacy Mask
Ø RTSP and Ovif 17.06 compatible with many third-party NVR
Ø H.264/H.265 dual-stream media server
Ø Easy-to-use P2P Cloud service
Ø Support user authentication, video data encryption
Ø Support Alarm Snapshot to Email and FTP
Ø Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
Ø RJ45 100mbps network port, IEEE802.3af PoE
Ø Lightning protection 4000V
Ø Strong water-proof housing, IP67
Ø 4PCS Array White Leds, IR distance 70-80 meters
Ø HD 7-22mm Motorized Lens
Technical Specifications
|
Model |
YC-W716 G ACHZ35A |
|
Camera |
|
|
Image Sensor |
1/2.8"CMOS |
|
Effective Pixels |
5 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux,F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
|
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream:
Sub stream: 25fps@D1/VGA/360P/CIF, etc. |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
Built-in Mic |
Optional |
|
OSD Overlay |
Title and Time overlay |
|
IR Led |
|
|
IR Led |
4PCS Array White Leds |
|
IR Distance |
70-80M |
|
Lens |
|
|
Focal length |
7-22mm Motorized Lens |
|
Optional Function |
|
|
PoE |
|
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
OVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
Connection 1: Working with POE NVR
Connection 2 : Working with POE Switch + Non-POE NVR
