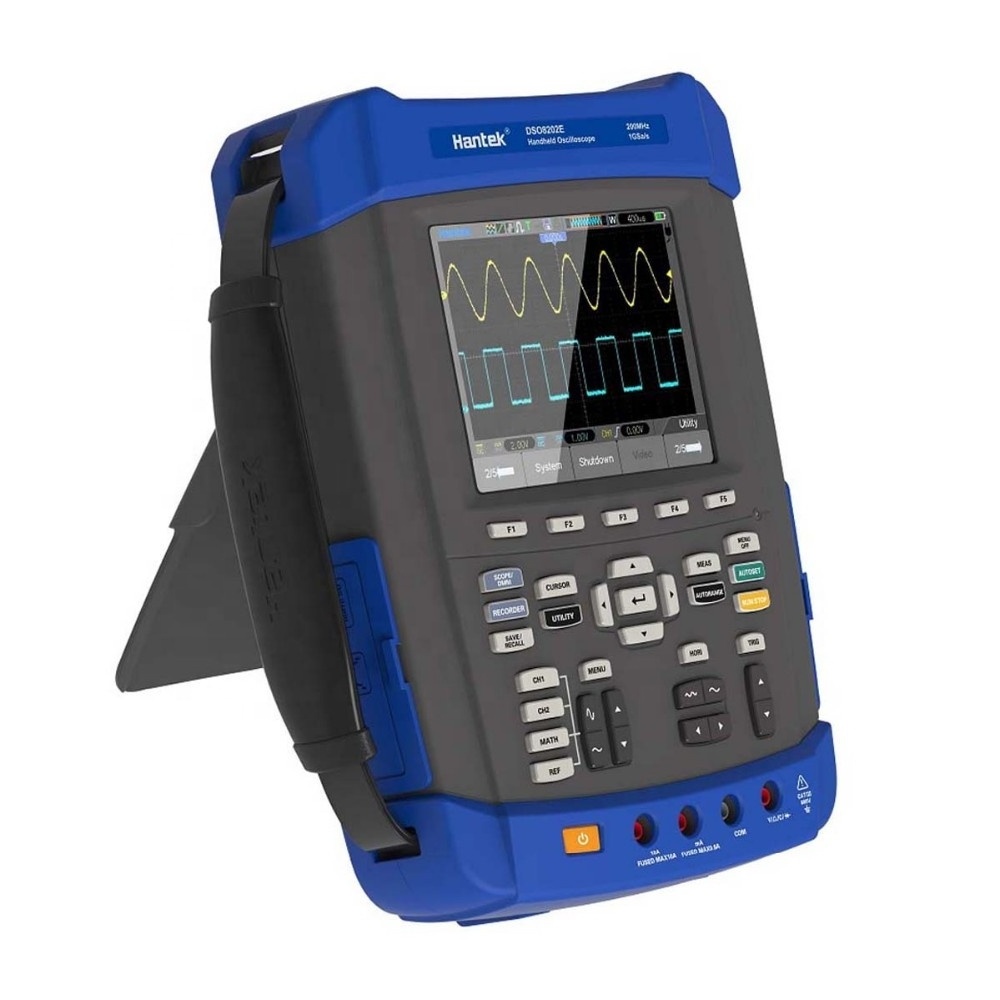

Quick Details
-
Model Number:
-
DSO8072E
-
Product Name:
-
DSO8072E
-
Inputs Coupling:
-
AC, DC, GND
-
Inputs Impendance:
-
1MΩ±2% ii20pF±3pF
-
Probe Attenuation:
-
1X, 10X
-
Sample Rate Range:
-
1GS/s
-
Waveform Interpolation:
-
(sin x)/x
-
Record Length:
-
2M
-
Bandwidth:
-
70MHz
-
Rise Time at BNC( typical):
-
5ns
-
Bandwidth Limit:
-
20MHz
Quick Details
-
Type:
-
Oscilloscope
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hantek
-
Model Number:
-
DSO8072E
-
Product Name:
-
DSO8072E
-
Inputs Coupling:
-
AC, DC, GND
-
Inputs Impendance:
-
1MΩ±2% ii20pF±3pF
-
Probe Attenuation:
-
1X, 10X
-
Sample Rate Range:
-
1GS/s
-
Waveform Interpolation:
-
(sin x)/x
-
Record Length:
-
2M
-
Bandwidth:
-
70MHz
-
Rise Time at BNC( typical):
-
5ns
-
Bandwidth Limit:
-
20MHz
| Model | DSO8072E | DSO8102E | DSO8152E | DSO8202E |
| Acquisition | ||||
| Sample Modes | Real-Time Sample | |||
| Acquisition Modes | ||||
| Normal | Normal data only | |||
| Peak Detect | High-frequency and randon glith capture | |||
| Average | Wavefom Average, selectable 4,8,16,32,64,128 | |||
| Inputs | ||||
| Inputs Coupling | AC, DC, GND | |||
| Inputs Impendance | 1MΩ±2% ii 20pF±3pF | |||
| Probe Attenuation | 1X, 10X | |||
| Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |||
| Maximum Input Voltage |
CAT I and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×) |
|||
| Horizontal System | ||||
| Sample Rate Range | 1GS/s | |||
| Waveform Interpolation | (sin x)/x | |||
| Record Length | 2M | |||
| SEC/DIV Range | 4ns/div~2000s/div, in a 2, 4, 8 sequence | 2ns/div~2000s/div, in a 2, 4, 8 sequence | ||
|
Sample Rate and
Delay Time Accuracy |
±50ppm over any ≥ 1ms time interval | |||
| Scanning Speed Range |
4ns/div to 8ns/div; (-8div x s/div) to 40ms;
20ns/div to 80μs/div;(-8div×s/div) to 40ms; 200μs/div to 40s/div;(-8div×s/div) to 400s; |
2ns/div to10ns/div; (-4div×s/div) to 20ms; | ||
|
Delta Time Measurement Accuracy
(Full Bandwidth) |
Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 |
|||
| Vertical System | ||||
| Vertical Resolution | 8-bit resolution, all channel sampled simultaneously | |||
| Volts Range | 2mV/div to 100V/div at input BNC | |||
| Bandwidth | 70MHz | 100MHz | 150MHz | 200MHz |
| Rise Time at BNC( typical) | 5ns | 3.5ns | 2.3ns | 1.8ns |
|
Analog Bandwidth in
Normal and Average modes at BNC or with probe, DC Coupled |
±400V(100V/div-20V/div);
±50V(10V/div-5V/div); ±40V(2V/div-500mV/div); ±2V(200mV/div-50mV/div); ±400mV(20mV/div-2mV/div); |
|||
| Math | +, -, *, /, FFT | |||
| FFT | Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point | |||
| Bandwidth Limit | 20MHz | |||
| Low Frequency Response (-3db) |
≤10Hz at BNC
|
|||
