CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery
CK-L Sprag Type one way clutch coupling for Printing machinery

CK-L Sprag Type one way clutch coupling for Printing machinery

FOB Reference Price: Get Latest Price
≥1 Pieces
US $45
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shaanxi, China
Width:
70mm~112mm
Hardness HRC:
58~62
Torque range:
86N.m~1240N.m
Content of raw materials:
GCr15
Application:
Printing and packaging machinery, automation equipment
Package:
carton, wooden case
Product name:
CK-L Sprag Type one way wheel bearing for Printing machinery
Service:
OEM Customized Services
Number of Row:
Single Row
Inner size:
15 mm ~ 45 mm

Quick Details

Structure:
Disc
Standard or Nonstandard:
Standard
Material:
Steel
Place of Origin:
Shaanxi, China
Width:
70mm~112mm
Hardness HRC:
58~62
Torque range:
86N.m~1240N.m
Content of raw materials:
GCr15
Application:
Printing and packaging machinery, automation equipment
Package:
carton, wooden case
Product name:
CK-L Sprag Type one way wheel bearing for Printing machinery
Service:
OEM Customized Services
Number of Row:
Single Row
Inner size:
15 mm ~ 45 mm

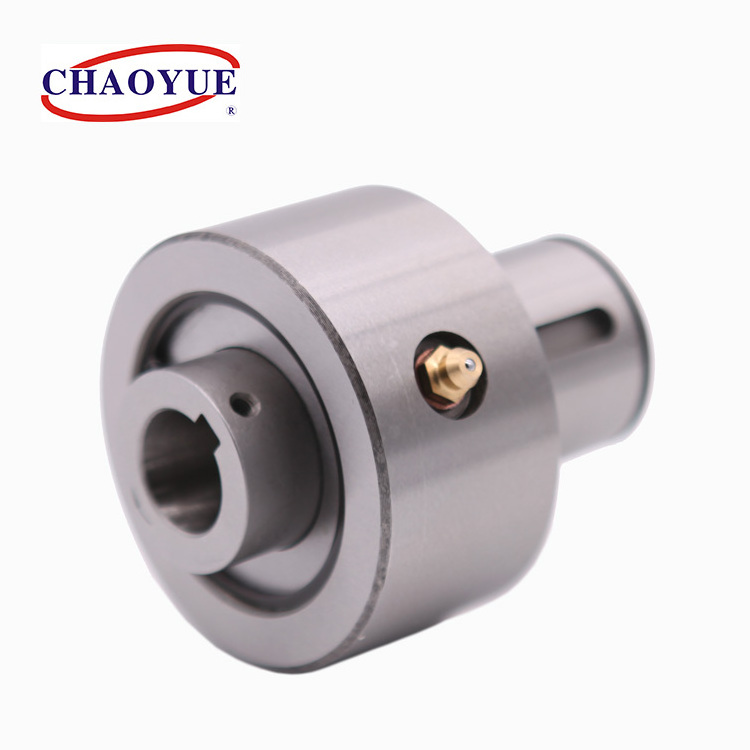

CK-L Sprag Type one way clutch coupling for Printing machinery

Product Description

Description:
Type CK-L is a sprag type freewheels, bearing supported. It mainly used in occasion of lower speed and insufficient space. It needs seal and grease when used.


This series can connect with gears, Sprocket. But can not bear flash and use as coupling. Please specify inner race direction of rotation seen from the A side.


This series extensive used in mechanism of packing, printing, weaving and so on, to realize overrunning, indexing and Backstop.

Parameter of CK-L Sprag Type one way clutch coupling for Printing machinery

TYPE

RATED

TORQUE

[N·m]

OVERRUNNING

SPEEDS [r/min]

DIMENSION

WEIGHT

[kg]

INNER

RACE

OUTER

RACE

d

[H7]

d 1

[F8]

D

D 1

[h7]

F H L m n b w ×t w b n ×t n
CK-L1560 86 1260 765 15 15 60 32 25 32 70 1.3 21 6×3.5 4×1.5 0.58
CK-L2072 225 1050 680 20 20 72 38 33 38 82 1.7 29 6×3.5 6×2.8 1.17
CK-L2585 330 840 552.5 25 25 85 45 33 40 85 1.7 28 14×4.5 8×3.3 1.67
CK-L3085 330 840 550 30 30 85 48 35 35 85 1.7 31 8×4 8×3.3 1.78
CK-L3095 490 700 340 30 30 95 60 37 41 92 2.2 30 8×4 8×3.3 2.50
CK-L40115 900 560 255 40 40 115 65 37 50 100 2.7 30 12×5 12×3.3 3.60
CK-L45135 1240 490 255 45 45 135 75 41 54 112 2.7 35 14×5.5 14×3.8 6.00
