- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HN
-
Voltage:
-
380V
-
Power:
-
7.5kw+5.5kw
-
Dimension(L*W*H):
-
9*1.3*1.3
-
Weight:
-
5500 kg
-
Product name:
-
Purlin Roll Forming Machine
-
use:
-
Purlin
-
speed:
-
15m/min
-
feeding width:
-
1220mm, 915mm, 1200mm, 1000mm, 1250mm
-
rolling thickness:
-
0.3-0.8mm
-
usage:
-
prefab house
-
Suitable material:
-
Galvanized Steel Coil
-
After sales service provided:
-
online or request
-
Cutting type:
-
Hydralic Cutting
-
length:
-
Cut to length
Quick Details
-
Marketing Type:
-
New Product 2021
-
Production Capacity:
-
8-12
-
Place of Origin:
-
China
-
Brand Name:
-
HN
-
Voltage:
-
380V
-
Power:
-
7.5kw+5.5kw
-
Dimension(L*W*H):
-
9*1.3*1.3
-
Weight:
-
5500 kg
-
Product name:
-
Purlin Roll Forming Machine
-
use:
-
Purlin
-
speed:
-
15m/min
-
feeding width:
-
1220mm, 915mm, 1200mm, 1000mm, 1250mm
-
rolling thickness:
-
0.3-0.8mm
-
usage:
-
prefab house
-
Suitable material:
-
Galvanized Steel Coil
-
After sales service provided:
-
online or request
-
Cutting type:
-
Hydralic Cutting
-
length:
-
Cut to length

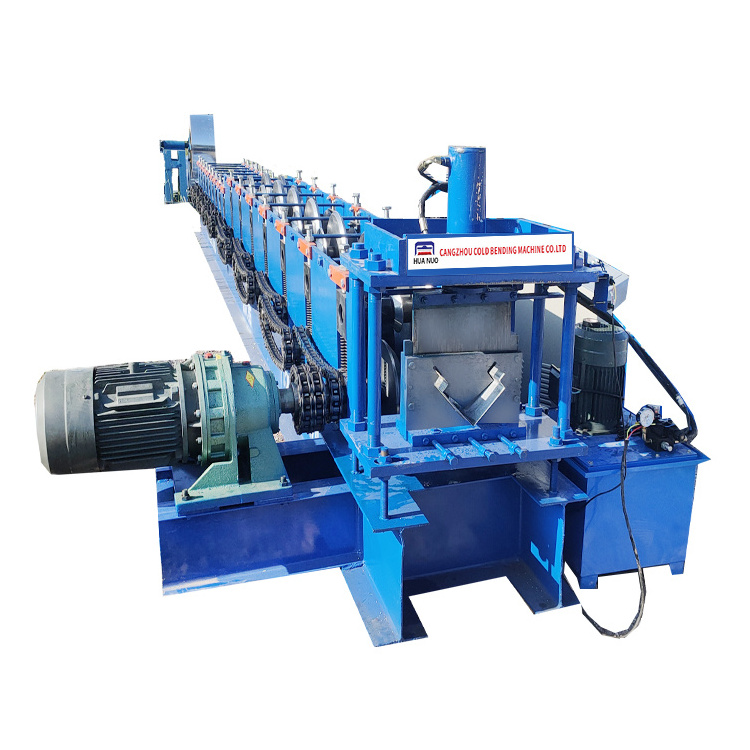

Best rate Price Prefabricated Building Prefab House frame Roll Forming Making Machine maquinas
|
1 |
Power Requirement
|
Voltage |
(380V 50HZ),or according client require |
|
Main Motor power |
7.5kw |
||
|
Cutter power |
5.5kw |
||
|
2 |
Forming speed |
8-12m/min |
|
|
3 |
Forming stations |
16 rows |
|
|
4 |
Main Frame |
350H beam |
|
|
5 |
Sidewall thickness |
16mm |
|
|
6 |
Forming shaft diameter |
70mm 0.01mm-0.03mm(Grinding) |
|
|
7 |
Chains |
1inch chain drive |
|
|
8 |
Type of cutting |
Roll formed and length-set cutting |
|
|
9 |
Control system |
PLC control |
|
|
10 |
Install dimension(depend on the final design) |
9.0m×1.0m×1.3m |
|
|
11 |
Total weight (Approx) |
5.5T |
|
|
12 |
Roller |
High grade 45# steel, hard chrome plated |
|
|
13 |
Feeding system |
Guide type |
|
|
14 |
Cutting blade |
Cr12Mov |
|
|
15 |
Frequency changer |
Delta |
|
