PET bottled filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
3000X2150X2200MM
-
Weight:
-
3500 KG
-
Name:
-
water filling machine
-
Product name:
-
beverage bottling line
-
Function:
-
Bottle Washing Filling Capping
-
Processing Types:
-
Mineral
-
Material:
-
Stainless Steel 304/316
-
Usage:
-
Beverage Packaging
-
Capacity:
-
2000-30000bph
-
Bottle type:
-
PET Plastic Bottle
-
Filling material:
-
Flowing Liquid
-
Control:
-
PLC+ Touch Screen
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DATONG
-
Dimension(L*W*H):
-
3000X2150X2200MM
-
Weight:
-
3500 KG
-
Name:
-
water filling machine
-
Product name:
-
beverage bottling line
-
Function:
-
Bottle Washing Filling Capping
-
Processing Types:
-
Mineral
-
Material:
-
Stainless Steel 304/316
-
Usage:
-
Beverage Packaging
-
Capacity:
-
2000-30000bph
-
Bottle type:
-
PET Plastic Bottle
-
Filling material:
-
Flowing Liquid
-
Control:
-
PLC+ Touch Screen
Product Description
We can provide whole solution for water. thank you for interested in DATONG machines. Let us crate value for you!

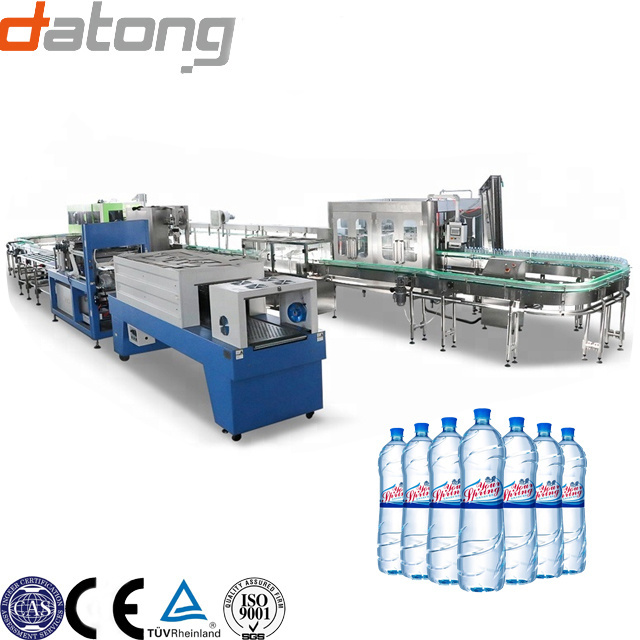

Water Filling Line
Datong Machinery can provide whole producing and packaging solutions for water,pure water,mineral water,spring water,drinking water etc.
It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor.it is easier and more simple to change over bottle size. Adopt neck handling technology to convey bottles.there is no need to adjust the height of equipment and only need to change some spare parts.
By 3-in-1 monoblock ,the bottle goes through washing,filling and capping with little abrasion,and the transferring is stable,bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.the bottle-out starwheel is helical structure.while changing over bottle size. It is no need to adjust bottle-out conveyor height.
Technical parameters:
|
Mode
|
CGF14-12-5
|
CGF16-16-6
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
CGF60-60-15
|
|||||||
|
Production
capacity(B/H) |
2000-3500
|
3500-5000
|
5000-7000
|
7000-12000
|
12000-15000
|
15000-20000
|
20000-24000
|
24000-30000
|
|||||||
|
Suitable bottle shape
|
Circular or Square
|
|
|
|
|
|
|
|
|||||||
|
Bottle
diameter(mm) |
Φ50-Φ95
|
|
|
|
|
|
|
|
|||||||
|
Bottle
height(mm) |
150-310
|
|
|
|
|
|
|
|
|||||||
|
Washing medium
|
Aseptic Water
|
|
|
|
|
|
|
|
|||||||
|
Total power (kw)
|
2
|
3.5
|
4
|
5.5
|
7.5
|
11
|
15
|
20
|
|||||||
|
Weight (kg)
|
2200
|
2800
|
3000
|
4500
|
6000
|
9000
|
15000
|
18000
|
|||||||
|
Overall
dimensions(mm) |
2050*1550*2200
|
2400*1750*2200
|
2550*1850*2200
|
3000*2150*2200
|
4200*2700*2400
|
4700*3200*2400
|
6500*3350*2400
|
7200*3650*2600
|
|||||||
Detailed Images
Water washing part:
Rinsing gripper dial, separating water dial, water trough.
Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second
contamination.
Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second
contamination.
Water filling part:
Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling
speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
Capping part:
Screwing capper, cap sorter, falling cap guide.
Capping head have itself scale. Easier adjust and count.
Capping head have itself scale. Easier adjust and count.
Related Products
water treatment system
Process: Booster pump, sand filter, active carbon filter, sodium filter,
precision
filter ,RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
Bottle blowing machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide
application for blowing mineral water bottles, soda bottles,cola bottles.
application for blowing mineral water bottles, soda bottles,cola bottles.
Our company &service
Before Sales
1.Answer your any question on us within 24 hours.
2.Supply all information you required.
3.Machines video for reference
4.Welcome to visit factory
On Sales
1.Update production progress each week
2.Sending machines pictures on production
3.Machines testing running over 8 hours, and sending testing videos
After Sales
1.engineer arranged to install machines
2.Spare Parts provided
3.After sales hotline: 0086-512-58662088
Packing & Delivery
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
Give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume; bottle sharp. bestly give me the bottle picture.
4.the single machine or the whole line.
So that I can make suitable proposal for you.
