Quick Details
-
Computerized:
-
Yes
-
Place of Origin:
-
Jiangsu, China
-
Model:
-
SG3-80S
-
Knitting size:
-
80inch
-
Net weight:
-
1200kg
-
Gauge:
-
3GG,5GG,7GG,8GG,9GG,10GG,12GG,14GG,16GG ,18GG
-
Knitting speed:
-
Max 1.6m/s
-
Voltage:
-
220V
Quick Details
-
Type:
-
flat
-
Knitting Style:
-
Flat
-
Knitting Method:
-
Single
-
Computerized:
-
Yes
-
Place of Origin:
-
Jiangsu, China
-
Model:
-
SG3-80S
-
Knitting size:
-
80inch
-
Net weight:
-
1200kg
-
Gauge:
-
3GG,5GG,7GG,8GG,9GG,10GG,12GG,14GG,16GG ,18GG
-
Knitting speed:
-
Max 1.6m/s
-
Voltage:
-
220V

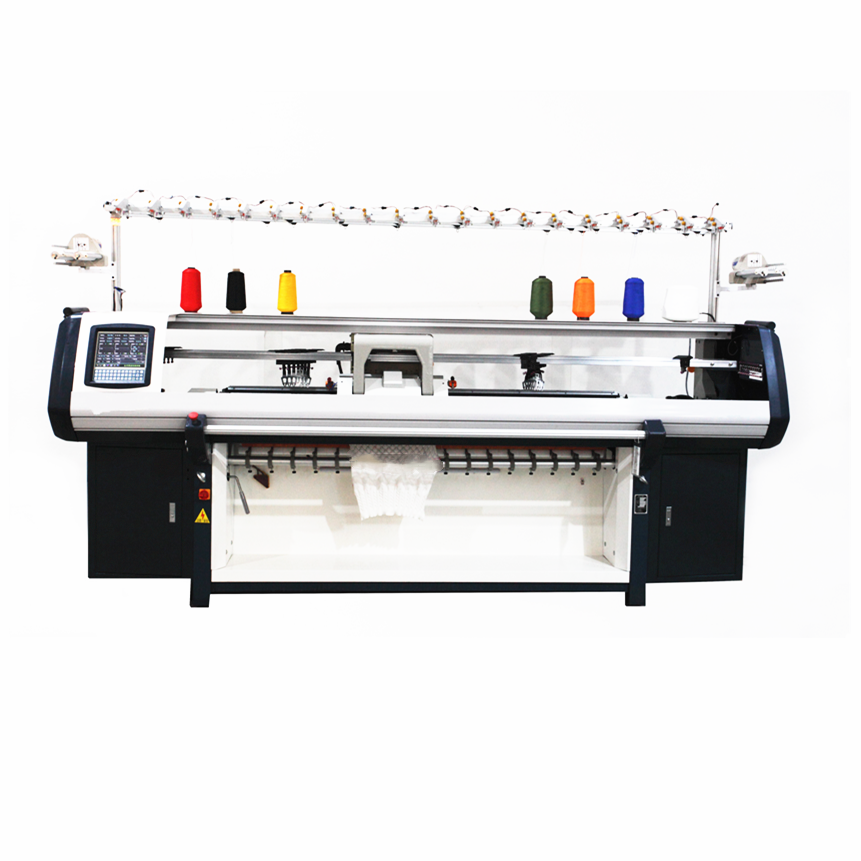

Single carriage with three system raid carriage return, stable quality, multi-functions, improves the efficiency about 20%. With the dynamic control technology, same line can achieve the effect of different density. It is suitable for woven sweaters, scarves, hats and clothing accessories for silk, spun silk, synthetic yarn, wool, acrylic fibers,blending, yarn and other raw materials.
Touch Screen
Humanized design control interface large memory capacity, can store about 1000 patterns, for tens of thousands of lines of complex patterns can also be read quickly without waiting. Stable performance make the operation more convenient, easy to learn and understand.
Feed yarn device
Positive Yarn feeder could reduce resistance while the yarn is moving, is especially suitable for fabric with low elasticity and brittleness such as cashmere yarn, rabbit hair yarn, to make the fabric even and improve knitting efficiency.
Yarn carrier
The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position of the yarn nozzle.
Infrared probe alarm device
The probe alarm device breaks through the characteristics of the flat knitting machine in which the probe only swings from side to side to realize its detection function. The device can make the detection function complete safe and effective, avoid the normal operation of the damaged knitting fabric, and improve the knitting quality and work efficiency.
Automatic oil supply system
Adopt automatic oil supply system, break through the function characteristic of manual oil the device is controlled by the system to automatically oil, reduce fuel consumption, thus saving trouble lock stop manual oil brush, improve the working efficiency of the machine. At the same time, it also avoids various mechanical faults caused by lack of lubricating oil, reduce loss and improves economic efficiency.
Yarn storage device
Yarn storage device between yarn spool and weaving system having Full-automatic and high-efficient shortens the trip of yarn prestorage function can detect broken yarn effectively, give an alarm in time and ensure the quality of fabrics farthest.
Contact us and we choose the most reasonable one !
