Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
as request
-
Weight:
-
750 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor Power:
-
Chinese famous brand or as required
-
Capacity:
-
60-750 t/h
-
Spare Parts:
-
Supply for whole year
-
Material:
-
Carbon steel
-
Installation:
-
Guide to install
-
Application:
-
Ore, stone, coal, ore, quarry
-
Max Feeding Size:
-
600 mm
-
Keywords:
-
mobile trommel screen
Quick Details
-
Production Capacity:
-
100T/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jinma
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
as request
-
Weight:
-
750 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor Power:
-
Chinese famous brand or as required
-
Capacity:
-
60-750 t/h
-
Spare Parts:
-
Supply for whole year
-
Material:
-
Carbon steel
-
Installation:
-
Guide to install
-
Application:
-
Ore, stone, coal, ore, quarry
-
Max Feeding Size:
-
600 mm
-
Keywords:
-
mobile trommel screen
Placer Gold Wash Plant Rotary Small Mini Mobile Trommel Screen For Sale
1.Placer Alluvial Gold Trommel Wash Plant
---Gold mining plant for alluvial gold, placer gold, gold sand
---Gold processing plant for river dirt gold with clay
---Working together with small sluice box or small shaking table for gold recovering.
---Alluvial gold, alluvial diamond mining
---River sand gold/diamond mining
---Deposit, clay gold /diamond mining
Made of high manganese steel sieve and polyurethane sieve or stainless steel to ensure the longest using life. Processing capacity ranges from 5t/h-500t/h. And fixed or mobile gold trommel wash plant can be customized. As the manufacturer, we can help you design the suitable equipment in your plant. This equipment includes the washing function and sieving function. The length of washing part and sieving part can be made as your request.
Gold washing plant technicial parameters:
|
Model |
Capacity
|
Power
|
Drum diameter (mm) |
Drum length (mm) |
Feed size (mm) |
Discharge size
|
Dimension
(L*W*H)
|
Weight (kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
≤300 |
0~100 |
2600×1400×1700 |
2200 |
|
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
|
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
|
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
|
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
|
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
|
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

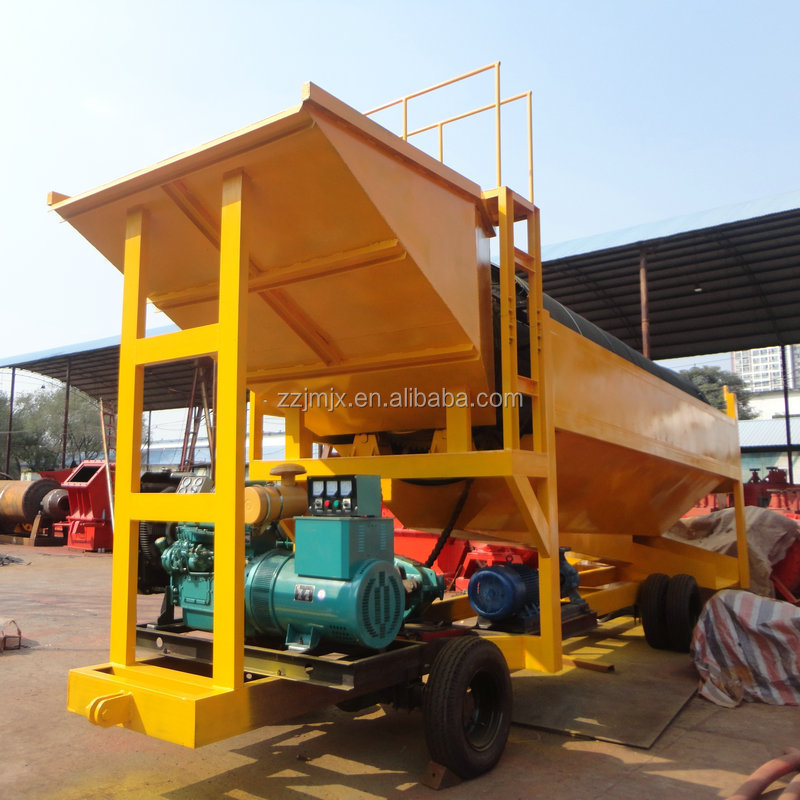

1>. This is GTS1020 mobile gold wash plant produced for America
2>. This is GTS1545 gold trommel wash plant for Ghana
3>. This is one 2060 GTS gold washing tommel plant for Australia
4>. The sieve has two layers, inner layer is screen hole 10mm, out side layer is 5mm.
Remark: the screen hole size can be customized as your request. The gold trommel wash plant (gold trommel screen) produced by Jinma mining machinery for Costa Rica, all the plant can be put on the trailer, and the diesel is CUMMINS
2> Gold washing plant produced by Jinma mining:(the making process)
3> The two layer drum screen for your reference
4> The diesel engine used for the machine (we can offer the customised diesel)
5> Gold washing plant from jinma clients' mine site
Zhengzhou jinma is the old brand professional design and manufacturing factory special for waste sorting machines. Always actively striving and pursuing progress, developing and producing various garbage sorting equipment; Strive to create a first-class level in research technology, artificial Intelligence, scientific management, and other fields.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
