house lifting equipment hydraulic jacks

FOB Reference Price: Get Latest Price

≥1 Pieces

US $150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: Gaodetec

Model Number:: STQ

Min Height:: 225mm

Product name:: Double acting hydraulic cylinders

Tonnage:: 50-1000 Ton

Stroke:: 100-500mm

Pressure:: 63MPa

Own body height:: 225-898mm

Extend height:: 325-1398mm

Outer diameter of oil cylinder:: 127-600mm

Dimension of plunger:: 70-320mm

Dimension of oil pump:: 100-450mm

Certification:: CE,ISO

Quick Details

Warranty:: 2 years

Type:: Hydraulic Jack

Max Height:: 1398mm

Place of Origin:: Henan, China

Brand Name:: Gaodetec

Model Number:: STQ

Min Height:: 225mm

Product name:: Double acting hydraulic cylinders

Tonnage:: 50-1000 Ton

Stroke:: 100-500mm

Pressure:: 63MPa

Own body height:: 225-898mm

Extend height:: 325-1398mm

Outer diameter of oil cylinder:: 127-600mm

Dimension of plunger:: 70-320mm

Dimension of oil pump:: 100-450mm

Certification:: CE,ISO

good selling house lifting equipment hydraulic jacks

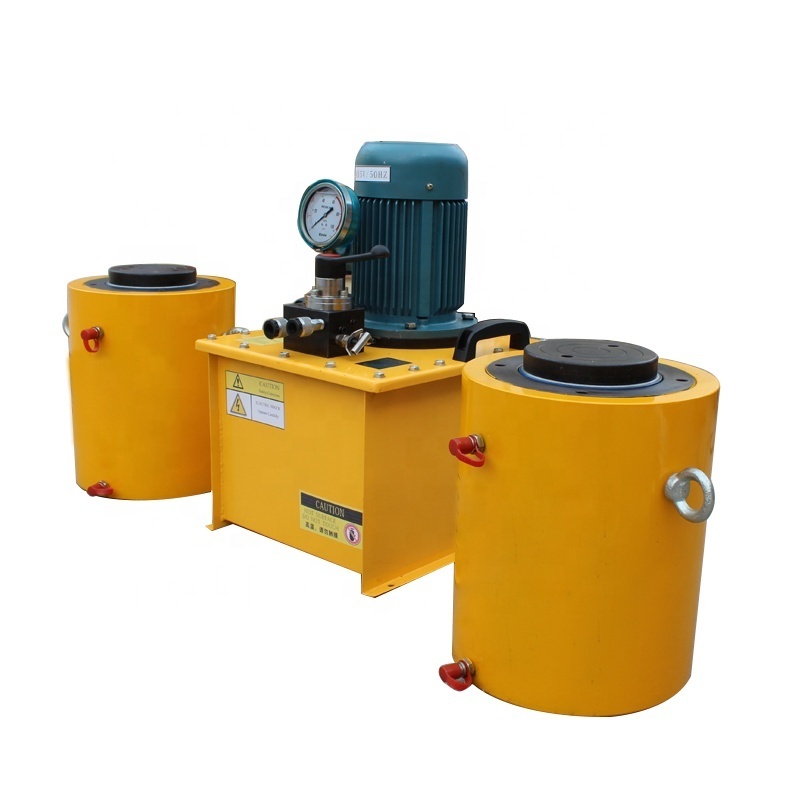

Product Show

Features

1. Integral stop ring provides piston blow-out protection
2. Double-acting for positive retraction
3. Baked enamel outside finish and plated pistons provide superior corrosion resistance
4. Safety valve in retract side of cylinder helps to prevent damage in case of accidental over-pressurization
5. Interchangeable, hardened grooved saddles are standard
6. Plunger wiper reduces contamination, extending cylinder life

We also can customize tonnage, stroke, height according to client’s requirements. If you want to know the price and discount, please contact us !

Technical Parameters

Model	Tonnage T	Stroke mm	Closed height mm	Extend height mm	Outer diameter of oil cylinder mm	Dimension of plunger mm	Dimension of oil pump mm
STQ50-100	50	100	225	325	127	70	100
STQ50-160			160	285				445
STQ50-200			200	325				525
STQ50-300			300	425				725
STQ50-500			500	625				1125
STQ100-100	100	100	250	350	180	100	140
STQ100-160			160	310				470
STQ100-200			200	350				550
STQ100-300			300	450				750
STQ100-500			500	650				1150
STQ150-100	150	100	260	360	219	125	180
STQ150-160			160	320				480
STQ150-200			200	360				560
STQ150-300			300	460				760
STQ150-500			500	660				1160
STQ200-100	200	100	285	385	240	150	200
STQ200-160			160	345				505
STQ200-200			200	385				585
STQ200-300			300	485				785
STQ200-500			500	685				1185
STQ320-100	320	100	310	410	330	180	250
STQ320-160			160	370				530
STQ320-200			200	410				610
STQ320-300			300	510				810
STQ320-500			500	710				1210
STQ400-100	400	100	355	455	380	200	290
STQ400-160			160	415				575
STQ400-200			200	460				660
STQ400-300			300	555				855
STQ400-500			500	755				1255
STQ500-100	500	100	360	460	430	200	320
STQ500-160			160	420				580
STQ500-200			200	460				660
STQ500-300			300	560				860
STQ500-500			500	760				1260
STQ630-100	630	100	417	517	500	250	360
STQ630-160			160	477				637
STQ630-200			200	517				717
STQ630-300			300	617				917
STQ630-500			500	817				1317
STQ800-100	800	100	488	588	560	300	400
STQ800-200			200	598				798
STQ800-300			300	698				998
STQ800-500			500	898				1398
STQ1000-100	1000	100	530	630	600	320	450
STQ1000-200			200	630				830
STQ1000-300			300	760				1060

Application

House lifting equipment hydraulic jacks can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push,pull and extrusion and kinds of working.
