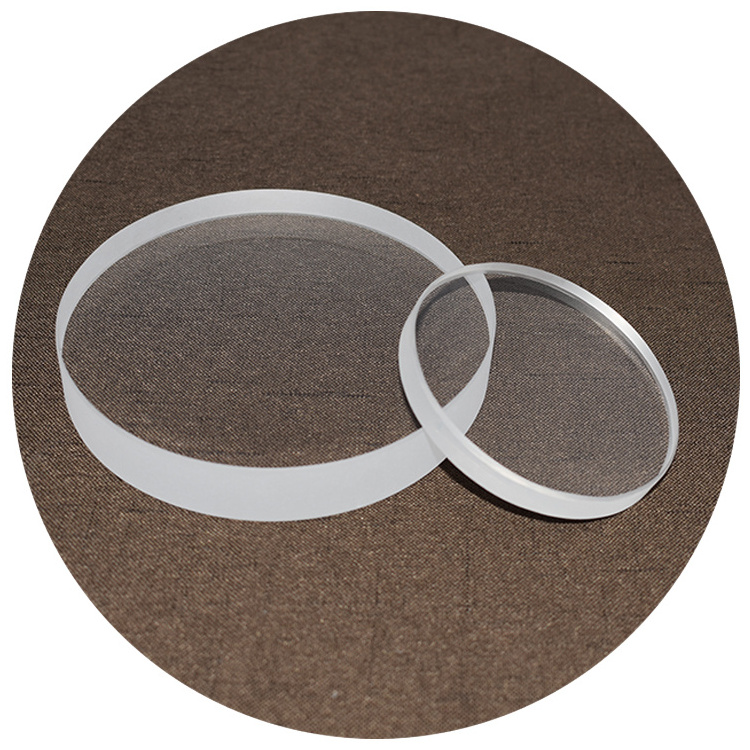

High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window
High Pressure Quartz Glass Sheet For Observation window

High Pressure Quartz Glass Sheet For Observation window

FOB Reference Price: Get Latest Price
≥100 Pieces
US $7
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
High Pressure Quartz Glass Sheet For Observation window
Material:
99.99% Pure Quartz
Size:
Customer's Requirement
Package:
Wooden Cases
Color:
Clear Transparent
Operating Temperature:
About 1200℃
Edges treatment:
Polished,Grinded
Keywords:
Sight Glass
Feature:
High temperature resistant

Quick Details

Type:
Clear Quartz Plate
Application:
Optical Instrument
Place of Origin:
Henan, China
Product name:
High Pressure Quartz Glass Sheet For Observation window
Material:
99.99% Pure Quartz
Size:
Customer's Requirement
Package:
Wooden Cases
Color:
Clear Transparent
Operating Temperature:
About 1200℃
Edges treatment:
Polished,Grinded
Keywords:
Sight Glass
Feature:
High temperature resistant

al

High Pressure Quartz Glass Sheet For Observation window

Quartz glass has a very low coefficient of thermal expansion, high temperature resistance, excellent chemical    stability, excellent electrical insulation, low and stable ultrasonic delay performance, the best UV-Vis spectral  performance and visible and near infrared spectroscopy Performance, and has a higher than ordinary glass  mechanical properties.

High Pressure Quartz Glass Sheet For Observation window

Density

2.203 g/cm3

Hardness

7 (Modified Scale); 5.36.5 (Mohs Scale)

Modulus of elasticity

63·103N·mm-2
Poisson's ratio 0. 18

Tensile strength

48.3 MPa

Compressive strength

>1.1 GPa

Bulk modulus

~37 GPa
Rigidity modulus 31 GPa

Poisson's ratio

0.16

Coefficient of thermal expansion

5.5×10-7 cm/(cmK) ( from 20°C to 320°C)

Thermal conductivity

1.3 W/(mK)

Softening point

1730°C

Annealing point

1180°C

Strain point

1075°C

Electrical resistivity

>1018 Ωm

Dielectric constant

3.75 at 20°C 1 MHz

High Pressure Quartz Glass Sheet For Observation window

Quartz glass is one of the indispensable excellent materials in modern technology, such as space technology,  atomic energy industry, defense equipment, automation system, and semiconductor, metallurgy, chemical industry,  electric light source, communication, light industry, building materials and so on.

Xinxiang Pan Chao Instrument Co., Ltd. is a collection of development, design, production, sales and

after-sales  service as one of the professional chemical glass instrumentation production company. Our  company specialized in  manufacturing quartz sight glass , quartz glass tube, quartz flange, high borosilicate  glass mirror, high borosilicate  glass tube, tempered sight glass , level gauge glass plate, stainless steel  flange sight glass and so on .

High Pressure Quartz Glass Sheet For Observation window

Our company produces glass mirror products in line with industry standards, with a clear transparency,  beautiful  appearance, small tolerance, high pressure high temperature, anti-crack, and other advantages,  widely used in  metallurgy, chemical, coal, heavy industry, shipbuilding, And other fields. Successfully build  "PCHAO" brand  industrial mirror glass.

Advanced production equipment and a number of production lines to ensure product quality and      production.  Professional team of engineers to create high-precision instrument products, and to undertake  glass mirror, as the  glass mirror, such as non-standard products such as custom processing. Professional  packaging division and long-  term cooperation in the freight forwarding company, so that our products safe  and lossless, convenient  transportation, affordable.

payment terms: L/C, T/T, D/A, D/P, Western Union, PayPal.

Note: Because there are some place or countries have a strict requirement  about the remit, please contact sales to confirm the best payment terms.
