Quick Details
-
Warranty(Year):
-
5-Year
-
Lamp Luminous Flux(lm):
-
12000~28000
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ABEST
-
Model Number:
-
A2102-highbay
-
Item Type:
-
linear high bay
-
Beam angle:
-
120 Degree
-
PF:
-
PF>0.96
-
Installation:
-
Suspended or Ceiling-mounted
-
Power:
-
80w~250w available
-
Dimension:
-
1200*150*68mm / 4ft
-
Function:
-
0-10V dimming, Dali, Microwave sensor, emergency
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
165
-
Lamp Body Material:
-
Aluminum Alloy
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Lamp Luminous Flux(lm):
-
12000~28000
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ABEST
-
Model Number:
-
A2102-highbay
-
Item Type:
-
linear high bay
-
Beam angle:
-
120 Degree
-
PF:
-
PF>0.96
-
Installation:
-
Suspended or Ceiling-mounted
-
Power:
-
80w~250w available
-
Dimension:
-
1200*150*68mm / 4ft
-
Function:
-
0-10V dimming, Dali, Microwave sensor, emergency

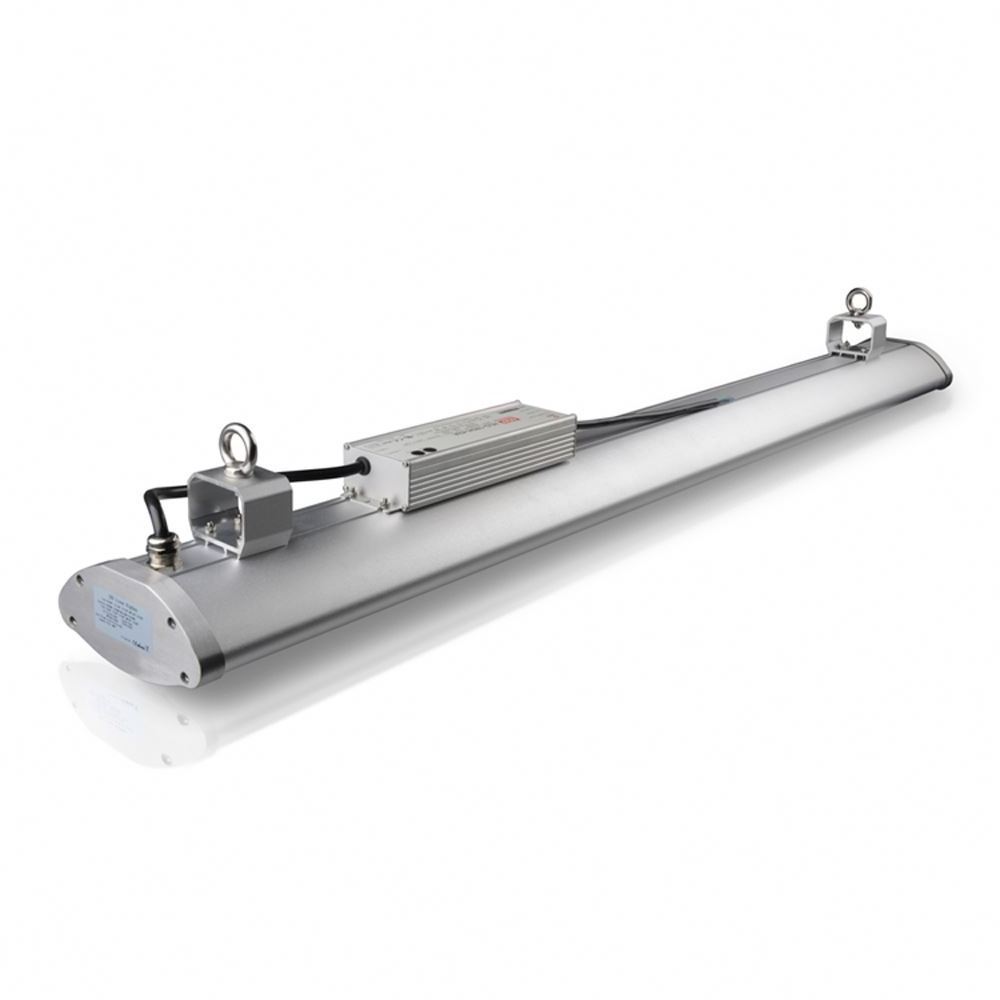

LINEAR LED HIGH BAY TUBE LIGHT FIXTURE
A2102 LED Linear High Bay is made of heavy-duty anodized, extruded aluminum so it can handle whatever you can dish out. The finely-engineered fixture dissipates heat and keeps the LEDs inside cool and bright for years and years.
|
Linear High Bay Light
|
||||
| Certification | TUV,SAA,CB, UL/CUL, FCC, DLC4.2 Premium, IK10, IP66, | |||
| Product No. | A2102-600-80W | A2102-900-120W | A2102-1200-150W | A2102-1500-200W |
| Dimension L*W*H | 600*150*68mm | 900*150*68mm | 1200*150*68mm | 1500*150*68mm |
| Power(W) | 80W | 120W | 150W | 200W |
| Input Voltage(V)-TUV SAA |
AC100-240V 50/60Hz
|
|||
| Input Voltage (V)-UL DLC | AC100-277V or AC277-480V 50/60Hz (Optional) | |||
| PF | >0.95 | |||
| CRI(Ra) | >80 | |||
| CCT | 3000-6500K | |||
| Luminary EER (lm/w) | 140Lm/w ~160lm/w | |||
| Luminous (lm) | 11,200lm | 16,800lm | 21,000lm | 28,000lm |
| Beam Angle | 120° | |||
| Function option-UL | 1-10V & Dali Dimming | |||
| Function option-TUV | 1-10V & Dali Dimming | Emergency (1,2,3hours) | Microwave Sensor | |||
| Installation | Suspension | Ceiling-mounted | Wall-mounted angle adjustable | |||
| Guarantee | 5 years warranty | |||
Widely used in Airport, Auto Dealership, Plant workshop, Garages, Stadiums, Gymnasiums, Industrial & Warehouse, Recreation & Public Venues, etc.
