Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EASTRON
-
Model Number:
-
Smart X96
-
Operating Temperature:
-
-25 to 55℃
-
Dimensions:
-
96*96
-
Type:
-
3 phase multifunction power meter
-
Installation:
-
35mm panel mount multifunction meter
-
Communication:
-
Modbus-RTU/TCP/IP/Ethernet
-
Display:
-
LCD Backlit
-
International Standard:
-
EN62053
-
Inputs:
-
4 Digital Inputs
-
Outputs:
-
2 Digital Outputs
-
Tariff:
-
4 Tariff &10 Time segments
-
Record:
-
Real Time Clock,SOE
-
EMC LVD:
-
IEC61000,IEC61010
Quick Details
-
Measuring Current Range:
-
0~9999A
-
Measuring Voltage Range:
-
0~500KV
-
Accuracy Class:
-
0.5S/0.2S
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EASTRON
-
Model Number:
-
Smart X96
-
Operating Temperature:
-
-25 to 55℃
-
Dimensions:
-
96*96
-
Type:
-
3 phase multifunction power meter
-
Installation:
-
35mm panel mount multifunction meter
-
Communication:
-
Modbus-RTU/TCP/IP/Ethernet
-
Display:
-
LCD Backlit
-
International Standard:
-
EN62053
-
Inputs:
-
4 Digital Inputs
-
Outputs:
-
2 Digital Outputs
-
Tariff:
-
4 Tariff &10 Time segments
-
Record:
-
Real Time Clock,SOE
-
EMC LVD:
-
IEC61000,IEC61010
Introduction

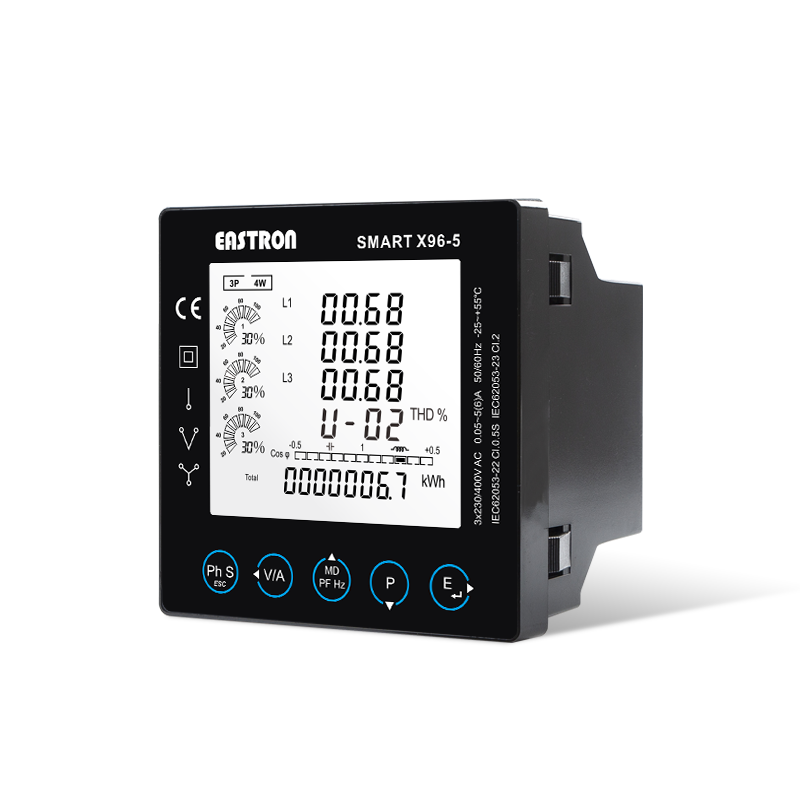

The multifunction energy analyzer SMART X96 series is a top new-generation intelligent panel meter, used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in high voltage intelligent power grid.
This document provides operating, maintenance and installation instructions for the Eastron SMART X96 series. The unit measures and displays the characteristics of 1p2w, 3p4w and 3p3w supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, Harmonic, Power factor, Max. Demand etc. Energy is measured in terms of kWh, kVArh and kVAh. Maximum demand current can be measured over preset periods of up to 60minutes.
In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product. The requisite current input(s) are obtained via current transformers. The SMART X96 can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provides RS485 Modbus RTU and Ethernet TCP/IP communication. Digital input and outputs are provided for external signal counting and external device control. 30 types parameters can be set for alarm.
The unit uses plug-in terminals for easy wiring and push-in mechanism for quick installation.
Model options
Specifications
|
Electrical characteristics |
||||
|
Type of measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) 128 samples per cycle |
|||
|
Measurement accuracy |
Power |
IEC 61557-12 Class 0.5 |
||
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5 |
|||
|
Reactive Energy |
IEC62053-23 Class 2, IEC 61557-12 Class 2 |
|||
|
Frequency |
±0.1% |
|||
|
Current |
±0.2% |
|||
|
Voltage |
±0.2% |
|||
|
Power Factor |
±0.01 |
|||
|
Harmonic Distortion |
2 |
|||
|
Data Update Rate |
1 second nominal |
|||
|
Input-Voltage |
VT Primary |
100~500000V ac |
||
|
Un |
230 V L-N |
|||
|
Measured Voltage with Over-range and Crest Factor |
100 to 480Vac L-L 100 to 276Vac L-N |
|||
|
Permanent Overload |
490V L-L 280V L-N |
|||
|
Impedance |
1M Ω |
|||
|
Frequency Range |
45~66Hz |
|||
|
Input- Current |
CT Ratings |
Primary |
1~9999A |
|
|
Secondary |
1A / 5A |
|||
|
Measured current with Over-range and Crest Factor |
5mA~6A |
|||
|
Withstand |
Continuous 8A 120A for 0.5Seconds |
|||
|
Impedance |
<1 mΩ |
|||
|
Frequency Range |
45~66Hz |
|||
|
Burden |
<0.036VA at 6A |
|||
|
Auxiliary Power Supply |
Operating Range |
65~480V AC / 80~660V DC |
||
|
Power Consumption |
< 7VA/3.5W. |
|||
|
Frequency |
45 to 65 Hz |
|||
|
Digital output |
Number/Type |
|||
|
Output Frequency |
1 Hz maximum |
|||
|
Switching Current |
250 Vac at 3.0 Amps, 100k cycles, |
|||
|
Isolation |
2.5 KVac for 1min |
|||
|
Digital Input |
Number |
4 |
||
|
Input Resistance |
10 kΩ |
|||
|
Maximum Frequency |
1kHz |
|||
|
Response Time |
10 milliseconds |
|||
|
Isolation |
2.5 KVac for 1min |
|||
|
Mechanical Characteristics |
||||
|
Weight |
250g |
|||
|
IP Degree of Protection (IEC 60529) |
IP51 front display |
|||
|
Dimensions (WxHxD) |
96x96x70.3 |
|||
|
Mounting Position |
Vertical |
|||
|
Panel Thickness |
1~5mm |
|||
|
Material of meter case |
Self-extinguishing UL 94 V-0 |
|||
|
Mechanical environment |
M1 |
|||
|
Environmental Characteristics |
||||
|
Operating Temperature |
-25 to 55°C |
|||
|
Storage Temperature |
-40 to 70°C |
|||
|
Humidity Rating |
<95% RH at 50 °C (non-condensing) |
|||
|
Pollution Degree |
2 |
|||
|
Altitude |
2000m |
|||
|
Vibration |
10Hz to 50Hz, IEC 60068-2-6 |
|||
|
Electromagnetic Compatibility |
||||
|
Electrostatic Discharge |
IEC 61000-4-2 |
|||
|
Immunity to Radiated Fields |
IEC 61000-4-3 |
|||
|
Immunity to Fast Transients |
IEC 61000-4-4 |
|||
|
Immunity to Impulse Waves |
IEC 61000-4-5 |
|||
|
Conducted Immunity |
IEC 61000-4-6 |
|||
|
Immunity to Magnetic Fields |
IEC 61000-4-8 |
|||
|
Immunity to Voltage Dips |
IEC 61000-4-11 |
|||
|
Radiated Emissions |
EN55011 Class A |
|||
|
Conducted Emissions |
EN55011 Class A |
|||
|
Harmonics |
IEC 61000-3-2 |
|||
|
Safety |
||||
|
Measurement Category |
Per IEC61010-1 CAT III |
|||
|
Current Inputs |
Require external Current Transformer for Insulation |
|||
|
Over voltage Category |
CAT III |
|||
|
Dielectric Withstand |
As per IEC 61010-1 Double Insulated front panel display |
|||
|
Protective Class |
II |
|||
|
Communications |
||||
|
Interface standard and protocol |
RS485 and MODBUS RTU |
|||
|
Communication address |
1~247 |
|||
|
Transmission mode |
Half duplex |
|||
|
Data type |
Floating point |
|||
|
Transmission distance |
1000m Maximum |
|||
|
Transmission speed |
2400bps~38400bps |
|||
|
Parity |
None (default), Odd, Even |
|||
|
Stop bits |
1 or 2 |
|||
|
Response time |
<100 mS |
|||
Wiring diagram
X96-5A MID
X96-5-F~J
Energy management software EEMS
Certificates
