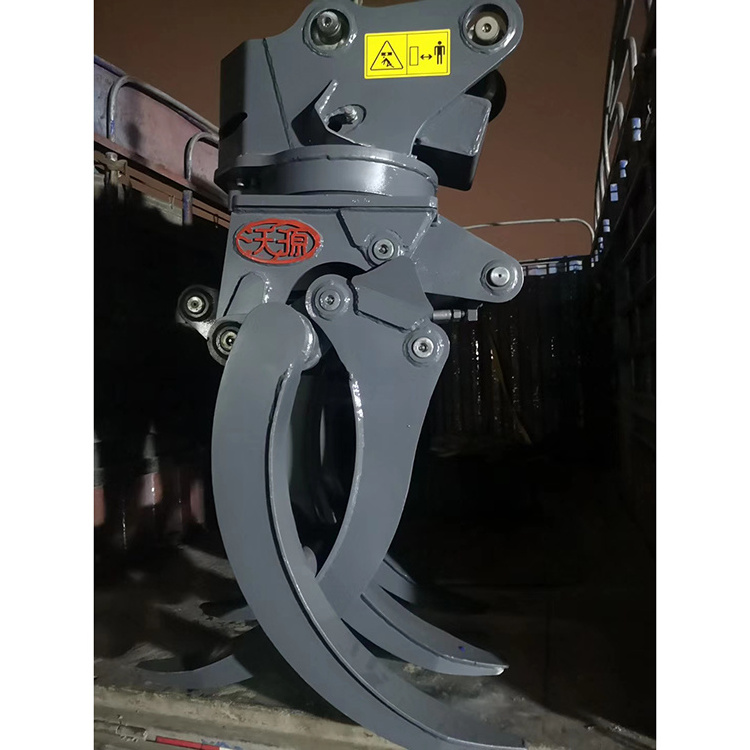

Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale

Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $4000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Condition:
New
Weight:
380kg
Suitable Excavator(ton):
5-9 ton
Max Jaw Opening:
1250±20mm
Product name:
5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Application:
Excavator grapple attachment
Model:
WYJ-100Z
Grapple Type:
single cylinder/Five jaw grapple/doubble link
Steel material:
Q355B
Height when clamped(mm):
1380
Height when opened(mm):
1360
Width of inner/outer clamp(mm):
415/700
Rotation method:
Vertical rotation with external teeth
Motor type:
Cycloid motor
Certification:
CE

Quick Details

Place of Origin:
Guangxi, China
Brand Name:
WO YUAN
Model Number:
WYJ-100Z
Condition:
New
Weight:
380kg
Suitable Excavator(ton):
5-9 ton
Max Jaw Opening:
1250±20mm
Product name:
5 to 9 ton excavator with 360 hydraulic rotation log grab for sale
Application:
Excavator grapple attachment
Model:
WYJ-100Z
Grapple Type:
single cylinder/Five jaw grapple/doubble link
Steel material:
Q355B
Height when clamped(mm):
1380
Height when opened(mm):
1360
Width of inner/outer clamp(mm):
415/700
Rotation method:
Vertical rotation with external teeth
Motor type:
Cycloid motor
Certification:
CE

Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton

excavator with 360 hydraulic rotation log grab for sale


Details Images

WYJ-100Z
1. Model: WYJ-100Z
2. Weight: 380kg
3. Suitable excavator models: 5-9 tons
4. Working pressure: 16~21MPa
5. Rotary drive type: vertical straight tooth, hydraulic brake
6. Clamp drive type: Five -Jaw type, single cylinder and double connecting bar
7. Suitable for large-scale port timber handling construction, eucalyptus handling, bamboo handling, sugarcane handling and other construction occasions, The holding structure will highly improve the operation efficiency.
8. Other name: grabs, excavator grapple, excavator grabs, log grab, excavator attachment, log grab, grapple
Timber grapple WYJ100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale

Grapple Paramenters
Xuvol Grapple Specifications
WYJ-100Z







Whole Grapple
Grapple Type
single cylinder/Five-Jaw grapple/doubble link
Steel material
Q355B
Optional electric control
✔
Height when clamped(mm)
1380
Height when opened(mm)
1360
Width of inner/outer clamp(mm)
415/700
Open Width Max(mm)
1250±20
Minimum holding circle(mm)
≦φ110
Maximum holding circle(mm)
φ500
Weight (excluding rotation)kg
380
Suitable Excavator(Ton)
5-9

Rotation Support
Rotation method(grapple)
external meshing vertical rotation
Module / raceway diameter
M5/224

Rotation Motor
Motor type
Cycloid motor
Pressure(Mpa)
16

Hydraulic cylinder
Rod diameter/bore size
45/80
Pressure(Mpa)
21
Products Description
Advantages of the grapple:

1.Using special steel, Xuvol WYJ-100Z log grapple has the advantages of light weight, good strength, and abrasion resistance; Grabs WYJ100Z excavator grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grapple

2.The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which can control the rotation speed

3.The WYJ-100Z can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;

4.It can be stalled on 5t-9t excavator, Suitable for loading and unloading of sugarcane, pine, fir and other construction occasions. . Greatly improving work efficiency and greatly saving labor costs.
Timber grapple WYJ-100Z 3 point hitch log grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grab for sale


Project

Xuvol log grapple WYJ-100Z could be installed on 90% brand of excavator


Why choose Xuvol Grapple?

1.More advanced electro-hydraulic ratio technology

OWN Pattents

Obtained: 2 utility model patents
5 design patents Being accepted :
2 patents

Human-machine Exchange

The Human-machine exchange interface of the fixture set by our company has independent intellectual property rights and can adjust various parameters of the wood clamp

Electro-hydraulic proportional solenoid valve

The electro-hydraulic proportional solenoid valve has strong versatility and can be applied to all excavators on the market



2.Compare with other Brand
Other Brand Grapple
Xuvol Grapple
Proportional control is not available, and the action has a big damage to the object
Electro-hydraulic proportional control can be control to realize the integration of electro-hydraulic, soft and flexible action
Rely on manual control the pressure of the grapple, Poor Personal skills will easily cause damage to the gripping objects
It can be clamped automatically, and the clamping time (0.1~1 second) and clamping pressure are adjustable, which can effectively
protect the clamped object
Unable to weigh
It can weigh the gripped objects and store the data
Unable to send data
Data could be sent to the operator timely, ensure manage the material in time


3.Widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.
