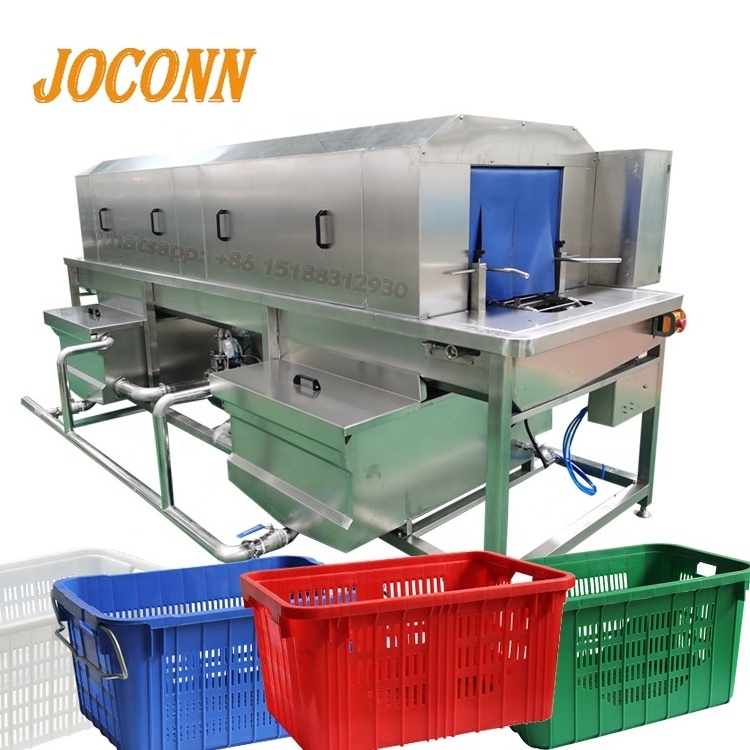

Factory Price Plastic Box Tunnel Washing Machine/Plastic Bin Container high spray Cleaning Machine/Food tray tunnel washer

1

This Plastic Pallet crate box turnover Basket washing machine is combined with the cleaning and drying air -drying machines designed by domestic and foreign technologies, three sections, thermal alkali water section, hot water section, water section, air -dried division and drying section and other parts. Essence Plastic basket cleaning air drying machines, turning basket cleaning blankets, and plastic tray cleaning blanket rackets are made of high quality SUS304 stainless steel.

2

Plastic basket cleaning and drying all -in -one, turning basket cleaning dryer, plastic tray cleaning and dryer are mainly used for slaughtering, meat, aquatic products, vegetables, vegetables, drinks, acid manufacturing and other food processing centers, food logistics centers, distribution centers, etc. It is also suitable for cleaning and disinfection of various containers such as turnarounds, discs, boxes, trays, etc. It can save water consumption, which can save artificially reducing labor intensity than traditional artificial cleaning methods.

*

1 First use a high -pressure bubble hot water bath to clean. Each circulating water tank is sprayed with a horizontal stainless steel centrifugal pump.

2 Each water tank has two filtering devices to facilitate the cleanup of stolen goods at any time. Each water tank has a separate sewage and cleaning valve.

3 Steam heating pipes or electric heating pipes are automatically controlled in the alkaline water tank and the hot water tank, respectively.

4 The equipment cleaning capacity is large, the oil dirty effect is good, and the cleaning rate is high. After the transportation mesh belt, it is transmitted to the high -pressure spray cleaning meter water spray cleaning and the automatic output.

5 After the cleaning plate is cleaned, after the cleaning section of the drying box, the removing section of the drying box and the water removal part uses four directions of the upper and lower left and right directions to remove the tray to dry the tray, and then enter the drying stage of the drying stage. From top to bottom, the tray is dry and temperature reaches 60-100 degrees (temperature can be adjusted by the temperature) after drying.

Item

Plastic Pallet crate box turnover Basket washing machine

Capacity

600-800 pieces/h

Power

14kw(steam heating)/53.4kw(electricity heating)

Voltage

380v

Speed of the conveyor

0-8m/min

Power of the conveyor

1.5kw

Water consumption

20 L/min

Pump number

3 (every tank has one)

Pump pressure

3Mpa

Range of water gun

32m

Bearing pressure of the pump

3kg

Weight

1000kg

Size

6000*1650*1520mm

1

The cleaning machine is mainly composed of input, pre -washing, main cleaning, rinsing, and output.

2

The standard combination cleaning system is very flexible and can be combined according to the special requirements of the user.

3

Reasonable waterway design for cleaning machines, reaching water saving, low water consumption.

4

Pre -cleaning water tanks, main cleaning water tanks have heating systems and temperature control devices in order to adjust the water temperature to achieve the cleaning effect.

5

The conveyor device uses anomalous speed regulation, and the transport chain speed is 0.7-7 meters per minute to adjust to meet the cleaning requirements of different conditions.

6

The main cleaning part of the turbine cleaning machine has a stainless steel nozzle cleaning system.

7

The transmitted guide rod can be adjusted, which can be cleaned for a variety of different sizes.

8

There are wide demolition panels on both sides of the tunnel for easy maintenance and cleaning.

9

Pre -cleaning and main cleaning parts have filtering systems. The filter slot is easy to remove and easy to clean.

10

The rotor cleaning machine uses a nozzle that is not applicable to any tools, and is easy to adjust in the direction.
