Quick Details
-
Brand Name:
-
NTL
-
Model Number:
-
3 mm
-
Application:
-
Bearing
-
Surface:
-
Polishing Finish
-
Grade:
-
G100
-
Size:
-
3 mm
-
Name:
-
Stainless steel ball
-
Stocks:
-
Rich
-
Package:
-
Industry packing
-
Feature:
-
Corrosion Resistance
-
Hardness:
-
HRC 58-62
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops
-
Material:
-
Stainless steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NTL
-
Model Number:
-
3 mm
-
Application:
-
Bearing
-
Surface:
-
Polishing Finish
-
Grade:
-
G100
-
Size:
-
3 mm
-
Name:
-
Stainless steel ball
-
Stocks:
-
Rich
-
Package:
-
Industry packing
-
Feature:
-
Corrosion Resistance
-
Hardness:
-
HRC 58-62

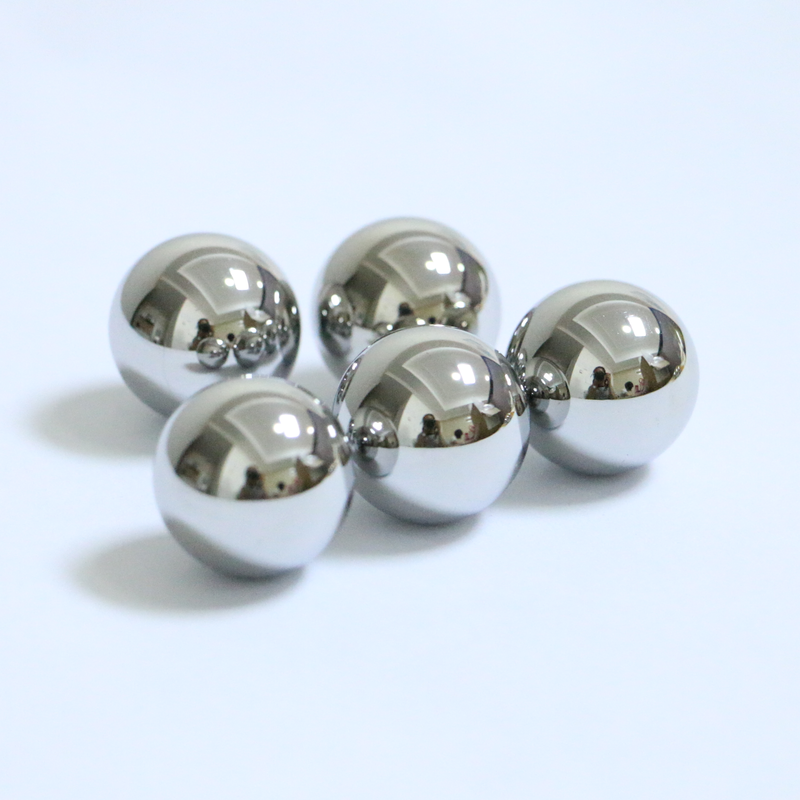

3 mm SS304 AISI304 SUS304 stainless steel polishing bearing ball
Heading: In the first step, heading machines cut wire into short lengths and form it into spherical shapes between dies.
Deflashing: The flash line, a ridge left by the forming dies, is removed as balls roll between heavy, cast iron plates.
Soft Grinding: Similar to deflashing, except that a grinding stone is used to improve precision.
Heat-treating: Carbon steel balls are next carburized and hardened. Heat treatment imparts the desired hardness and case depth.
Descaling: This step removes the residues and by-products from the heat-treating process.
Hard Grinding: Slow, meticulous grinding assures proper sizing and sphericity, with tolerances as close as ±.0001".
Lapping: Several proprietary lapping processes can bring balls to the requirements of ISO 3290 Grade 10 - 48.
Finishing: Proprietary chemical and mechanical processes give the balls their final micro-smoothed finish, for increased wear
resistance and product longevity.
Inspection: All products pass through at least two 100% inspection stages, using proprietary, automated inspection processes
We are the professional manufacturer of steel grinding ball. Our products have been exported to more than 40
countries in the world and all have enjoyed a great reputation. The specification of our products as following:
|
Norminal Diameter
|
Diametrical Tolerance(mm)
|
Approx Weight of Single Ball(kg)
|
Average Number of One MT
|
Microstructure
|
|
25mm/1''
|
+1.5,-0.5
|
0.064
|
15625
|
M+B+C
(M-Martensite;B-Bainitic;C-Carbide)
|
|
30mm/1.25''
|
+1.5,-0.5
|
0.11
|
9090
|
|
|
40mm/1.5''
|
+2.0,-1.0
|
0.26
|
3846
|
|
|
50mm/2''
|
+2.0,-1.0
|
0.51
|
1961
|
|
|
60mm/2.5''
|
+3.0,-2.0
|
0.89
|
1124
|
|
|
70mm/2.75''
|
+3.0,-2.0
|
1.4
|
714
|
|
|
80mm/3.25''
|
+3.0,-2.0
|
2.1
|
476
|
|
|
90mm/3.5''
|
+3.0,-2.0
|
3
|
333
|
|
|
100mm/4''
|
+4.0,-3.0
|
4.1
|
244
|
|
|
110mm/4.5''
|
+4.0,-3.0
|
5.47
|
283
|
|
Packing Details : Carton+Pallet
Delivery Details : 3-30 days after order confirmation
1. Special Single Box
2. Cartob box
3. Single Pallet
4. Carton+Pallet
5. Complete Pallet
6. Complete package
Workshop
Warehouse Corner
Company profile:
Changsha Terry Machinery Co.Ltd is a professional supplier of bearings and transmission products.We are BV verified supplier and 10 year golden supplier on alibaba.
We are engaged in bearing and transmission products exceeds 14 years now, our major products are kinds of Bearings , bore size from 1mm to 1000mm , both inch size and metric are available . U- Joint Cross, Chains, Sprocket, Coupling and linear products are our hit products also . Supplying industry transmission solutions is our responsibility.
