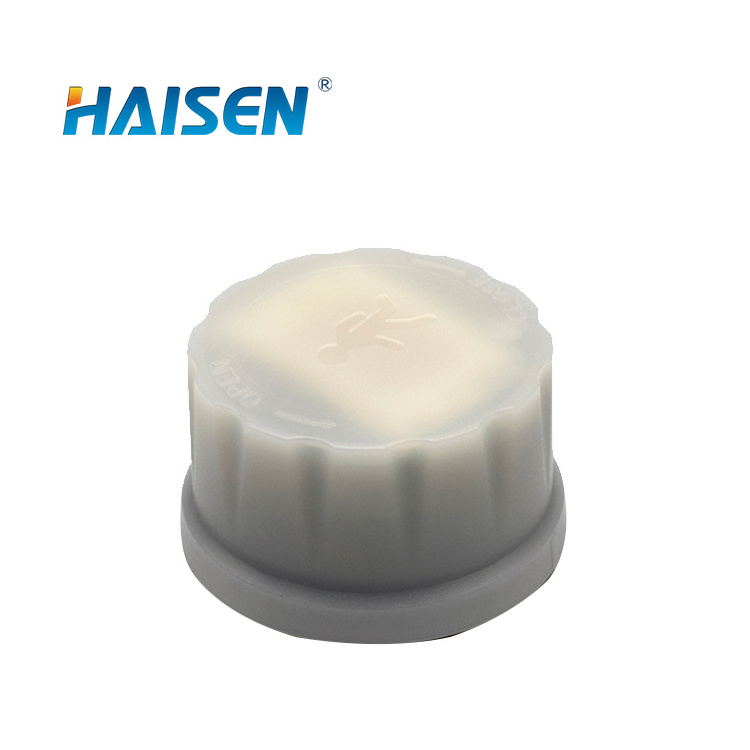

Quick Details
-
Brand Name:
-
HAISEN
-
Theory:
-
Microwave Motion Sensor
-
Output:
-
DIM 1-10V
-
Description:
-
mini pir sensor switch
-
Input Voltage:
-
10.5-15V DC (Currect Required>30mA)
-
Color:
-
White, Black
-
Warranty:
-
5years
-
Temperature:
-
-20°C~+60°C
-
Mounting Height:
-
≤15m/39.36ft (Ceiling Mounted)
-
Detection Range:
-
Max,16m/52.49ft (Ceiling Mounted)
-
Microwave Power:
-
<0.3mW
-
IP:
-
IP65
-
Application Fields:
-
Indoor and outdoor lighting
Quick Details
-
Use:
-
ON/OFF Switch for Light
-
Model Number:
-
HD06VCRH 7B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAISEN
-
Theory:
-
Microwave Motion Sensor
-
Output:
-
DIM 1-10V
-
Description:
-
mini pir sensor switch
-
Input Voltage:
-
10.5-15V DC (Currect Required>30mA)
-
Color:
-
White, Black
-
Warranty:
-
5years
-
Temperature:
-
-20°C~+60°C
-
Mounting Height:
-
≤15m/39.36ft (Ceiling Mounted)
-
Detection Range:
-
Max,16m/52.49ft (Ceiling Mounted)
-
Microwave Power:
-
<0.3mW
-
IP:
-
IP65
-
Application Fields:
-
Indoor and outdoor lighting
Specification
|
Input
|
Voltage
|
10.5-15V DC (Currect Required>30mA)
|
|
|
Model Number
|
Standby Consumption
|
<30mA (Power Consumption）
|
|
|
Output
|
Dim Output
|
DIM 1-10V
|
|
|
Daylight Priority Function
|
|
Detection area：120Lux/80Lux/50Lux/30Lux
Stand-by period：+∞ Stand-by dimming level：10%/20%/30% |
|
|
Sensor
Parameters
|
Detection Area
|
25%/50%/75%/100%
|
|
|
|
Holdtime
|
5s/30s/1min/3min/5min/10min/20min/30min
|
|
|
|
Daylight Threshold
|
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
|
|
|
|
Stand-by Period
|
0s/10s/30s/1min/5min/10min/30min/60min+∞
|
|
|
|
Stand-by Dimming Level
|
10%/20%/30%/50%
|
|
|
|
Microwave Frequency
|
5.8GHz±75MHz
|
|
|
|
Microwave Power
|
<0.3mW
|
|
|
|
Mounting Height
|
≤12m/39.36ft (Ceiling Mounted)
|
|
|
|
Detection Range
|
Max,ø16m/52.49ft (Ceiling Mounted)
|
|
|
|
Motion Detection
|
0.5~1m/s
|
|
|
Others
|
Temperature
|
-20°C~+60°C
|
|
|
|
IP Grade
|
IP65
|
|
|
|
Warranty
|
3 Years
|
|
|
Remark
|
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/
Stand-by period 0s/Stand-by dimming level 10%. |
|
|
