Quick Details
-
Brand Name:
-
QYE
-
Model Number:
-
QFS-400
-
consumed current:
-
<90mA DC
-
Switch type:
-
electric appliance/PNP/NPN
-
Operationg temperature:
-
-30-80C
-
Response time:
-
2S
-
Connection:
-
M12
-
Thread:
-
NPT 1/2 G1/2
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
QYE
-
Model Number:
-
QFS-400
-
consumed current:
-
<90mA DC
-
Switch type:
-
electric appliance/PNP/NPN
-
Operationg temperature:
-
-30-80C
-
Response time:
-
2S
-
Connection:
-
M12
-
Thread:
-
NPT 1/2 G1/2
Description:

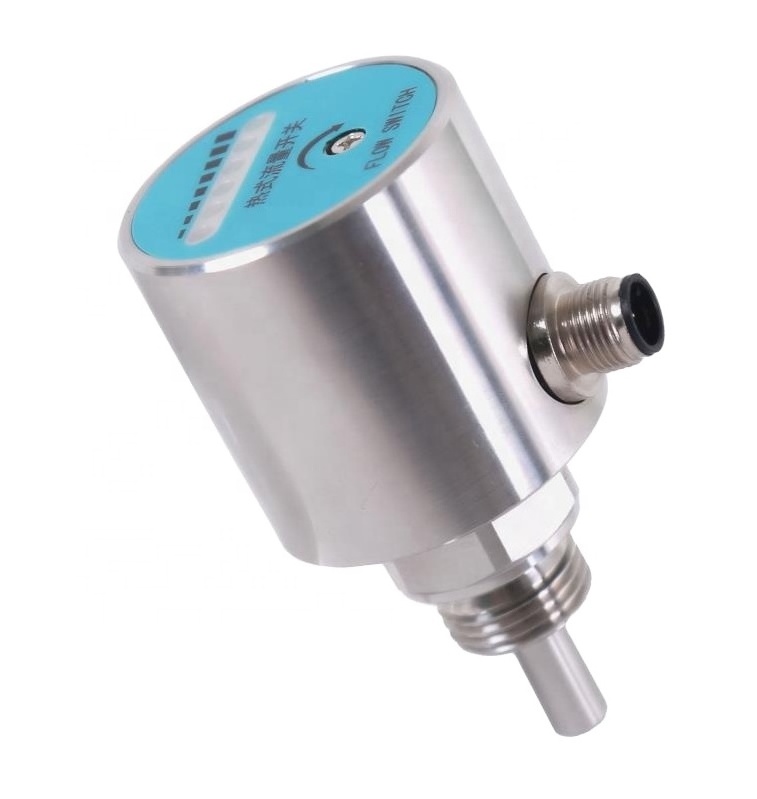

QFS-400 flow switch is a kind of real-time monitoring measurement instrument that
used for liquid flow in pipeline .It adopts full metal jacket, no moving parts, output
continuously adjustable, compact
structure. 6 LED real time display the state of flow
and output. Convenient installation, suitable fo
r various pipe diameters. Widely used
in hydropower and other pipeline
fluid flow monitoring industry.
Model
: QFS-400
Range
:
1~150cm/s(water),3~300cm/s(oil)
Feature
:
High accuracy, good stability, long working life and high reliability
Small in size
,
convenient installation
All stainless steel case without movable components.
Maintenance free
Switching point could be set on site
LED display shows flow state and on-off state
Dimensions :( unit: mm)
Electrical connection:
|
Code |
Color |
NO. |
|
Excitation - |
Brown |
1 |
|
Excitation - |
Blue |
3 |
|
Relay: Normally open |
White |
2 |
|
Relay: Normally close |
Gray |
5 |
|
Relay:COM |
BLACK |
4 |
|
Transistor:NPN |
BLACK |
4 |
|
Transistor:PNP |
BLACK |
4 |
Technical Specifications:
|
Measuring media |
dilute non-corrosive liquids(water,oil...) |
|
|
Measuring ranges |
bar |
1~150cm/s(water),3~300cm/s(oil) |
|
Excitation voltage |
Vdc |
24 ± 20 % VDC |
|
Output signal |
Relay |
SPDT( ≤ 250VAC/30VDC,3A) |
|
|
Transistor |
NPN,PNP( ≤ 24 ± 20 % VDC,1.2A) |
|
Response time |
s |
2s(1~15s) |
|
Initialize time |
s |
8s(2~15s) |
|
Medium temp. |
C |
- 20 ~ 80C |
|
Environment temp. |
C |
-10~+70 |
|
Storage temp. |
|
-25~85 °C |
|
Consumption current |
mA |
< 90mA |
|
Overload pressure |
Mpa |
10Mpa |
|
Environment protection |
IP rating |
IP 67 |
|
Case Material |
|
304 S |
|
Material (wetted parts) |
|
304 S |
Installation
1. The wetted parts need to
immersed in fluid.Installation
in small diameter pipeline to
ensure that the probe can't contact with pipe's inner wall
.
2
.
When the fluid can not comple
tely fill the pipeline, produc
ts should be installed in the bottom of the pipe. (Figure 1)
3. If there may be sediment in the pipeline, please products installed in the pipeline side wall, horizontal mounting (Figure 2), to avoid the air and sediment
4.Installation in a straight pipe close to bend or intersection place, the pipe length should not be less than 4 times the diameter of pipeline.
