PS08YB-200-350-F1 350 mm Tension Gas Spring Pulling Gas Strut for Truck Trailer 200 mm Stroke ISO Certified Factory Sale

PS08YB-200-350-F1 350 mm Tension Gas Spring Pulling Gas Strut for Truck Trailer 200 mm Stroke ISO Certified Factory Sale

FOB Reference Price: Get Latest Price

≥10 Pieces

US $6

≥100 Pieces

US $4

≥1000 Pieces

US $3

≥10000 Pieces

US $2.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Bursa, Turkey

Brand Name:: MotionStruts

Model Number:: PSM-08-10

Certificate:: ISO9001

Cetificates:: ROHS

Quick Details

Style:: Cylinder

Material:: Steel

Usage:: Industrial

Place of Origin:: Bursa, Turkey

Brand Name:: MotionStruts

Model Number:: PSM-08-10

Certificate:: ISO9001

Cetificates:: ROHS

Products Description

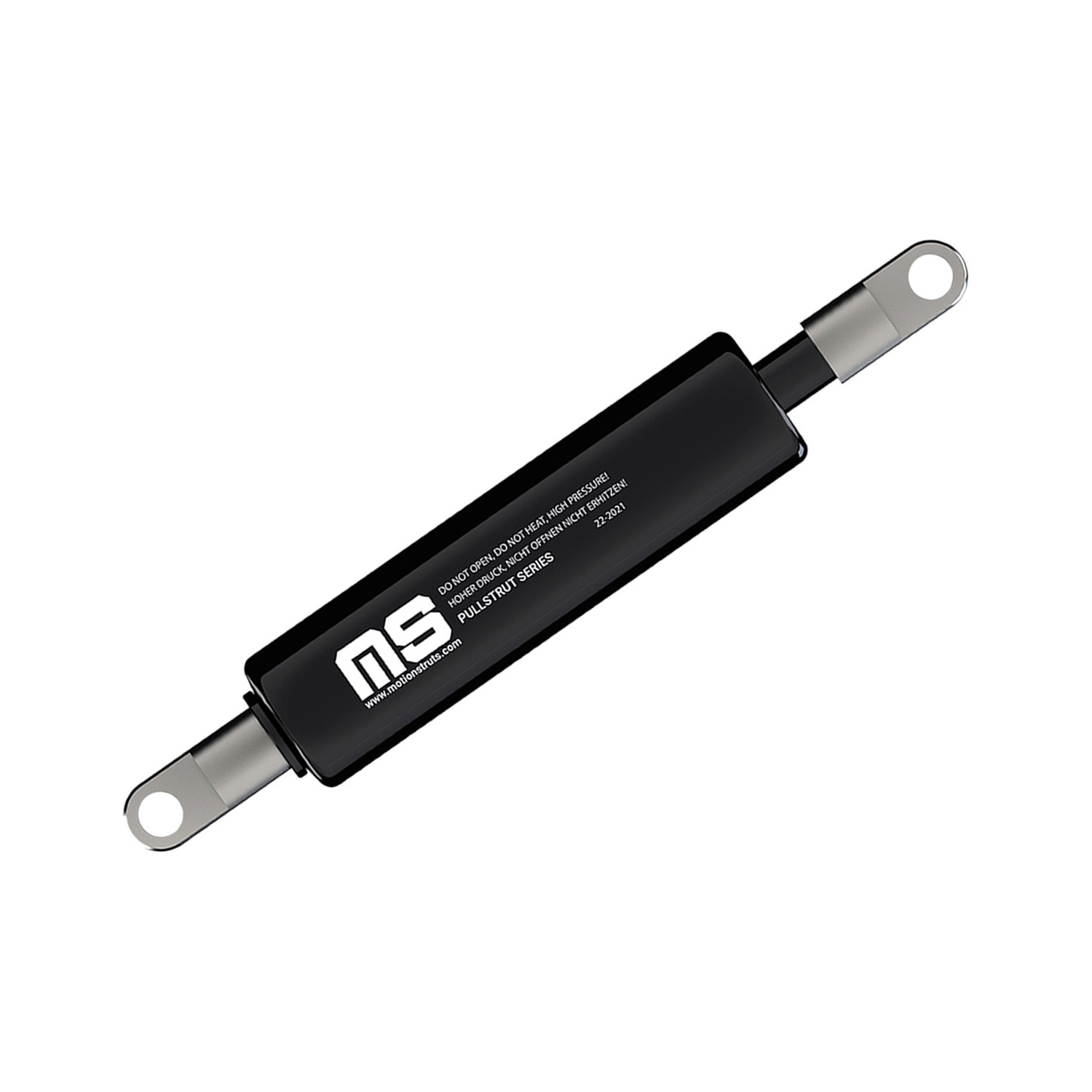

PULLSTRUT SERIES

A pull-type reverse action gas strut is a specific type of gas spring that operates in the opposite manner compared to a standard gas spring.

While a standard gas spring extends when compressed and retracts when released, a pull-type reverse action gas strut extends when released and retracts when compressed.

This type of gas strut is commonly used in applications where the primary force is in the pulling direction.

ITEM CODE	STROKE	CLOSED LENGTH
PS08YB-20-150-F1	20 (0,79in)	150 (5,91in)
PS08YB-30-162-F1	30 (1,18in)	162 (6,38in)
PS08YB-50-182-F1	50 (1,96in)	182 (7,17in)
PS08YB-54-200-F1	54 (2,12in)	200 (7,87in)
PS08YB-60-210-F1	60 (2,36in)	210 (8,27in)
PS08YB-79-251-F1	79 (3,11in)	251 (9,88in)
PS08YB-80-230-F1	80 (3,14in)	230 (9,06in)
PS08YB-100-232-F1	100 (3,93in)	232 (9,13in)
PS08YB-100-240-F1	100 (3,93in)	240 (9,45in)
PS08YB-100-250-F1	100 (3,93in)	250 (9,84in)
PS08YB-104-301-F1	104 (4,09in)	301 (11,85in)
PS08YB-120-270-F1	120 (4,72in)	270 (10,63in)
PS08YB-150-282-F1	150 (5,90in)	282 (11,10in)
PS08YB-150-440-F1	150 (5,90in)	440 (17,32in)
PS08YB-155-403-F1	155 (6,10in)	403 (15,87in)
PS08YB-160-310-F1	160 (6,29in)	310 (12,20in)
PS08YB-181-454-F1	181 (7,12in)	454 (17,87in)
PS08YB-200-332-F1	200 (7,87in)	332 (13,07in)
PS08YB-200-340-F1	200 (7,87in)	340 (13,39in)
PS08YB-200-350-F1	200 (7,87in)	350 (13,78in)
PS08YB-206-505-F1	206 (8,11in)	505 (19,88in)
PS08YB-250-390-F1	250 (9,84in)	390 (15,35in)
PS08YB-250-399-F1	250 (9,84in)	399 (15,71in)
PS08YB-257-606-F1	257 (10,11in)	606 (23,86in)

End Fitting Options

Ordering

We provide maximum variety of gas springs as standard range in our website. You can easily filter parameters and download its data to use in your design. In case you cant reach required parameters in our product range, just send us details. We provide you 2d drawing or step file if we are able to produce. As soon as items and quantities defined, we provide you order confirmation form which includes prices, lead time, delivery and payment conditions. We prefer Bank Transfers as main payment method, however, for smaller shipments we are able to provide you credit card payment link, which makes possible to make payments via VISA, AMEX or Master Card with total safety.

Production

All our products are being produced in Turkey with reliable raw materials and components according to EU regulations. Our skilled engineers which rule processes like steel processing, stoning, nitriding, gas filling, painting and assembling by indoor capabilities. We provide periodic trainings for work safety and minimize production faults. In order to provide sustainability in deliveries and quality we constantly monitor contract manufacturers.

Quality Control

All our products are designed, manufactured and delivered according to the most strict quality standards. Our experienced and specially trained employees monitor the adherence to our quality criteria in every phase of the production process. Motionstruts are manufactured with the highest quality, environmentally friendly materials which are in compliance with the REACH and RoHS directives.
We are certified in accordance with DIN ISO 9001:2015. Our quality program starts with implementing strict quality controls on our purchase transactions. Permanent quality is guaranteed due to the uncompromisingly monitoring of raw materials, an aggressive testing program and a redundant quality control program throughout the production process.
Motionstruts are continuously tested to ensure reliability, long life and over all product safety for your highest satisfaction. Using our test and development laboratory, products and technology are constantly being improved. Following tests are made by our in-house test equipments or officially registered laboratories:
Damping measurements – Extension speed measurements – Extension force measurements – Leakage tests – Salt spray tests – Life cycle tests – Test of mechanical strength – Test of actual application – Metallographic inspections: material, hardness, microstructure. In order to provide traceble service we share final control reports of each shipment in MS Connect for our registered customers

Packaging

Complications like crushing, overturning, wetting are always possible to occur in transport process. In order to avoid such failures we pay attention to packaging process after all stages. MS Motion has professional packaging and logistics team which is fully capable to deliver your order to all over the world safely. It doesn’t matter 2pcs or 20.000 pcs, we use the best packaging materials.

Documentation

Customs require set of documents according to state or region for completing import process in destination country. Our experienced operation team and broker partners comply with the certification processes and documentation necessaries according to requirements of your country. Prepared documents are being shared with you by email or you just visit your page in MS Connect and reach documents of each shipment has been sent.

Commercial Invoice
– Packing List
– Export Declaration
– A.TR or EUR1 Certificates
– Certificate of Origin
– Consignment

Delivery

We have contracts with best logistic and courier companies which provides us worldwide door to door delivery and insurance according to your requirement whether express or budget. MS Connect users may trace shipment status online which is daily updated.

As well as packaging and documentation MS Motion provides optimum delivery solution for our business partners via Air, Land or Sea options. We care about your goods to be delivered on time and safely, doesn’t matter 2 pcs or 20.000 pcs.
