Quick Details
-
Use:
-
cleanning machine
-
Production Capacity (kg/h):
-
500 - 1000
-
Weight:
-
260 KG
-
Name:
-
Grain seed destoner machine for cleaning
-
Product name:
-
Soybean sesame rice destoning machine coffee destoner
-
Function:
-
destoner for removing machine
-
Raw material:
-
Wheat Maize Corn Rice sesame
-
Application:
-
remove stone and other impurity
-
Where to Use:
-
Flour mill, Seed cleaning plant, Feed, Coffee Cacao, Malt fact
-
power:
-
0.25x2kw
-
Dimension:
-
machine configuration
-
Capacity:
-
1~20ton per hour
-
Advantage:
-
Higher Efficiency
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanyi
-
Type:
-
Gravity Separator
-
Use:
-
cleanning machine
-
Production Capacity (kg/h):
-
500 - 1000
-
Weight:
-
260 KG
-
Name:
-
Grain seed destoner machine for cleaning
-
Product name:
-
Soybean sesame rice destoning machine coffee destoner
-
Function:
-
destoner for removing machine
-
Raw material:
-
Wheat Maize Corn Rice sesame
-
Application:
-
remove stone and other impurity
-
Where to Use:
-
Flour mill, Seed cleaning plant, Feed, Coffee Cacao, Malt fact
-
power:
-
0.25x2kw
-
Dimension:
-
machine configuration
-
Capacity:
-
1~20ton per hour
-
Advantage:
-
Higher Efficiency
Product Description

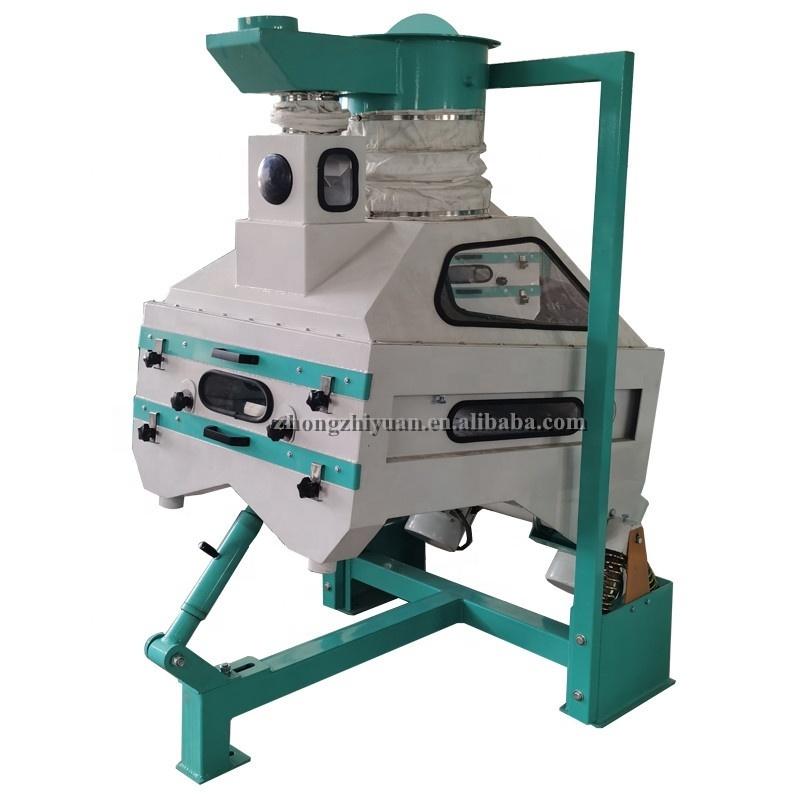

Factory Coffee Bean Maize Rice Wheat Sesame Grain Seed Cleaning Machine In Other Farm Machines
Description:
TQSF-series gravity grade destoner is mainly used for grading maize ,wheat, rice, sesame,peanuts, corn, soybean, etc and removing stones, which can also be used for seed selecting. The machine has the characteristics of removing stones and sands according to classification,less energy consumption, no dust, lower noise, which can be operated and maintained conveniently. Use it together with independent ventilation system for better efficacy.
Features
Main Features:
1. High stone removal efficiency, stone removal sieve plate is fish scale structure, suitable for grain processing plants with high stone content of raw grain.
2. Simple operation and compact structure.
3. For different materials, the SLATE Angle is adjusted within the range of 10~14 degrees to achieve the best effect of stone removal process.
Main Features:
1. High stone removal efficiency, stone removal sieve plate is fish scale structure, suitable for grain processing plants with high stone content of raw grain.
2. Simple operation and compact structure.
3. For different materials, the SLATE Angle is adjusted within the range of 10~14 degrees to achieve the best effect of stone removal process.
Detailed Images
The machine for grain cleaning
* To removal stone
* To classify grain
* To remove light impurities and so on
* To removal stone
* To classify grain
* To remove light impurities and so on
Wind door adjustment:
Air volume can be adjusted according to the material characteristics , so as to achieve good destone effect.
Working principle
Gravity grading stone machine will be divided into light materials, heavy materials, sand and stone three.When working, the
material enters the first screen surface of the upper layer by the feeding device. Under the comprehensive action of the
reciprocating vibration of the screen surface and the airflow from the bottom to the top, the material is automatically
classified, and the light material floats on the upper part of the material layer and is discharged from the outlet.The heavy
material and sand stone sink to the bottom of the material layer, the stone up by the stone outlet discharge.
Size Information
The technical parameter of TQSF-60
Gravity classifying destoner
|
model
|
sieve width(mm)
|
capacity(t/h)
|
vibration frequency(time/min)
|
amplitude/mm
|
power/kw
|
Aspiration Volume(m³/h)
|
|
TQSF100
|
1000
|
9-11
|
940
|
4~5
|
0.25x2
|
8000
|
