Quick Details
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor
-
Model Number:
-
LH-CS400-65A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lianhui
-
Theory:
-
Ultrasonic
-
Output:
-
other
-
Product name:
-

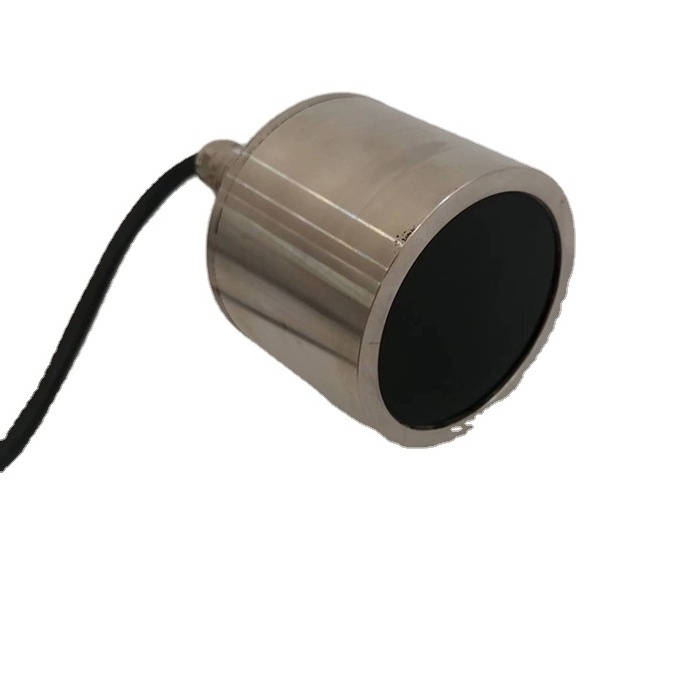

Ultrasonic Transducer
-
Transducer frequency:
-
400K Hz±4 %
-
Bandwidth:
-
±5%
-
Sensitive element material:
-
>1.5V
-
Beam Angle:
-
5°
-
Electrostatic capacitance:
-
8.0nF±20%
-
Impedance:
-
16Ω±30%
-
Maximum Operating voltage:
-
<600V
-
Ambient temperature:
-
4℃ --60℃
Quick Details
-
Usage:
-
ranging /distance /proximity
-
Series:
-
Water level Transducer, Water level Transducer
-
Features:
-
metal housing
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor
-
Model Number:
-
LH-CS400-65A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lianhui
-
Theory:
-
Ultrasonic
-
Output:
-
other
-
Product name:
-
Ultrasonic Transducer
-
Transducer frequency:
-
400K Hz±4 %
-
Bandwidth:
-
±5%
-
Sensitive element material:
-
>1.5V
-
Beam Angle:
-
5°
-
Electrostatic capacitance:
-
8.0nF±20%
-
Impedance:
-
16Ω±30%
-
Maximum Operating voltage:
-
<600V
-
Ambient temperature:
-
4℃ --60℃
Product Description
Specification
|
Transducer frequency
|
400K Hz±4 %
|
|
Bandwidth
|
±5%
|
|
Sensitive element material
|
>1.5V
|
|
Beam Angle
|
5°
|
|
Electrostatic capacitance
|
8.0nF±20%
|
|
Impedance
|
16Ω±30%
|
|
Maximum Operating voltage
|
＜600V
|
|
Ambient temperature
|
4℃ ~+60℃
|
|
Storage temperature
|
-30℃~+80℃
|
|
IP Rating
|
IP68
|
|
Housing Material
|
Stainless steel
|
|
Cable length
|
0.2mm2 four core shielded cable
Red - positive pole; Black - Negative Blue and white- thermistors |
|
Signal interface
|
Welding
|
|
Installs Way
|
ZG1 '' pipe thread
|
|
Weight(g)
|
1.2KG
|
|
Note
|
Construction and size of transducer is customizable。
|
