Quick Details
-
Power:
-
225KW
-
Weight:
-
120000 kg
-
Product name:
-
Not second hand portabl asphalt mix plant 40 ton
-
Production Capacity(t/h):
-
160
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Mixer Rated Capacity:
-
2000
-
Drying drum (D*L):
-
2..2*8
-
Storage Bin Type:
-
side/down-type
-
Motor Power (kw):
-
529.5
-
The weighing Accuracy(%)Bitumen:
-
0.25%
-
The weighing Accuracy(%)Power:
-
0.30%
-
The weighing Accuracy(%)Aggregate:
-
0.50%
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HM
-
Voltage:
-
2000KG
-
Power:
-
225KW
-
Weight:
-
120000 kg
-
Product name:
-
Not second hand portabl asphalt mix plant 40 ton
-
Production Capacity(t/h):
-
160
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Mixer Rated Capacity:
-
2000
-
Drying drum (D*L):
-
2..2*8
-
Storage Bin Type:
-
side/down-type
-
Motor Power (kw):
-
529.5
-
The weighing Accuracy(%)Bitumen:
-
0.25%
-
The weighing Accuracy(%)Power:
-
0.30%
-
The weighing Accuracy(%)Aggregate:
-
0.50%

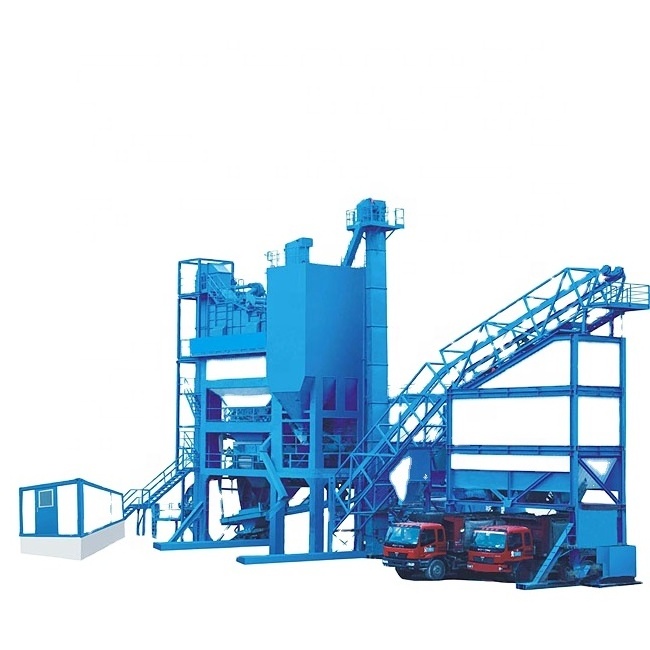

Not second hand portabl asphalt mix plant 40 ton
Technical parameters of Not second hand portabl asphalt mix plant 40 ton
RDseires
|
Modelo |
Productivity (t/h) |
Mixer capacity(kg) |
Weighing accuracy |
Power (kw) |
Oil consumption (kg/t) |
||
|
aggregate |
filler |
bitumen |
|||||
|
RD40 |
40 |
500 |
± 0.5% |
± 0.5% |
± 0.25% |
35 |
15.5-7 |
|
RD60 |
60 |
650 |
± 0.5% |
± 0.5% |
± 0.25% |
138 |
5-7 |
|
RD90 |
90 |
1000 |
± 0.5% |
± 0.5% |
± 0.25% |
225 |
5-7 |
|
RD105 |
105 |
1200 |
± 0.5% |
± 0.5% |
± 0.25% |
240 |
5-7 |
|
RD125 |
125 |
1500 |
± 0.5% |
± 0.5% |
± 0.25% |
349 |
5.5-7 |
|
RD175 |
175 |
2000 |
± 0.5% |
± 0.5% |
± 0.25% |
455 |
5.5-7 |
|
RD200 |
200 |
2500 |
± 0.5% |
± 0.5% |
± 0.25% |
552 |
5.5-7 |
|
RD240 |
240 |
3000 |
± 0.5% |
± 0.5% |
± 0.25% |
624 |
5-7 |
|
RD320 |
320 |
4000 |
± 0.5% |
± 0.5% |
± 0.25% |
782 |
5-7 |
|
RB240 |
240 |
3000 |
± 0.5% |
± 0.5% |
± 0.25% |
568 |
5-7 |
|
RB320 |
320 |
4000 |
± 0.5% |
± 0.5% |
± 0.25% |
784 |
5-7 |
|
RD400 |
400 |
5000 |
± 0.5% |
± 0.5% |
± 0.25% |
990 |
5.5-7 |
DHBseries
|
Modelo |
Productivity (t/h) |
Weighing accuracy |
Power (kw) |
Oil consumption (kg/t) |
|
|
aggregate |
bitumen |
||||
|
DHB20 |
20 |
±0.15% |
± 1% |
40 |
10 |
|
DHB40 |
40 |
±0.15% |
± 1% |
75 |
10-13 |
|
DHB60 |
60 |
±0.15% |
± 1% |
128 |
10-13 |
LD series
|
Type |
Production Capacity(t/h) |
The Weighing Accuracy(%) |
Mixer Rated Capacity |
Drying Drum (Dia× Length) |
Storage Bin Type |
The Volume Of Storage Bin( T ) |
||
|
Aggregate |
Powder |
Bitumen |
||||||
|
LB500 |
40 |
± 0.5% |
± 0.3% |
± 0.25% |
500 |
1.25× 5.3 |
Side/Down type |
40 |
|
LB1000 |
80 |
± 0.5% |
± 0.3% |
± 0.25% |
1000 |
1.55× 6.5 |
Side/Down type |
80 |
|
LB2000 |
160 |
± 0.5% |
± 0.3% |
± 0.25% |
2000 |
2.2× 8 |
Side/Down type |
150 |
|
LB3000 |
240 |
± 0.5% |
± 0.3% |
± 0.25% |
3000 |
2.5× 9.5 |
Side/Down type |
200 |
|
LB4000 |
320 |
± 0.5% |
± 0.3% |
± 0.25% |
4000 |
2.8× 11 |
Side/Down type |
200 |
|
LB5000 |
400 |
± 0.5% |
± 0.3% |
± 0.25% |
5000 |
3× 12 |
Side/Down type |
200 |
Mobile Series of Asphalt Mixing Plant
|
Model |
Capacity(t/h) |
Motor power(kw) |
The Weighing Accuracy(%) |
Way of dust filter |
Dust emission |
The type of storage |
The volume of storage(T) |
||
|
Bitumen |
Powder |
aggregate |
|||||||
|
LBY1000 |
80 |
230 |
+0.20 |
+0.25 |
+0.5 |
Bag dust filter |
≤100 |
Side-type |
60 |
|
LBY2000 |
160 |
440 |
+0.20 |
+0.25 |
+0.5 |
Bag dust filter |
≤100 |
Side-type |
100 |
Main Structure of Not second hand portabl asphalt mix plant 40 ton
1. The cold material supply system
Silos volume and quantity can be according to customer's need to be flexible matching (8 cubic, 10 cubic, 18 cubic optional, do much to 10 hopper);
Bin the split type design, can effectively decrease the size of transport and make sure the hopper volume;
Adopts the seamless ring belt, reliable service life is long, to extract the belt machine adopts flat belt to add baffle design, easy maintenance and replacement;
Adopts Siemens frequency conversion motor, stepless speed regulation, control precision, environmental protection and energy saving
2. Drying system of Not second hand portabl asphalt mix plant 40 ton
Imported ABS burner, high efficiency and energy saving, diesel oil, heavy oil, natural gas and other fuels and composite fuel burner optional (the F series burner has roller design is optimized according to my company, in order to ensure the best performance);
Drying drum of the use of special design, high heat efficiency, low heat loss;
Roller blade adopts imported Sweden HARDOX high-temperature wear-resistant steel, long service life;
The United States HONEYWELL (HONEYWELL) and ignition burner controller;
Roller ABB or SIEMENS (SIEMENS) motor drive system using and state fly (BONFIGLIOLI) speed reducer
3. The dust removal system
Using two levels of dust removal system (gravity precipitation + bag) with high and low temperature protection device to ensure the system security;
Dust bag with the United States dupont NOMEX materials;
Induced draft fan adopts frequency conversion control, can significantly reduce the starting current and more energy efficient;
Optional more efficient and reliable import FERRARI (FERRARI) induced draft fan.
4. The powder system for Not second hand portabl asphalt mix plant 40 ton
Standard lap powder tank design, easier to connect with the main system and effectively reduce cover an area of an area;
Powder tank volume and quantity can be according to customer's need to be flexible matching;
Powder conveying system adopts the crown (NORGREN pneumatic components and WAM screw conveyor.
5. Powder metering system
With smaller diameter into the weigher screw conveyor and driven by frequency conversion, can significantly improve the accuracy of powder measurement;
Powder each weighing hopper (aggregate, powder, bitumen) is equipped with three type weighing sensors, stable work, reliable performance;
A specially designed dual-axial asphalt concrete mixer, mixing arm is cross symmetric arrangement, and equipped with a replaceable surface grid mixing blades, high mixing efficiency, long service life; Using ROSSI mechanical synchronous speed reducer high speed end, simple structure, low failure rate;
6. The finished product warehouse system
Finished product storehouse layout flexibility, with a set (b) and bottom (c) two kinds of arrangement is optional;
High type mixing floor design, from the mixer discharge directly to the delivery truck, so that the finished product system malfunction or not finished product storehouse under the condition of (a) meet the needs of the work; Volume of finished goods and quantity according to user requirements also flexible matching; Adopt the new design of frequency conversion winch, compact structure, energy conservation and environmental protection.
7. Control system for Not second hand portabl asphalt mix plant 40 ton
Used by DE base, research and development with independent intellectual property rights "leap" full computer control and production management system;
Parallel redundancy control system (the system with industrial computer, touch screen and manual console 3 sets of independent system), the system has high reliability;
Visual graphics control interface, language choice, more intuitive and easy to understand, easy to operate;
Control system adopts SIEMENS (SIEMENS) or VIPA programmable logic controller, and other key components (such as frequency converter low voltage electrical appliances) USES the international well-known manufacturer brand (such as SIEMENS, panasonic, etc.).
8.asphalt heating system for Not second hand portabl asphalt mix plant 40 ton
There are horizontal and vertical asphalt tank 2 kind of decorate a form, and asphalt tank volume and quantity also can be optional according to user requirements, flexible combination;
Haomei Machinery Equipment Co.,Ltd. has nearly 50 years of mechanical manufacturing and processing history, is a limited company that was founded by restructuring of China Construction Seventh Engineering Division Machinery Factory in 2005, and its predecessor is PLA Capital Construction Engineering Corps 21st Team Repairing and Manufacturing Factory. It is a member of the Road Construction Machinery Branch of China Highway Construction Association, and the largest road construction machinery manufacturer in Central and South China, mainly engaged in research & development, manufacturing and installation services of road construction and maintenance machinery, construction machinery and energy-saving and environmental friendly products, and also in lease and repair of construction machinery. Asogalt mixing plant is among our main products.
Since change of corps into labor in 1983, the company has always kept the work style of army, implemented militarized management mode, and owned a large group of operating and management personnel and engineering technical personnel who have comprehensive technologies, dare to struggle and are good at management, now it has more than 500 employees. The company’s fixed assets are up to RMB120 million, and its cash flow is RMB180 million; it owns advanced machinery processing equipment such as Germany imported automatic cutting machine, automatic welding machine shape cutting machine tool and CNC machine tool,modern installation test site and complete after-sale service network. Its products are sole to 30 provinces, municipalities and autonomous regions in China and exported to South ease Asia, etc., gaining good social reputation.
