- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
JIANGHAO
-
Model Number:
-
JHK-100GF
-
Speed:
-
1500RPM
-
Product feature:
-
mobile power station diesel generator 100kw 125kva
-
Diesel engine:
-
Cummins
-
Alternator:
-
stamford or equal
-
Control Panel:
-
Deepsea or equal
-
Cooling system:
-
Water- cooled
-
Starting Governor:
-
Electric
-
Warranty time:
-
1 year or 1000 hours
-
Type:
-
Open/silent/mobile
-
Certificate:
-
CE/ISO9001/EPA
-
Options:
-
ATS/base fuel tank/remote control
-
Certification:
-
ce/iso
Quick Details
-
Rated Voltage:
-
220V/380V
-
Rated Current:
-
189.9
-
Frequency:
-
50HZ
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
JIANGHAO
-
Model Number:
-
JHK-100GF
-
Speed:
-
1500RPM
-
Product feature:
-
mobile power station diesel generator 100kw 125kva
-
Diesel engine:
-
Cummins
-
Alternator:
-
stamford or equal
-
Control Panel:
-
Deepsea or equal
-
Cooling system:
-
Water- cooled
-
Starting Governor:
-
Electric
-
Warranty time:
-
1 year or 1000 hours
-
Type:
-
Open/silent/mobile
-
Certificate:
-
CE/ISO9001/EPA
-
Options:
-
ATS/base fuel tank/remote control
-
Certification:
-
ce/iso

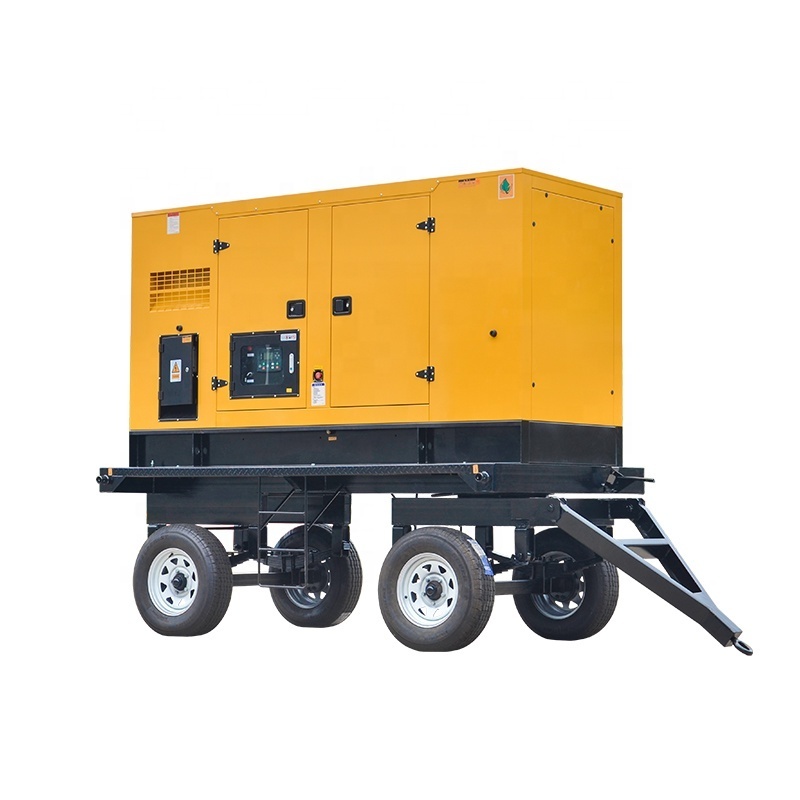

mobile power station diesel generator 100kw 125kva trailer type rainproof canopy
LCD Control Panel tection function:Low oil pressure;High temperature;Engine over and unrator over and under voltage;Generator over and under frequency.
UK DEEPSEA Czech ComAp China Smartgen
Cooling Method: Aluminum Copper Radiator or All Copper Radiator
DF Battery: High proformance,Lowest self-discharge,Longer lift span.
Battery Power-off Device:
Increase battery life span;Effectively prevent accidents in unattended situations.
Aisikai ATS,Delixi Circuit Breaker,ABB Circuit Breaker
Quality comes from details
Specifications of 100kw Genset
| Genset Model | JHK-100GF | |
| Rated Power | 100kw/125kva | |
| Rated Voltage | 380/220v(Adjustble) | |
| Rated Speed | 1500rpm | |
| Fuel Consumption | 23.5L/Hour | |
| Size of Trailer type genset(L*W*H) | 2800*1100*1500mm | |
| Weight of Trailer type genset | 2700kg | |
| Noise | 90dB |
| Engine Brand/Model | Cummins 6BTA5.9-G2 | |
| Prime Power | 106KW@50hz | |
| Standby Power | 116KW@50HZ | |
| Cylinders No. and Arrangement | 6 in L type | |
| Bore*Stroke | 102*120mm | |
| Asperation | Turbocharged | |
| Type of Injection | Direct injection | |
| Displacement | 5.9Liters | |
| Fuel Type | Diesel | |
| Start Method | DC24V Electrical Start | |
| Speed Governor | Electronic |
| Alternator Brand | Stamford Type | |
| Poles | 4 | |
| Alternator Voltage Regulation | ≤1% | |
| Exciting Mode | Self-excited | |
| Phase&Wires | 3 phase 4 wires | |
| Efficiency | 90% | |
| Protection Grade | IP23 | |
| Insulation Class | H |
Packing&Shipping
Packing: All gensets will be packed in plywood case.Making the gensets more safe during the transportation time.
Shipping: All gensets will be transported by sea or railway.
Delivery Time: Usually,it will take about 7 days to finish the gensets.
