Quick Details
-
Rated Voltage:
-
35KV
-
Tensile Strength:
-
40
-
Color:
-
Black, Green, Yellow, Red
-
Maximum Voltage:
-
1-35KV
-
Origin:
-
China
-
Application::
-
Insulators
-
Shrinkable ratio:
-
2:1
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dasheng
-
Model Number:
-
HSBT
-
Rated Voltage:
-
35KV
-
Tensile Strength:
-
40
-
Color:
-
Black, Green, Yellow, Red
-
Maximum Voltage:
-
1-35KV
-
Origin:
-
China
-
Application::
-
Insulators
-
Shrinkable ratio:
-
2:1

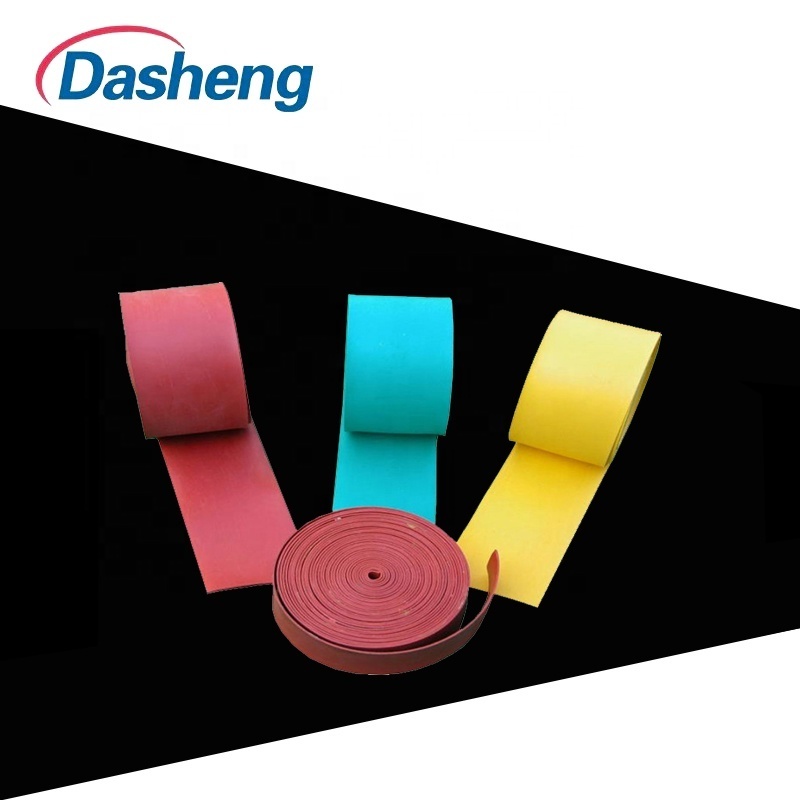

Cross-linked Heat Shrinkable Insulation tape Bus-bar tape
Cross-linked Heat shrinkable insulation tape adopts Cross-linked polyolefin and environmental friendly heat melted adhesive that can be used for insulation, waterproof and anti-corrosion purposes.
Features:
1. Partial repair of the cable protective layers suffered by mechanical and heat damage and corrosions and breakages caused by organic solvent.
2. Waterproof treatment at the ends of protective sleeves of heat shrinkable power cable joints.
3. Anti-corrosion and seal of pipes.
4. Insulation of bus bars in switchgear board and power stations.
5. Withstand temperature: -55~105 centigrade degree.
6. Shrink temperature: 100 centigrade degree.
7. Self shrink ratio: >30%.
8. Colors: Black, red, yellow and green
Dimensions
|
Model
|
Standard Width(mm)
|
Standard Thickness(mm)
|
Standard Package(m)
|
|
0825
|
25
|
0.8±0.1
|
5 or 10
|
|
0850
|
50
|
0.8±0.1
|
5 or 10
|
|
0875
|
75
|
0.8±0.1
|
5 or 10
|
|
08100
|
100
|
0.8±0.1
|
5 or 10
|
|
1025
|
25
|
1.0±0.1
|
5 or 10
|
|
1050
|
50
|
1.0±0.1
|
5 or 10
|
|
1075
|
75
|
1.0±0.1
|
5 or 10
|
|
10100
|
100
|
1.0±0.1
|
5 or 10
|
