Quick Details
-
Product name:
-
Solar junction box
-
Size:
-
52*40*11.5mm
-
Rated Voltage:
-
1000VDC
-
Rated Current:
-
3-5.5A
-
Working Temperature Range:
-
-40℃~+85℃
-
IP Grade:
-
IP64
-
Safety Class:
-
Class II
-
Insulation Material:
-
PPO
-
OEM&DOM:
-
Acceptable
-
Packing:
-
Carton
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Solar Point
-
Model Number:
-
SP-LH0803
-
Product name:
-
Solar junction box
-
Size:
-
52*40*11.5mm
-
Rated Voltage:
-
1000VDC
-
Rated Current:
-
3-5.5A
-
Working Temperature Range:
-
-40℃~+85℃
-
IP Grade:
-
IP64
-
Safety Class:
-
Class II
-
Insulation Material:
-
PPO
-
OEM&DOM:
-
Acceptable
-
Packing:
-
Carton
OEM&ODM Services
Specification
|
Overall Dimension
|
52*40*11.5mm
|
|
|
Rated Voltage
|
1000VDC
|
|
|
Rated Current
|
3~5.5A
|
|
|
Power
|
10-30W
|
|
|
Working Temperature Range
|
-40℃～+85℃
|
|
|
Safety Class
|
Class II
|
|
|
IP Grade
|
IP64
|
|
|
Cable Range
|
2*0.5-0.75mm²
|
|
|
Contact Material
|
Copper Tin-plated or Iron Tin-plated
|
|
|
Ribbon Connection Method
|
Soldering
|
|
|
Insulation Material
|
PPO or ABS
|
|
|
Flame class
|
UL94-V0 (ABS)
|
|
|
Diode Model
|
IN5408, 6A10, 10A10, 12SQ045, 15SQ045(D0-27)
Selection by customer
|
|
|
Optional Connector
|
MC 4 compatible
|
|
|
The rated current will be changed when the box is fixed with different types of diode.
|
|
|
Products Description

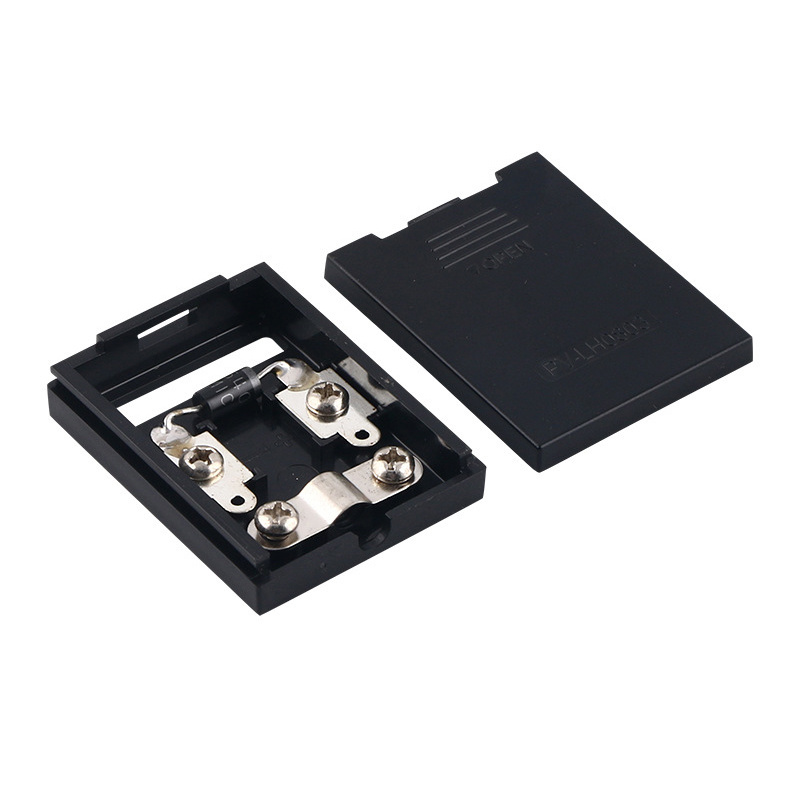

LH0803
Main characteristic
●
Insulating materials have anti-aging capability.
●
The cable is connected by welding.
●
The ribbon bands are connected by welding.
●
The rated current will be changed when the box is fixed with different types of diode.
●
Installation and maintenance are more convenient.
