Quick Details
-
Brand Name:
-
Cell Instruments
-
Model Number:
-
MCT-01
-
Brand:
-
Cell Instruments
-
test samples:
-
bottle cap, closures, vials cap
-
Force range:
-
10Nm or as required
-
Display:
-
HMI touch screen
-
data output:
-
microprinter or PC software
-
Model:
-
MCT-01
-
Test voltage:
-
110~220V AC
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Cell Instruments
-
Model Number:
-
MCT-01
-
Brand:
-
Cell Instruments
-
test samples:
-
bottle cap, closures, vials cap
-
Force range:
-
10Nm or as required
-
Display:
-
HMI touch screen
-
data output:
-
microprinter or PC software
-
Model:
-
MCT-01
-
Test voltage:
-
110~220V AC
Product Description

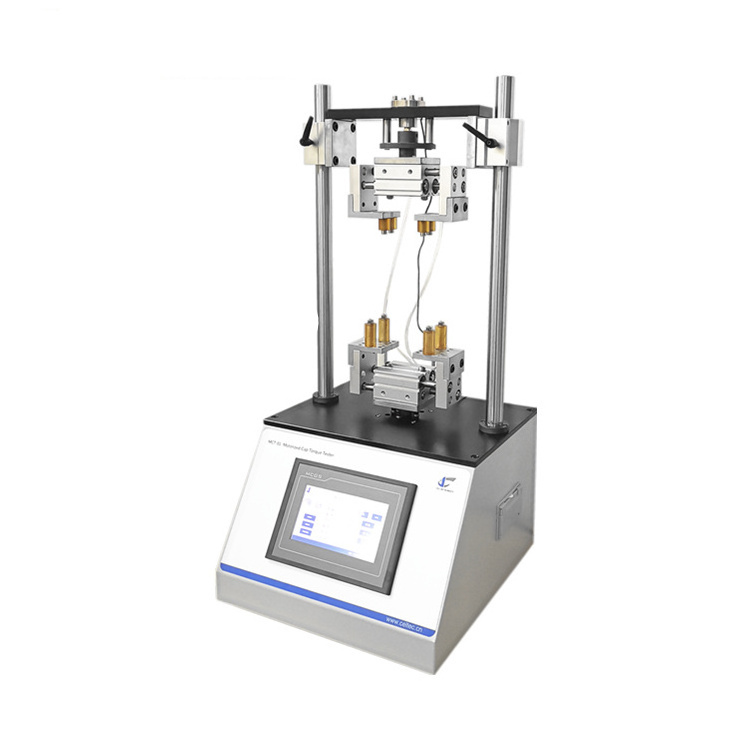

Bottle cap torque strength tester measures the open force and lock force of the caps of medicine bottles, PET bottles, spout bags and flexible tube packages.
The torque test can determine the proper lock and open force of caps in production and thus guide the transportation and
consumption process.
The torque test can determine the proper lock and open force of caps in production and thus guide the transportation and
consumption process.
|
Test Range
|
10 Nm or others
|
|
Clamp range
|
15mm-140mm
|
|
Speed
|
0.01～15RPM
|
|
Resolution
|
1% FS
|
|
Power
|
110~220V
|
|
Control
|
PLC and HMI touch screen
|
Detailed Images
Features
* Both locking & opening force can be measured
* Test parameter and data storage
* Upper and lower dual pneumatic clamping
* Automatic rotating
* Micro-printer
* RS232 port and professional software (optional)
Torque tester standards
ASTM D2063, ASTM D3198, ASTM D3474
Related Products
Packing&Shipping
export plywood carton, eva protection material, wrapping film for a safe travelling of machine
