Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
Warm White , Cool White
-
Application:
-
industry, Ceiling
-
Input Voltage(V):
-
120V
-
Lamp Luminous Flux(lm):
-
3600
-
Model Number:
-
A6-LPIA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Liteharbor
-
Item Type:
-
Downlights
-
Categories:
-
LED Downlights
-
Series:
-
IC Airtight COB LED Potlight
-
Size:
-
6 inch
-
CCT:
-
3000K - 6500K
-
Features:
-
Slope
-
Construction:
-
New Construction
-
IC Type:
-
IC Airtight
-
Certification:
-
ETL
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Surface Mounted
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
Warm White , Cool White
-
Application:
-
industry, Ceiling
-
Input Voltage(V):
-
120V
-
Lamp Luminous Flux(lm):
-
3600
-
Model Number:
-
A6-LPIA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Liteharbor
-
Item Type:
-
Downlights
-
Categories:
-
LED Downlights
-
Series:
-
IC Airtight COB LED Potlight
-
Size:
-
6 inch
-
CCT:
-
3000K - 6500K
-
Features:
-
Slope
-
Construction:
-
New Construction
-
IC Type:
-
IC Airtight
-
Certification:
-
ETL
Slope 6" Aluminum New Construction IC Airtight COB LED Potlight
| ITEM | CONTENT/OPTION |
| BRAND NAME | LITEHARBOR |
| CERTIFICATION | ETL / UL / CE / RoHS / Energy Star |
| LAMP | LED / INCANDESCENT / FLUORESCENT / HID |
| CRI> | 75%+ / 80%+ / 82%+ |
| POWER FACTOR / PF> | 0.9+ / 0.95+ / 0.99+ |
| CCT(K) | 2700K/2800K-6500K/7000K |
| COLOR TEMPERATERE(WHITE) | COOL/ PURE/ NATURAL/ WARM WHITE |
| JUNCTION-BOX | 4 IN-4 OUT / 2 IN-2 OUT |
| LONGLIFE | 50000 HOURS / 30000 HOURS |
| WARRANTY | 5 YEARS / 3 YEARS |
| SUPPLIER OF COUNTRY | CHINA |
| ORIGIN | MADE IN FOSHAN CHINA |
Slope 6" Aluminum New Construction IC Airtight COB LED Potlight
ITEM No.:A6-LPIA
Product Series: Recessed Downlight Housing
Features: Slope
Size: 6 Inch
Source: COB
Power: 45W
ODM & OEM: Acceptable
Slope 6" Aluminum New Construction IC Airtight COB LED Potlight

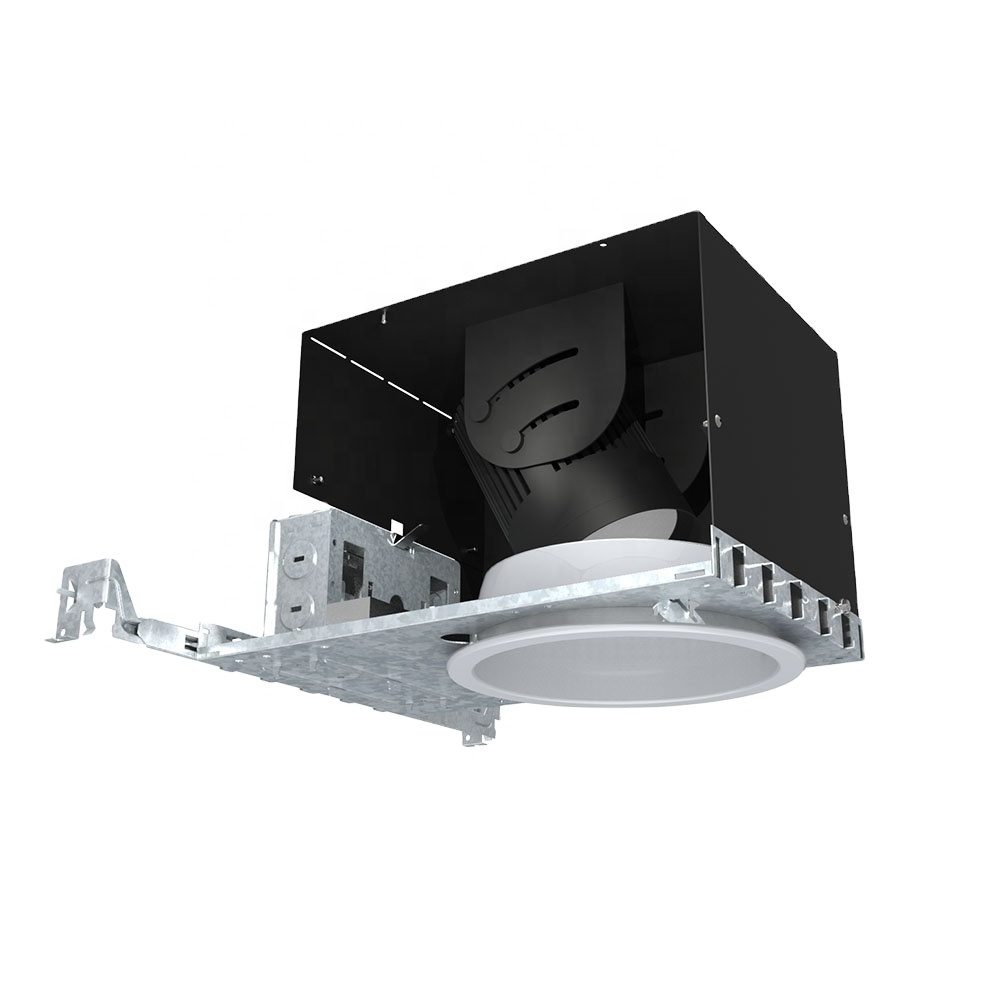

6 Inch New Construction IC Airtight Housing
Housing
1) Die-formed aluminum for maximum heat dissipation and rust
protection
2) Designed for New Construction installation
3) Housing can be installed in 1/2" to 1-3/8" thick ceilings.
Hanger Bar
1) Allow housing to be positioned and locked at any point within
a 24" joist span.
2) Can be shortened for 12" joists
3) Can be positioned on long or short axis of the housing
4) Contain integral nail
5) Hanger fit onto T-bar spline for quick alignment
Junction Box
1) ETL listed for through branch wiring
2) 4 in-4 out J-box
3) Designed for straight through conduit runs
4) 1/2" and 3/4" romex wiring knockouts
Lamp & Socket
See Trim for max. wattage and lamp
COB LED 45W
Lumens: 2250LM-3600LM
CRI>80%
PF>0.9
Color Temperature:3000K-6500K
Listing
ETL listed for damp location W/Feed through
Other Special requirement please confirm with factory
