- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
UPE001
-
Thickness:
-
6-300MM
-
Size:
-
1220x2440mm
-
Color:
-
white,black,green,yellow,and so on.
-
Shape:
-
square,round,and so on.
-
Density:
-
0.93-0.96
-
Molecular weight:
-
3million-9million
-
Shore D hardness:
-
65-70
-
Water Absorption:
-
NIL
-
Temperature resistance:
-
-269 to +85
-
Breaking strength:
-
42
-
Tensile strength (23°C in air):
-
22
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYHX
-
Model Number:
-
UPE001
-
Thickness:
-
6-300MM
-
Size:
-
1220x2440mm
-
Color:
-
white,black,green,yellow,and so on.
-
Shape:
-
square,round,and so on.
-
Density:
-
0.93-0.96
-
Molecular weight:
-
3million-9million
-
Shore D hardness:
-
65-70
-
Water Absorption:
-
NIL
-
Temperature resistance:
-
-269 to +85
-
Breaking strength:
-
42
-
Tensile strength (23°C in air):
-
22

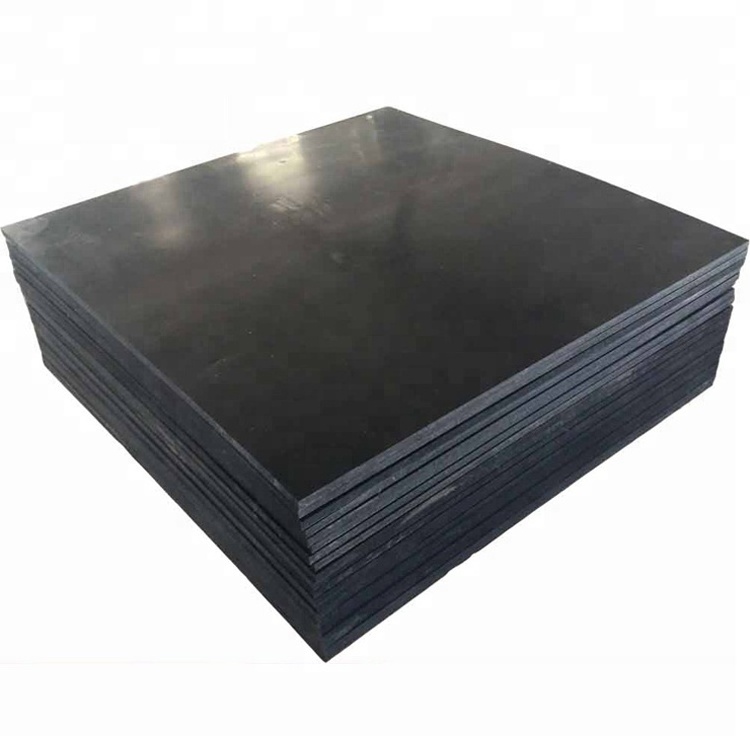

HDPE sheet/panel/board/plate manufacturer/high density polyethylene plastic sheet (HDPE)
UHMWPE (Ultra High Molecular Weight Polyethylene). This is a polymer with a molecular weight of 3 and 6 million.UHMWPE has outstanding abrasion resistance, low coefficient of friction, selflubricating, chemical and stress cracking resistance. Another key characteristic is impact strength, which is 8 times greater than HDPE. UHMWPE does not break in impact tests using standard notched specimens compared to HDPE, which will break. UHMWPE must be double notched to break in a Izod impact test. In a ballistics test conducted at -65°F, a 1” slab of UHMWPE stopped a .45 caliber bullet at a distance of only 25 ft!
sale uhmwpe plastic hdpe sheet boards Performance Characteristics/Properties/Benefits:
|
1. Outstanding impact strength |
|
2. Excellent abrasion resistance |
|
3. Low co-efficient of friction |
|
4. Superior anti-stick properties |
|
5. Good chemical resistance |
|
6. Excellent UV resistance |
|
7. Good machining properties |
|
8. Minimal water absorption |
|
9. Good chemical and corrosion resistance |
|
10. Good wear properties |
|
11. Good electrical resistance |
|
12. High mechanical strength and toughness |
|
13. Excellent fatigue and wear resistance |
|
14. High flexibility and toughness |
|
15. B&R + F-D-A approved |
|
16. No sticking or caking of bulk materials |
|
17. Non-stick surface |
-
sale uhmwpe plastic hdpe sheet boards Size Available:
|
Dimensions: |
Typical Thickness: |
|
3000mm*1000mm |
5mm-250mm |
|
3000mm*1500mm |
|
|
2000mm*4000mm |
|
|
4000mm*1200mm |
|
|
2200*10000MM |
Note:If there are different colors or length or special size requirement,we can offer customization.
-
sale uhmwpe plastic hdpe sheet boards FIELD OF APPLICATION
1. Lining: Silos, hoppers, wearresistant plates, brackets, chute like reflux devices, sliding surface, roller, etc
2. Food Machinery: Guard rail, star wheels, guide gear, roller wheels, bearing lining tile, etc.
3. Paper-making machine: Water lid plate, deflector plate, wiper plate, hydrofoils.
4. Chemical industry: Seal filling plate, fill in dense material, the vacuum mold boxes, pump parts, bearing Lining tile, gears, sealing joint surface.
5. Other: Agricultural machinery, ship parts, electroplating industry, extreme low temperature mechanical components.
