Brackets for installation on towers
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Color Rendering Index(Ra):
-
85
-
Input Voltage(V):
-
3.7~220V
-
Lamp Luminous Flux(lm):
-
300
-
Lamp Luminous Efficiency(lm/w):
-
130
-
CRI (Ra):
-
85
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ESONSIGNAL
-
LED color:
-
RED/GREEN/WHITE/YELLOW/BLUE
-
Effective intensity:
-
40cd&Visibility 3-4NM
-
Latitude range:
-
35°S to 35°N
-
Vertical divergence:
-
±7.5°
-
Light control threshold:
-
60/100Lux
-
LED lifespan:
-
>100,000 Hours
-
Temperature range:
-
-40℃ ~ +80℃(-40℉ ~176℉)
-
Water-proof:
-
IP68
-
Switch:
-
Stainless steel/ touch switch
-
Lens:
-
Fresnel lens
-
Certification:
-
ce
-
Luminous Efficacy(lm/w):
-
150
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
Red/White
-
Lamp Body Material:
-
Aluminum
-
Light Source:
-
LED
-
Color Rendering Index(Ra):
-
85
-
Input Voltage(V):
-
3.7~220V
-
Lamp Luminous Flux(lm):
-
300
-
Lamp Luminous Efficiency(lm/w):
-
130
-
CRI (Ra):
-
85
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ESONSIGNAL
-
LED color:
-
RED/GREEN/WHITE/YELLOW/BLUE
-
Effective intensity:
-
40cd&Visibility 3-4NM
-
Latitude range:
-
35°S to 35°N
-
Vertical divergence:
-
±7.5°
-
Light control threshold:
-
60/100Lux
-
LED lifespan:
-
>100,000 Hours
-
Temperature range:
-
-40℃ ~ +80℃(-40℉ ~176℉)
-
Water-proof:
-
IP68
-
Switch:
-
Stainless steel/ touch switch
-
Lens:
-
Fresnel lens
-
Certification:
-
ce
-
Luminous Efficacy(lm/w):
-
150
Products Description

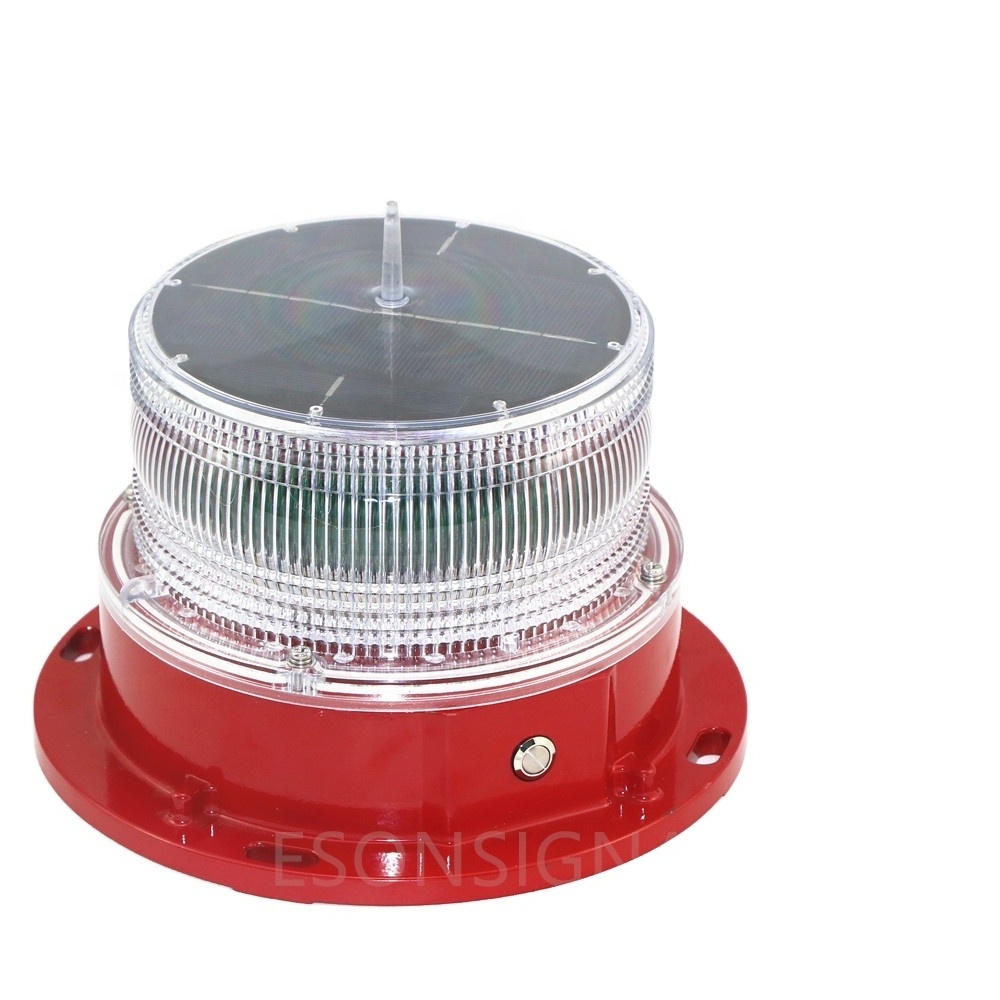

RED Solar Aviation
Obstruction Lights
AFS1803 takes advantage of the latest technical developments in optics and increased output. Self-contained, reliability and durability, it has become a perfect model for aviation obstruction areas. No specialized work crews required and lights are immediately operational with 10 years service life.
It complies with FAA&ICAO's requirements.
Features
Lamp housing-Polycarbonate with UV and shock resistance
Built in Lithium battery and easy for replacement
5 colors for selection: Red, Green, White, Yellow, Blue
Easily customized including GPS synchronization and monitoring
Completely self-contained and waterproof IP68
Turns on at dark and off at dawn automatically
Details Images
FIVE COLORS FOR SELECTION
SIZE (mm)
|
LIGHT OUTPUT
|
AFS1803S
|
AFS1803F
|
|
|
Effective Intensity
|
32.5cd
|
350cd
|
|
|
Minimum Autonomy
|
250hours
|
200hours
|
|
|
Vertical Divergence
|
±7.5° at 50% intensity
|
|
|
|
Horizontal
|
360 Degree
|
|
|
|
LED color
|
RED
|
|
|
|
Latitude Range
|
55°S to 55°N
|
|
|
|
LED lifespan
|
100,000 Hours
|
|
|
|
Flash Pattern
|
Steady on
|
Flashing
|
|
|
Solar Panel
|
2Watts mono-crystalline 18% efficiency
|
|
|
|
Storage battery
|
Replaceable Lithium battery 3.7V8.8Ah
|
|
|
|
Lens
|
Polycarbonate, anti-UV and shock resistance
|
|
|
|
Water-proof
|
IP68
|
|
|
|
Temperature Range
|
-40C˚ ~ +80C˚
|
|
|
|
Weight
|
1.8kg
|
|
|
|
Optional
|
Available in flashing pattern(40FPM)/ GPS synchronization
|
|
|
Product packaging
