Quick Details
-
Rated Voltage:
-
40KV
-
Tensile Strength:
-
490mpa
-
Color:
-
Black, yellow, aqua green
-
Certification:
-
ROHS SGS ISO MSDS
-
Thickness:
-
0.1-100mm
-
Customize:
-
Yes
-
Inflaming Retardancy Grade:
-
94V0
-
Dimension:
-
customized
-
Name:
-
fiberglass epoxy resin fr4 g10 rod
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Honglei
-
Model Number:
-
FR-4 g10
-
Rated Voltage:
-
40KV
-
Tensile Strength:
-
490mpa
-
Color:
-
Black, yellow, aqua green
-
Certification:
-
ROHS SGS ISO MSDS
-
Thickness:
-
0.1-100mm
-
Customize:
-
Yes
-
Inflaming Retardancy Grade:
-
94V0
-
Dimension:
-
customized
-
Name:
-
fiberglass epoxy resin fr4 g10 rod

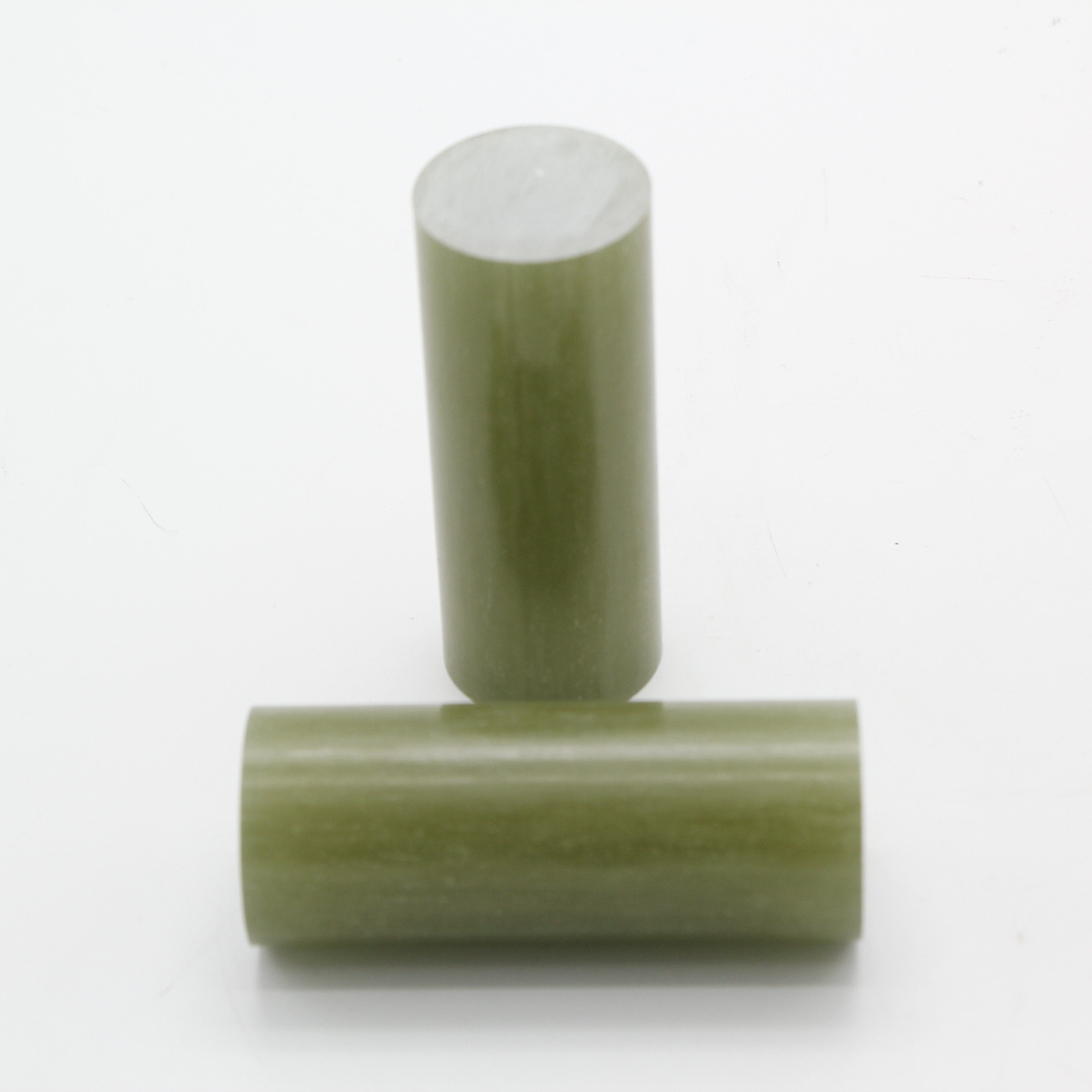

fiberglass epoxy resin fr4 g10 rod and tube
Raw material production
♦ The fiberglass board is made of glass fiber cloth and epoxy resin under high heat resistance composite material
♦Prepreg is pressed into various thicknesses under high temperature and high pressure
Characteristics
♦It has high mechanical and dielectric properties
♦G ood heat resistance,can work continuously at 170 degrees
♦Waterproof,very low water absorption
♦Flame retardant,can automatically extinguish
Applicaton
♦ Used for Star gear,plastic mould, injection mould, mechanical manufacture, forming machine, drilling machine
♦ injection machine, motor, pcb,ICT fixture, table grinding pad.
Product datasheet
|
Items |
Test Method |
Unit |
Values |
|
|
Flame retardant grade |
A |
-- |
94V0 |
|
|
Flame resistance |
C-96/20/65 |
℃ |
170-180 |
|
|
Withstand voltage |
through |
C-96/20/65 (in25℃ oil) |
KV/mm |
18 |
|
across |
12 |
|||
|
Arc resistance |
C-96/20/65 |
S |
60-80 |
|
|
Rate of induced electric |
C-96/20/65 +D-48/50 |
(IMHZ) |
4.0-5.0 |
|
|
Induced electricity on |
C-96/20/65 +D-48/50 |
(IMHZ) |
0.03-0.04 |
|
|
Bulk resistivity |
C-96/20/65 C-96/40/90 |
Ω-cm |
5*1011-5*1011 |
|
|
Surface resistivity |
C-96/20/65 C-96/40/90 |
Ω |
5*1011-5*1012 |
|
|
Insulation resistance |
C-96/20/65 +D-2/100 |
Ω |
1012-1013 |
|
|
compression strength |
vertical |
A |
Kg/mm2 |
29-34 |
|
parallel |
19-24 |
|||
|
bending strength |
A |
Kg/mm2 |
40-50 |
|
|
impact strength |
A |
kJ/m2 |
45-55 |
|
|
Split probability |
A |
Kg |
850-1000 |
|
|
Bibulous rate |
E-24/50 +D-24/23 |
% |
0.07-0.12 |
|
