LE1-D Magnetic Motor Starter

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Electricity Type:: AC

Number of Pole:: 3

Phase:: 3

Main Circuit Rating Voltage:: 380V

Main Circuit Rating Current:: 9-95A

Quick Details

Brand Name:: WINSTON/OEM

Place of Origin:: Zhejiang, China

Model Number:: LE1-D25

Electricity Type:: AC

Number of Pole:: 3

Phase:: 3

Main Circuit Rating Voltage:: 380V

Main Circuit Rating Current:: 9-95A

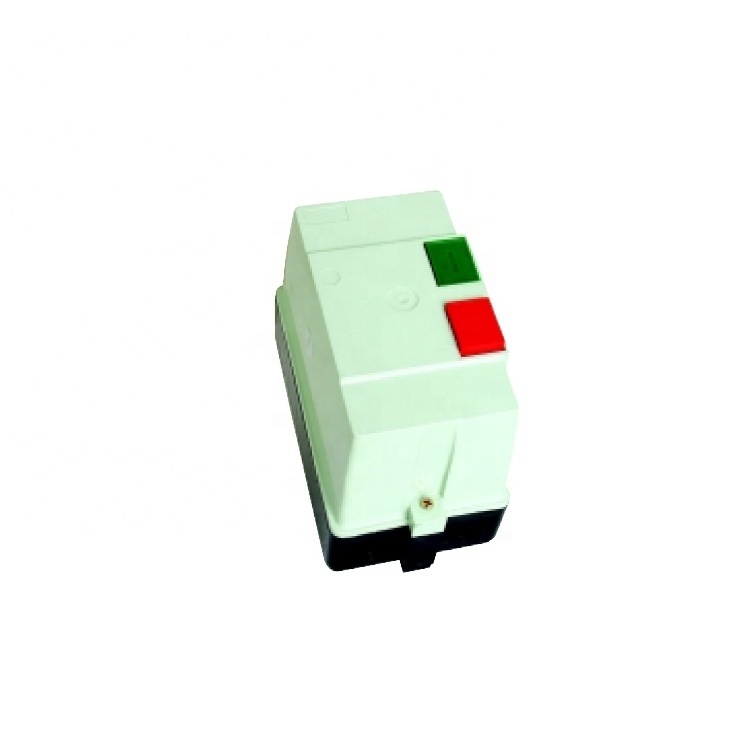

LE1-D Magnetic motor Starter

We can supply series magnetic starter.

LE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.

LE1-D09,12,18

LE1-D25,32

LE1-D40,50,65

LE1-D80,95

Maximum power AC3 duty(KW)						Rated current(A)	Type of enclosure	Code number		Suitable thermal relay (A)
220V 230V	380V 400V	415V	440V	500V	660V 690V	Rated current(A)	Type of enclosure	LL (long life)	NL(3) (normal life)	Suitable thermal relay (A)
2.2	4	4	4	5.5	5.5	9	IP42 IP65	LE1-N094.. LE1-N093..	- -	LR2-D1312 LR2-D1314
3	5.5	5.5	5.5	7.5	7.5	12	IP42 IP55	LE1-N124.. LE1-N123..	LE1-N094.. LE1-N093..	LR2-D1316
4	7.5	9	9	10	10	18	IP42 IP55	LE1-N188.. LE1-N185..	LE1-N124.. LE1-N123..	LR2-D1321
5.5	11	11	11	5	15	25	IP42 IP55	LE1-N258.. LE1-N255..	LE1-N188.. LE1-N185..	LR2-D1322 LR2-D2353
7.5	15	15	15	18.5	18.5	32	IP55	LE1-N325..	LE1-N255..	LR2-D2355
11	18.5	22	22	22	30	40	IP55	LE1-N405..	LE1-N325..	LR2-D3353 LR2-D3355
15	22	25	30	30	3	50	IP55	LE1-N505..	LE1-N405..	LR2-D3357 LR2-D3359
18.5	30	37	37	37	37	65	IP55	LE1-N655..	LE1-N505..	LR2-D3361
22	37	45	45	55	45	80	IP55	LE1-N805..	LE1-N605..	LR2-D3363 LR2-D3365
25	45	45	45	55	45	95	IP55	LE1-N955..	LE1-N805..	LR2-D3365
