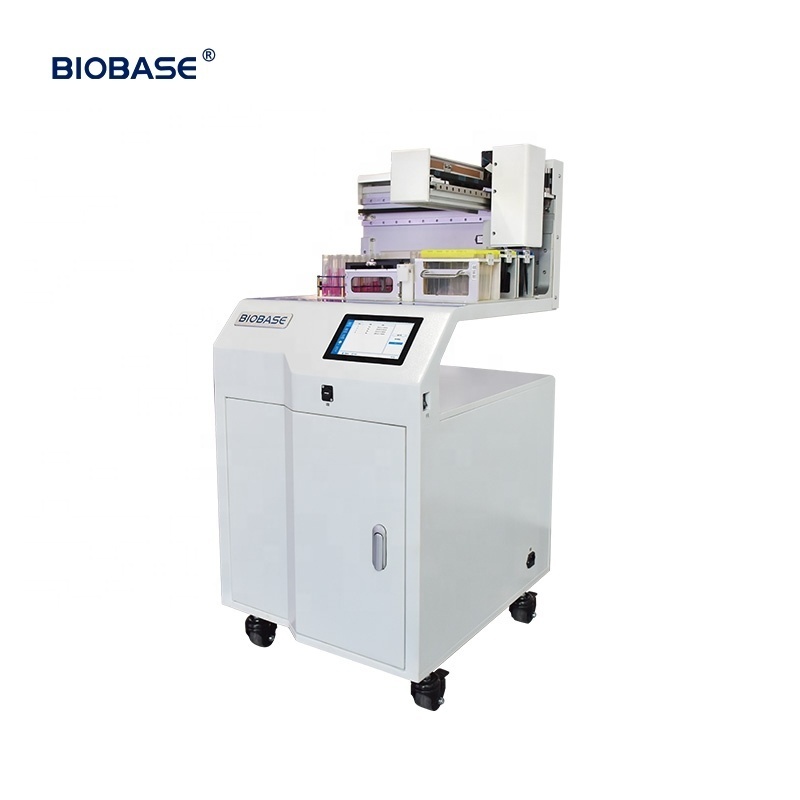

BIOBASE Automated Sample Processing System
:
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BK-PR32
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Automated Sample Processing System
-
Model:
-
BK-PR32
-
Throughput:
-
1-32
-
Processing Time:
-
32 samples/10min
-
Sample Type:
-
Plasma, serum, whole blood, solution and other samples
-
Power Supply:
-
220V,50/60HZ;110V,60HZ
-
External Size (W*D*H):
-
827*794*1223mm
-
Net Weight:
-
100kg
-
Package Size (W*D*H):
-
670*810*1314mm
-
Gross Weight:
-
76kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-PR32
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Automated Sample Processing System
-
Model:
-
BK-PR32
-
Throughput:
-
1-32
-
Processing Time:
-
32 samples/10min
-
Sample Type:
-
Plasma, serum, whole blood, solution and other samples
-
Power Supply:
-
220V,50/60HZ;110V,60HZ
-
External Size (W*D*H):
-
827*794*1223mm
-
Net Weight:
-
100kg
-
Package Size (W*D*H):
-
670*810*1314mm
-
Gross Weight:
-
76kg
Product Description
Introduction:
Features：
Could complete lid opening/closing,dispensing, proteinase K/internal control addition, it only takes 16 minutes to transfer 32/48 samples at one time, which helps laboratories quickly improve their large-scale nucleic acid detection capabilities.
Product Specification
Technical Parameter
|
Model
|
BK-PR32
|
|
Throughput
|
1-32
|
|
Processing Time
|
32 samples/10min
|
|
Sample Type
|
Plasma, serum, whole blood, solution and other samples
|
|
Sample Rack
|
1Pcs, 6*8 with locking device (compatible with a variety of sampling tubes)
|
|
Robot Arm
|
2pcs（Dispensation arm and Screw cap arm）
|
|
Plate Position
|
3 pcs（Compatible with multi-specification deep-well plates）
|
|
Tip Position
|
3 pcs（Including tip waste box position）
|
|
Reagent Rack
|
1 pcs (4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube)
|
|
Protective Function |
Can be used in a biological safety cabinet
|
|
|
External droplet catch tray design
|
|
|
With air-tight and anti-drip design
|
|
Liquid Detection
|
liquid level detection principle, intelligent detection of blocked needle
|
|
Pipetting Volume
|
5-1000μl（1000/50μl）
|
|
Pipetting Accuracy
|
10μl, CV≤1.5%, Accuracy≤6.0%, 50μlTip
|
|
|
50μl, CV≤1.0%, Accuracy≤2.0%, 1000μlTip
|
|
|
100μl, CV≤0.5%,Accuracy≤2.0%,1000μlTip
|
|
Power Supply
|
220V,50/60HZ;110V,60HZ
|
|
External Size (W*D*H)
|
827*794*1223mm
|
|
Net Weight
|
100kg
|
|
Package Size (W*D*H)
|
670*810*1314mm;
|
|
Gross Weight
|
76kg
|
